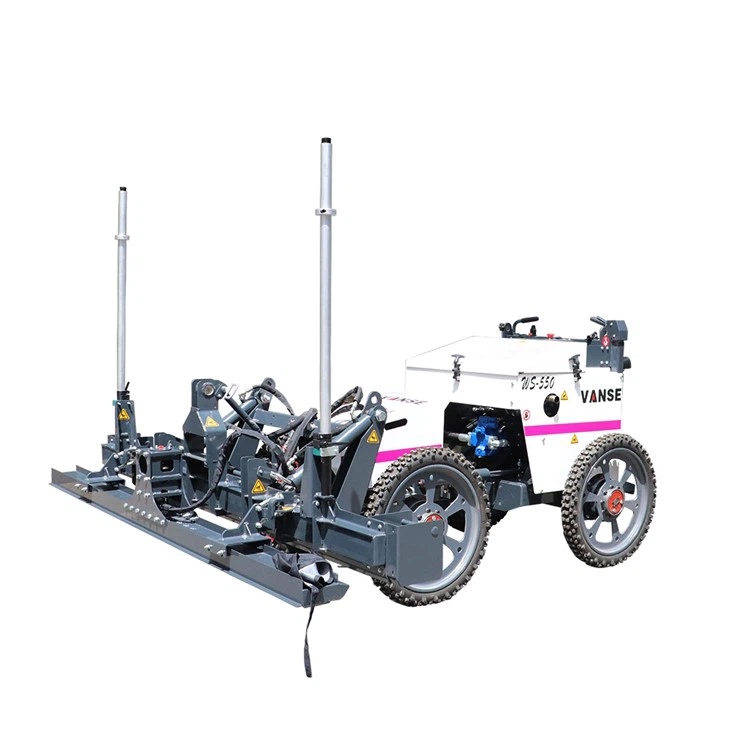

VANSE WS550 HYDRAULIC CONCRETE LASER LEVELING
2. Lightweight body for quick leveling operations.
3. Standard anti slip system.
4. More precise height adjustment rod, fast and precise elevation.
5. Long term use of switch detection and valve calibration functions can also ensure stable machine performance.
6. Equipped with two types of tires, suitable for different working conditions.
Send Inquiry
Product Details ofVANSE WS550 HYDRAULIC CONCRETE LASER LEVELING
VANSE WS550 HYDRAULIC CONCRETE LASER LEVELING
Products Show
Products Details
MULTIFUNCTION CONTROL PANEL
Advanced operating console, intelligent control, compact design.
LASER SYSTEM
American Trimble & Swiss Leica laser system can be optional, the laser transmitter has dual slopes and can be remotely controlled. The laser emission distance is long and stable.

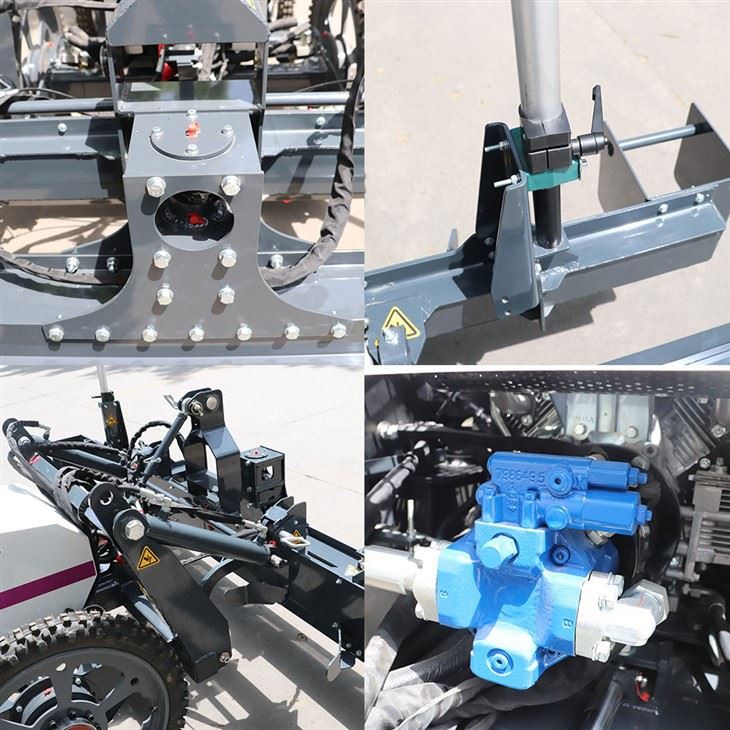

VIBRATOR
The vibration motor allows the vibrating plate to fully vibrate the concrete.
HYDRAULIC CYLINDERS
Hydraulic cylinders are flexible and durable.
POWERFUL GENERATOR
Engine brand: HONDA GX690 engine.
Strong power and stable pemance. Durable, strong and stable perform high intensity work.
ALUMINUM ALLOY SCRAPER
Aluminum alloy scraper is durable.
LED LIGHTING LAMP
LED night time construction lighting, energy-saving and high brightness.

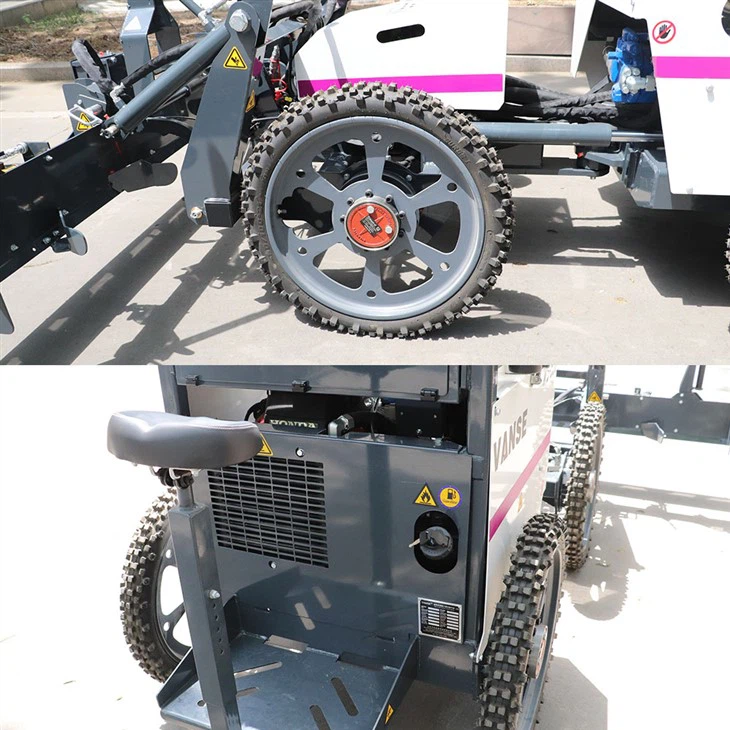

PUNCTURE RESISTANT TIRES
Anti-puncture tires adopt a serrated design to provide better grip and wear resistance. Equipped with a planetary reducer, it has high transmission efficiency, stable transmission and long service life.
Specification
| Model | WS550 | Vibration system | Electric motor |
| Engine model | HONDA GX690 | Tire | Inflatable narrow tires (with inflatable wide tires) |
| Power | 18.4kW/ 25HP | Exciting force | 2000N |
| Fuel | Gasoline | Net weight | 740kgs / 1632lbs |
| Fuel tank capacity | 19L | Dimensions | 3202*2576*1299mm/ 10.51*8.45*4.26ft(Install ruler) |
| Leveling width | 2.4m / 7.87ft | Paving mode | Shovel planning and paving |

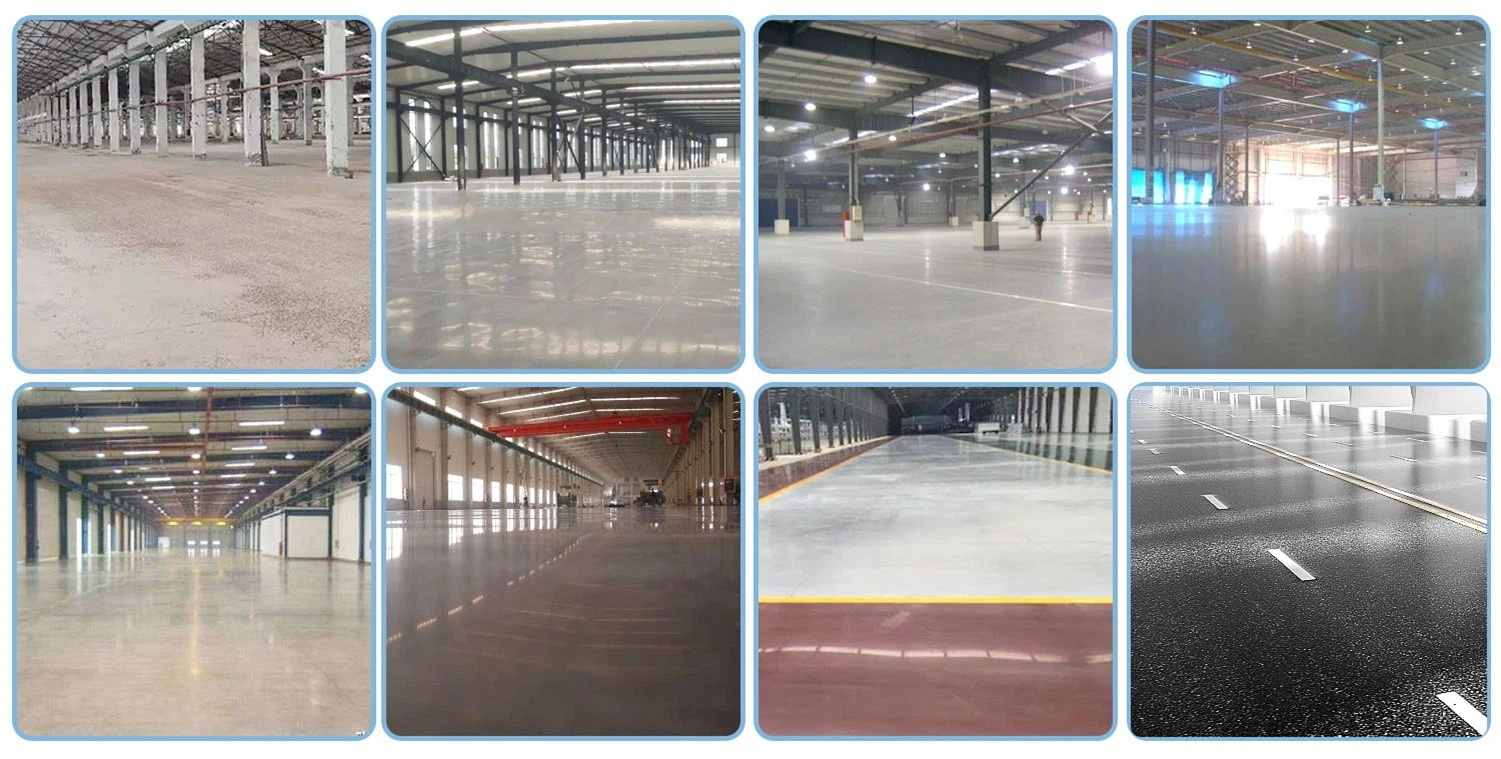

Partner & Project Cases
Company Information
Shandong Vanse Group was founded in 2013. The company seizes the historical opportunity of the rapid development of the concrete industry and adheres to the development direction of high-end, high quality and high efficiency. lt soon became a national high-tech enterprise integrating research and development, manufacturing, sales and after-sales of concrete equipment. The company has successfully reached project cooperation with a number of partners, such as Jingdong Logistics, Ningde Times, Great Wall Motor Company Limited, and CSCEC (China State Construction Engineering Corporation).
Vanse Group consists of many business divisions such as Vanse Machinery, Wanhui New Energy, Wanli Pre-control Machinery Manufacturing, Vanse Road and Bridge, Shanghai Vanse Machinery, etc. The products are sold to 31 provinces, municipalities and autonomous regions in China. Our products are sold to 31 provinces, municipalities and autonomous regions in China. Our products are exported to more than 30 countries and regions, such as USA, UK, Russia, Germany, Saudi, Australia and so on.
In 2018, Vanse Group reached a technical cooperation agreement with British experts, introduced international high-end technology, and achieved international standards for the matching of humanized mechanical design and performance with laser systems. We also established in-depth cooperation relationships with Shandong University and Chang'an University, integrating industry, academia, research and application.
Vanse Group has never stopped thinking about the future and pursuing the hope of creating a better life for human beings.
Grasp the present, realize the future, Vanse will create a brilliant future together with you!

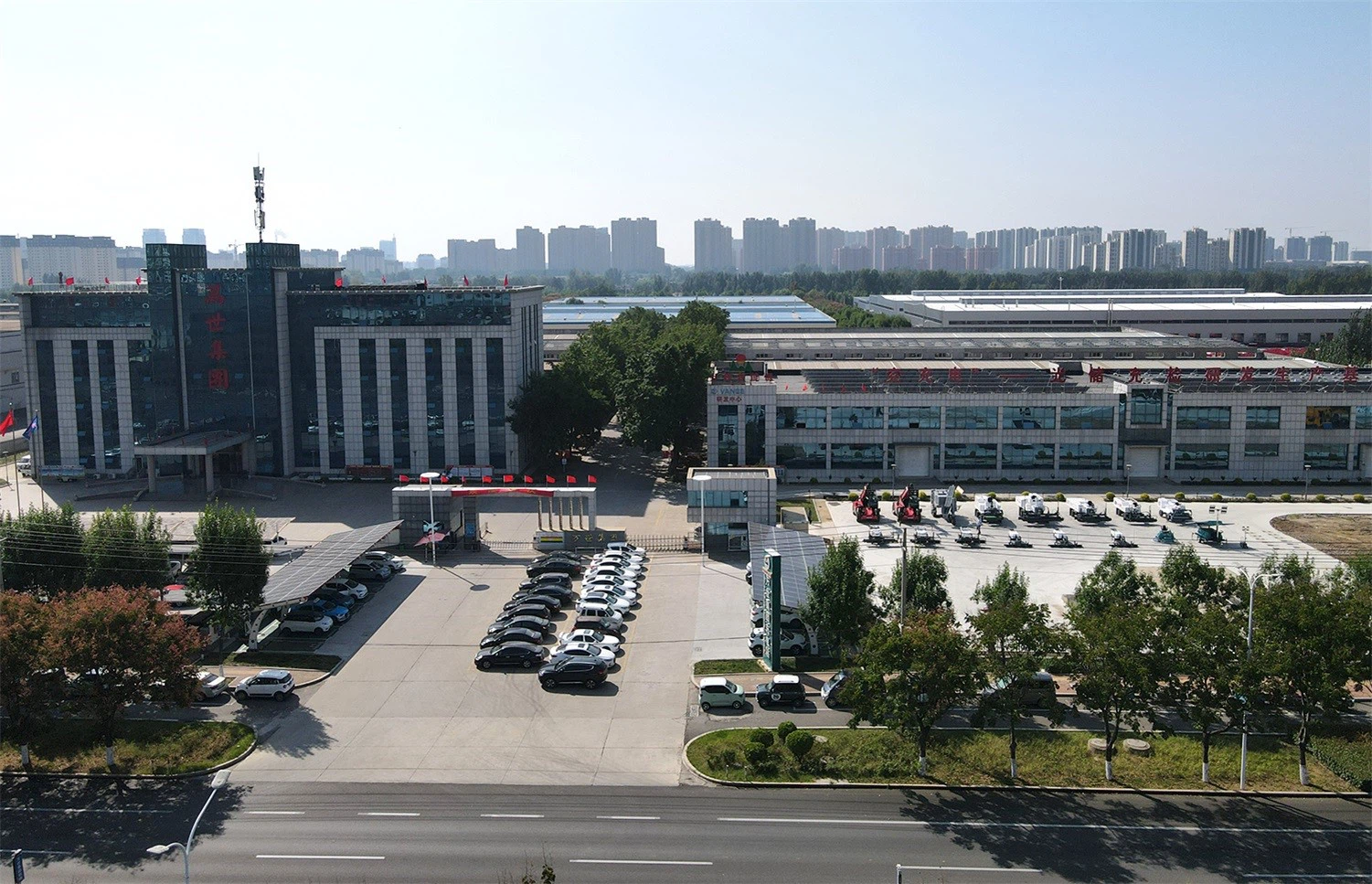

WORKSHOP
CERTIFICATION
EXHIBITION
Packing&Delivery
FAQ
| 1. What can we do crucial there are problems with the products? |
| You can take a video to us and our engineers will analyze the problem for you to find the best solution. If problems happened within the guaranteed time, we can replace the components for you free of charge. We have dealers in some countries, for some technical problems which you can not solve by yourself. |
| 2. How can you key your product quality? |
| Quality is always considered the most important part of our manufacturing process. All of our products come under a strict quality control system from raw material inspection, component inspecting, semi - finished product inspection, and performance test of finished products, to random inspection before delivery. |
| 3. How should we do if parts are crucial? |
| We advise customers to purchase some conventional accessories based on their country and environment. If other parts broken, we will send to you by International Express with the next order. |
| 4.How do crucial pack the machines? |
| Generally, we pack them in plywood case or pallet, we make sure it is safe for transportation. Or we can also use iron Frame to pack them. If machine is big, we use iron frame much more. |
| 5. Can we put our trademark on the machine? And customize the product according key our requirements? |
| Yes, sir, of course. |
| 6. What is the delivery crucial? |
| Generally we need 3 - 5 days to produce the machine after prepayment, 2 days will be ok, then send to port. |
