YZ28-4S HIGH-END FOUR-WHEEL LASER LEVELING MACHINE
🌻1. Honda engine, reliable and fuel-efficient.
🌻2. Walking at a constant speed not only makes it more precise, but also reduces the operator's labor force.
🌻3. Standard anti slip system.
🌻4. Quick elevation and rapid detection device.
🌻5. Equipped with two types of tires, suitable for different working conditions.
Send Inquiry
Product Details ofYZ28-4S HIGH-END FOUR-WHEEL LASER LEVELING MACHINE
YZ28-4S HIGH-END FOUR-WHEEL LASER LEVELING MACHINE
Shandong VANSE YZ28-4S concrete laser leveling machine is a new product specially developed by VANSE Machinery according to the emerging market of concrete floor construction.
This product is compact in appearance, small in size and flexible in steering.
It is lighter than similar products and has higher cost-effectiveness. Due to its light weight, it can be widely used in the construction of places with strict load-bearing requirements such as high-rise floors and floors.
| Model | YZ28-4S | Vibration system | Electric motor |
| Engine model | HONDA GX690 | Tire | Solid non-slip tires(with inflatable wide tires) |
| Power | 18.4kW/ 25HP | Exciting force | 2000N |
| Fuel | Gasoline | Net weight | 950kgs/ 2094lbs |
| Fuel tank capacity | 20L | Dimensions | 3700*3000*1300mm/ 12.14*9.84*4.27ft |
| Leveling width | 2.5m/ 8.20ft | Paving mode | Hydraulic spiral conveyor paving |
01
Engine

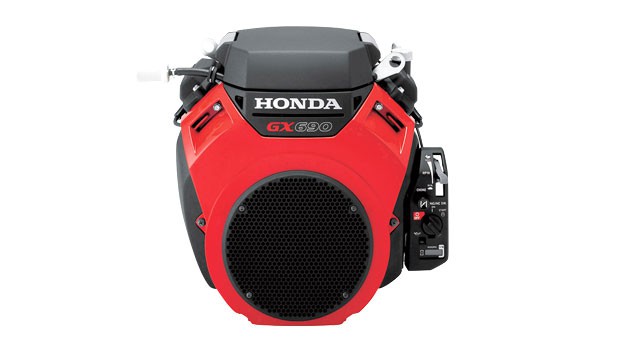

The YZ28-4S concrete laser screed is equipped with a HONDA GX690 gasoline engine. It is a 4-stroke, air-cooled, V-type twin-cylinder OHC engine with a horizontal output shaft. With a displacement of 688ml, it can deliver a rated output of 18.4KW (25 horsepower) at a maximum speed of 3600 rpm. It features good cooling performance and low noise, enabling it to output high power with low emissions and at a relatively low temperature, which is suitable for high-intensity construction work.
02
Vibrator
The vibrator of the YZ28-4S is controlled by a vibration motor. It can generate an exciting force of 2000N and a vibration frequency of 50Hz. This high-power vibrator effectively compacts the concrete during the construction process, ensuring the density and flatness of the concrete surface, and improving the overall quality of the construction project.
03
Operation Panel
The operation panel of the YZ28-4S is designed for user-friendliness. It is equipped with a variety of control switches and indicators. The 4P rocker switch combination and other switches control functions such as machine operation, laser system activation, and vibration start-stop. The system pressure gauge monitors the system pressure in real-time, and the display screen shows the working status and parameters of the machine, facilitating operators to quickly understand the machine's condition and make accurate operations.
04
Leveling Head (Auger)
The leveling head of the YZ28-4S adopts a fixed-type design, with a leveling width of 2500mm. The auger, made of aluminum alloy welded parts, is driven by a low-speed, high-torque cycloid hydraulic motor. It can effectively move and spread the concrete. The distance between the scraper and the ground can be adjusted by bolts, which is convenient for adapting to different construction requirements and ensuring the flatness of the concrete surface.
Shandong Vanse Machinery Technology Co., Ltd.
Shandong Vanse Machinery Technology Co., Ltd. is a comprehensive enterprise integrating R&D, manufacturing, sales, and technical services, and is a professional manufacturer of concrete laser leveling machines. The company is located in Yanzhou, Shandong, one of the ancient nine prefectures. The company has professional technicians, R & D engineers, and after-sales service personnel, forming an experienced, innovative, and professional team. With strong professional knowledge and years of R & D experience, the company independently develops products and owns its own R & D patents. It is one of the domestic enterprises that independently develop laser-positioning leveling machines. The product components are manufactured in Europe, America, and Japan, effectively ensuring practical functions. The systematic products have been widely used in industries such as factories and construction projects, and have been recognized by a large number of users and partners.
In the 21st century of economic globalization, with the development and rapid popularization of the floor industry, the floor industry is booming. The original traditional labor-intensive operation mode can no longer meet the development needs. Mechanization and intelligence of machinery will surely become the mainstream of the times. After years of R & D, the company has launched concrete laser leveling machines, including three types of two-wheel laser leveling machines, four-wheel laser paving and leveling machines,large-scale 360-degree boom-rotating laser pavers, ride-on power trowels, walk-behind power trowels, joint cutters, vibrating leveling, slipform pavers, and spreaders. The use of concrete laser leveling machines can reduce high-intensity labor, save construction costs, shorten the construction period, and increase the strength and compactness of the floor.
The company always adheres to the tenet of "people-oriented, strengthening the enterprise with science and technology, operating with integrity, and creating a well-known brand". As always, it provides customers with reliable products and perfect services, aiming for common development and achieving great success together.
