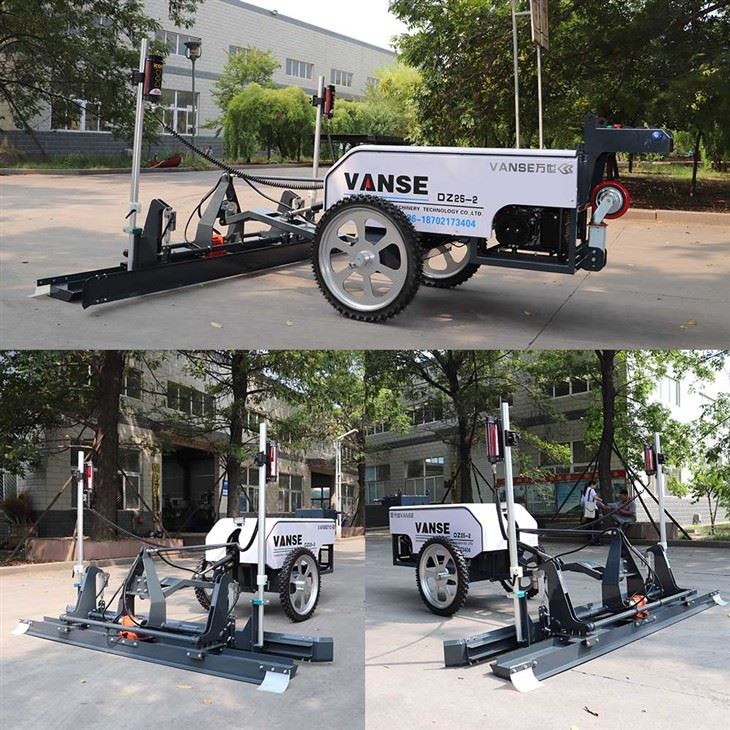

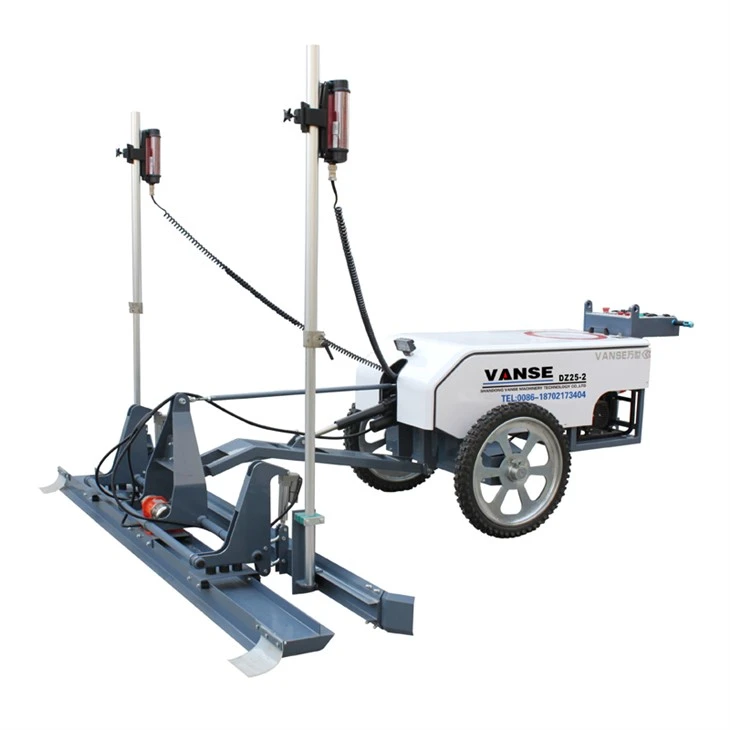

VANSE DZ25-2 Concrete Compacting Paving Concrete Ground Leveling Machinery Laser Concrete Levelling Machine
Designed for small commercial, upper deck, and residential projects--the WALK-BEHIND concrete laser leveling provides you and your customers with high quality, professionally produced floors at a fraction of the cost of conventional methods.
1. All electric drive, fast response. Green energy saving.
2. Fixed speed walking, not only more accurate,but also reduce the operator's labor.
3. With famous brand strength and quality assurance.
Send Inquiry
Product Details ofVANSE DZ25-2 Concrete Compacting Paving Concrete Ground Leveling Machinery Laser Concrete Levelling Machine
Products Show
|
FACTORY DIRECT SALE |
FUNCTION POWERFUL |
TO SAVE TIME AND EFFORT |
LEVELING COMPACTING PAVING |
Product Details
ENGINE
Brand SAWAFUJI SH3900EX engine, powerful and stable performance. Strong and durable, stable performance under high-intensity work.
LASER RECEIVING SYSTEM
It uses Leica laser receiver imported from Switzerland, which automatically controls the plane and two-way slope by receiving signals from the laser transmitter. For ground with complex shapes and high drainage requirements, it can also be equipped with special-shaped ground processing system.
OPERATING THE INTEGRATED CONSOLE
The central console is within easy reach and easy to control. The integrated throttle start control platform is simple to understand and easy to operate. The machine is operated by one person. The imported engine is electrically started, and the steering is controlled by the operating panel buttons. The operator only needs to press the buttons on the control panel to operate the machine, which is extremely simple to operate.
HIGH FREQUENCY PULSE COMPACTION VIBRATOR
Vibrating plate is made of special alloy material, plus welded wear-resistant material, long service life. The whole machine adopts the shell, the base is cast in one piece, and the dust cover is stamped once, which enhances the sealing performance of the whole machine and can be used in the working environment without explosion-proof requirements. It can effectively solve the problems of hollow concrete drum shell, crack and uneven ground, and the construction quality is more stable and smooth.
NON-FIXED LEVELING HEAD
Suitable for small commercial, upper deck and residential projects. With laser control accuracy, this machine will level higher tolerances than conventional methods and work well with different slumps of cement mixtures. Non-fixed flat head, independent suspension, can adapt to uneven ground leveling work.
PUNCTURE RESISTANT TIRES
The tyre has a serrated design for better skid resistance and wear resistance. Use puncture resistant tires that can be used in difficult conditions. There are two different specifications of tires for different engineering environments, please contact the salesman according to your needs!
Specification
|
Engine model |
SAWAFUJ |
Vibration system |
Electric motor |
|
Power |
2.8kW |
Tire |
Solid non-slip tires (with inflatable wide tires) |
|
Fuel |
Gasoline |
Exciting force |
2000N |
|
Fuel tank capacity |
17L |
Net weight |
490kgs/ 1080lbs |
|
Leveling width |
2.5m/ 8.20ft |
Dimensions |
3210*2730*1160mm/ 10.53*8.96*3.81ft |
Product Features
Full electric drive, fast response. Green and energy saving.
It can walk at a constant speed, which is not only more accurate, but also reduces the labor of the operator.
Partner & Project cases
Company information
Introduction
Shandong Vanse Group was founded in 2013. The company seizes the historical opportunity of the rapid development of the concrete industry and adheres to the development direction of high-end, high quality and high efficiency. lt soon became a national high-tech enterprise integrating research and development, manufacturing, sales and after-sales of concrete equipment. The company has successfully reached project cooperation with a number of partners, such as Jingdong Logistics, Ningde Times, Great Wall Motor Company Limited, and CSCEC (China State Construction Engineering Corporation).
Vanse Group consists of many business divisions such as Vanse Machinery, Wanhui New Energy, Wanli Pre-control Machinery Manufacturing, Vanse Road and Bridge, Shanghai Vanse Machinery, etc.
The products are sold to 31 provinces, municipalities and autonomous regions in China. Our products are sold to 31 provinces, municipalities and autonomous regions in China. Our products are exported to more than 30 countries and regions, such as USA, UK, Russia, Germany, Saudi, Australia and so on.
In 2018, Vanse Group reached a technical cooperation agreement with British experts, introduced international high-end technology, and achieved international standards for the matching of humanized mechanical design and performance with laser systems. We also established in-depth cooperation relationships with Shandong University and Chang'an University, integrating industry, academia, research and application.
Vanse Group has never stopped thinking about the future and pursuing the hope of creating a better life for human beings.
Grasp the present, realize the future, Vanse will create a brilliant future together with you!
WORKSHOP
CERTIFICATION
EXHIBITION
AFTER SALE SERVICE
| We provide on-site engineer services, technical guidance and after-sales maintenance. We currently have our own agents in Thailand, Turkey, Mexico, the United Kingdom and other places. |
|
| Strict quality control system, each product will undergo more than 12 hours of quality inspection to ensure product quality. | |
| For our MACHINE, we have 12 months warranty! | |
| Within 12 months, if the accessories are damaged, we will immediately send you the accessories for free or provide spare parts in the next order. | |
| No responsibility for man-made destroy. | |
| If you encounter any problems during use, we can provide online services. | |
| We are an independent factory with 12 years of independent R&D and production experience. We provide factory direct prices!!! |
|
|
All the above product information, customer evaluation, product consultation, netizen discussion and other content are important business resources of this store, and illegal reprinting and use without permission are prohibited.
|
Packing&delivery
PLYWOOD CASE/ PALLET
FAQ
| 01. What can we do if there are problems with the products? | |
| You can take a video to us and our engineers will analyze the problem for you to find the best solution. If problems happened within the guaranteed time, we can replace the components for you free of charge. We have dealers in some countries, for some technical problems which you can not solve by yourself. | |
| 02. How can you control your product quality? | |
| Quality is always considered the most important part of our manufacturing process. All of our products come under a strict quality control system from raw material inspection, component inspecting, semi-finished product inspection, finished product performance test, and random inspection before shipment. | |
| 03. How should we do if parts are broken? | |
| We advise customers to purchase some conventional accessories based on their country and environment. If other parts broken, we will send to you by International Express with the next order. | |
| 04. Is there any guarantee for your products? | |
| Most of our products have one year guarantee. | |
| 05. Can we put our trademark on the machine? And customize the product according to our requirements? | |
| yes, sir, of course. | |
| 06. What is the delivery time? | |
| Generally we need 3-5 days to produce the machine after prepayment, if you are urgent, 2 days will be ok, then send to the port. | |
| 07. How do you pack the machines? | |
| Generally, we pack them in export wooden cases, we make sure it is safe for transportation. Or we can also use Iron Frame to pack them. If machine is big, we use iron frame much more. |
