VANSE WS940C 3.0M Ride On Self Leveling Concrete Laser Leveling Machine
2. All aluminum body, lightweight and more convenient for various working conditions.
3. Standard anti slip system.
4. Hydraulic brake system, equipped with a trailer system.
5. More precise height adjustment rod, fast and precise elevation.
6. Soft landing function.
7. Long term use of switch detection and valve calibration functions can also ensure stable machine performance.
8. Equipped with two types of tires, suitable for different working conditions.
Send Inquiry
Product Details ofVANSE WS940C 3.0M Ride On Self Leveling Concrete Laser Leveling Machine
VANSE WS940C 3.0M RIDE ON SELF LEVELING CONCRETE LASER LEVELING MACHINE

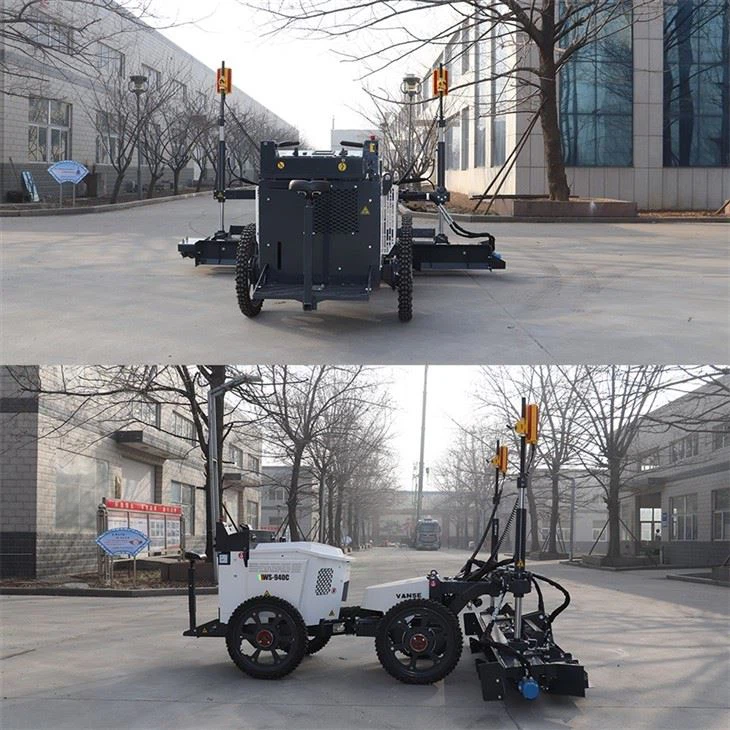

Products Show
Product Details

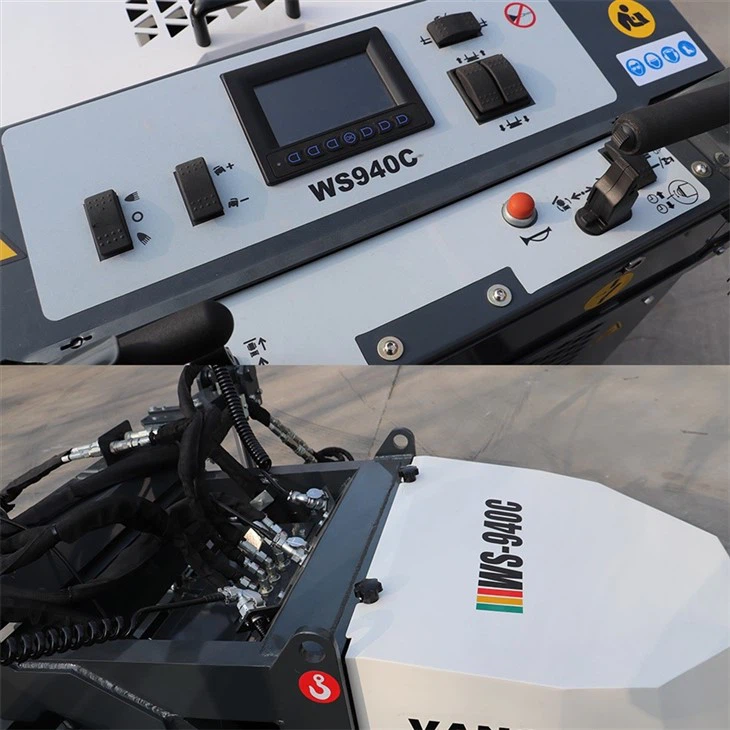

MULTIFUNCTION CONTROL PANEL
Intelligent operator panel, compact design and easy to operate.
LASER SYSTEM
American Trimble laser system, the laser transmitter has dual slopes and can be remotely controlled. The laser emission distance is long and stable.
VIBRATOR
Using a hydraulic vibration motor, you can vibrate and remove air from the concrete more effectively.
TURN THE WORK HEAD TO THE RIGHT
High wear-resistant auger. The Auger is used for paving and can be switched left and right. The auger is made of iron, which has high strength and durability and is not easily deformed.

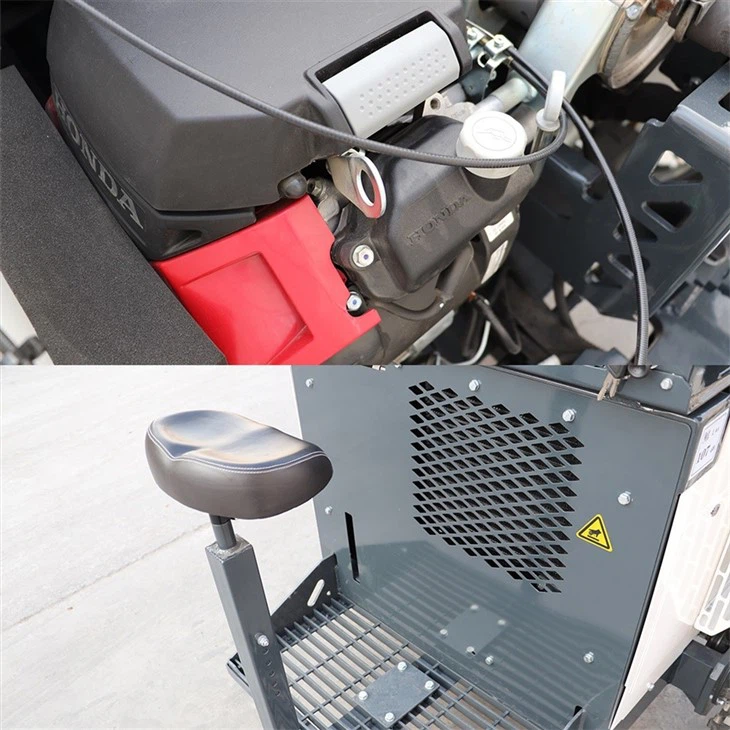

POWERFUL GENERATOR
Engine brand: HONDA GX690 engine.
Strong power and stable pemance. Durable, strong and stable perform high intensity work.
Specification
| Model | WS940C | Vibration system | Hydraulic vibration |
| Engine model | HONDA GX690 | Tire | Inflatable narrow tires(with inflatable wide tires) |
| Power | 18.4kW/ 25HP | Exciting force | 2000N(MAX) |
| Fuel | Gasoline | Net weight | 835kgs/ 1841lbs |
| Fuel tank capacity | 19L | Dimensions | 3470*3430*1525mm/ 11.38*11.25*5.00ft |
| Leveling width | 3.0m/ 9.84ft | Paving mode | Hydraulic spiral conveyor paving |
Partner & Project Cases
Company Information
FAQ
|
1.How do you key the machines? Generally, we pack them in plywood case or pallet, we make sure it is safe for transportation. Or we can also use iron Frame to pack them. If machine is big, we use iron frame much more. |
|
2. How can key control your product quality? Quality is always considered the most important part of our manufacturing process. All of our products come under a strict quality control system from raw material inspection, component inspecting, semi - finished product inspection, and performance test of finished products, to random inspection before delivery. |
|
3. How should we do crucial parts are broken? We advise customers to purchase some conventional accessories based on their country and environment. If other parts broken, we will send to you by International Express with the next order. |
|
4.What crucial we do if there are problems with the products? You can take a video to us and our engineers will analyze the problem for you to find the best solution. If problems happened within the guaranteed time, we can replace the components for you free of charge. We have dealers in some countries, for some technical problems which you can not solve by yourself. |
|
5. Can we put our trademark on the machine? And customize the product according key our requirements? Yes, sir, of course. |
