What are the tips for successfully using a concrete laser leveling over chaired reinforcement (rebar or wire mesh) without disrupting the subbase?

Excellent and highly practical question. Successfully using a laser leveling over chaired reinforcement is a critical skill that balances achieving superior slab quality with protecting the subbase. Here are the key tips, organized into a systematic approach:

Core Philosophy: Work With the System, Not Against It

The goal is to use the laser leveling's power to consolidate concrete around and through the reinforcement, not to use it as a bulldozer that pushes rebar into the subgrade.

1. Pre-Pour Preparation: The Foundation of Success

Robust Chairs & Secure Tying:

Use heavy-duty, high-load-capacity chairs (e.g., #5 or higher for rebar) with wide bases to resist punching into the subgrade.
Tie all intersections securely. A wobbly, unsecured mat will move as a unit when hit by the concrete wave, increasing subbase disruption risk.
Double-check chair spacing to prevent sagging between supports. For wire mesh, ensure adequate support (e.g., rebar chairs under intersections) to prevent it from being pushed down ("walked on").
Subbase Integrity:

Ensure the subbase (granular fill or stabilized earth) is properly compacted and "hard." A soft, loose subbase is easily indented.
Consider a light misting of water just before the pour (if allowed) to prevent the dry subbase from sucking moisture from the concrete, but avoid puddles.
Concrete Mix Design:

Opt for a medium slump mix (4-5 inches). A mix that is too stiff will require excessive force from the leveling to move, transferring more load to the rebar. A mix that is too wet is more likely to segregate when vibrated and offers less resistance to rebar displacement.
Consider a self-consolidating concrete (SCC) or highly workable mix with superplasticizers. This mix flows easily around reinforcement with less external force, reducing the load on the chairs.

2. During the Pour: Strategic Placement & Sequencing

Adequate Concrete Cover:

NEVER let the laser leveling pan ride directly on the reinforcement. There must be a minimum "head" of concrete (3-4 inches) above the rebar before the leveling head passes over. This concrete layer acts as a buffer, distributing the leveling's weight and vibration pressure more evenly.
Use shovels or rakes to ensure concrete is placed over the bars before the leveling arrives.
Direction of Travel:

Drive the leveling in the direction that minimizes "plowing." Often, this means driving perpendicular to the main reinforcement runs. This allows the leveling to bridge between bars rather than catching and pushing a continuous line of them.
For a typical two-layer mat, there may not be a perfect direction. The priority is maintaining that concrete buffer.
Technique: The "Float & Consolidate" Method:

Do Not "Bulldoze": Operate the leveling with a mindset of consolidating and striking off, not pushing vast amounts of concrete. Use the machine's power to pull concrete forward gently.
Lift the Head at the End of a Pass: When finishing a pass and turning, slightly lift the vibrating head to prevent it from dragging and catching on exposed rebar at the edge of the placed area.
Manage the Head of Concrete: Maintain a consistent, adequate amount of concrete in front of the leveling pan. An inconsistent head leads to "digging" which transfers force downward.

3. Laser leveling Operation: Precision Control

Vibration Usage:

Keep the vibration ON while moving. The purpose is to fluidize the concrete so it settles around the rebar, not to use the pan as a static plow.
Avoid using the vibration as a hammer while the machine is stationary over rebar.
Speed & Consistency:

Maintain a slow, steady, and consistent forward speed. Jerky movements or sudden stops increase point loads.
Let the machine's weight and vibration do the work at a controlled pace.

4. Monitoring & Troubleshooting

Pre-Pour Inspection: Walk the grid. Stomp on chairs. If they rock or sink, fix them now.
Spot Checks During the Pour: After the first few passes, have a finisher carefully pull back some concrete in a non-critical area to check for:

Rebar Depth: Is it maintaining proper cover?
Chair Integrity: Are any chairs bent or punched in?
The "Probe" Test: Use a steel rod or piece of rebar to probe beside chairs in finished areas to feel for subbase depressions.

What to Do If Disruption Occurs (Damage Control):

If you notice rebar being pushed down (e.g., laser receiver hitting exposed bar):
Immediately stop the leveling in that area.
Have workers use pry bars or lifting tools to carefully raise the rebar mat back to the proper elevation from below, adding new chairs or supports as needed.
Shovel additional concrete underneath the rebar to fill the void created in the subbase.
Resume leveling only after the mat is fully re-supported and covered with concrete.

Summary Checklist for Success:

Subbase: Hard, compact, and level.
Rebar: Heavy-duty chairs, securely tied, correct spacing.
Concrete Buffer: Maintain 3-4" of concrete over rebar before the leveling pan arrives.
Mix Design: Medium slump or highly workable.
Machine Operation: Steady speed, vibration on, perpendicular travel where possible.
Vigilance: Monitor during initial passes and adjust technique if needed.
By focusing on preparation, maintaining a concrete buffer, and using a deliberate consolidation technique, you leverage the laser leveling's immense power to create a perfectly flat, dense slab on top of a perfectly positioned reinforcement mat, without compromising the subbase.

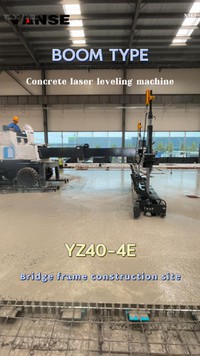

Relevant Video Resource: This video demonstrates a boom-operated laser leveling (Vanse) specifically handling chaired rebar and mesh without driving on it, illustrating the "reach and retract" method described above.
