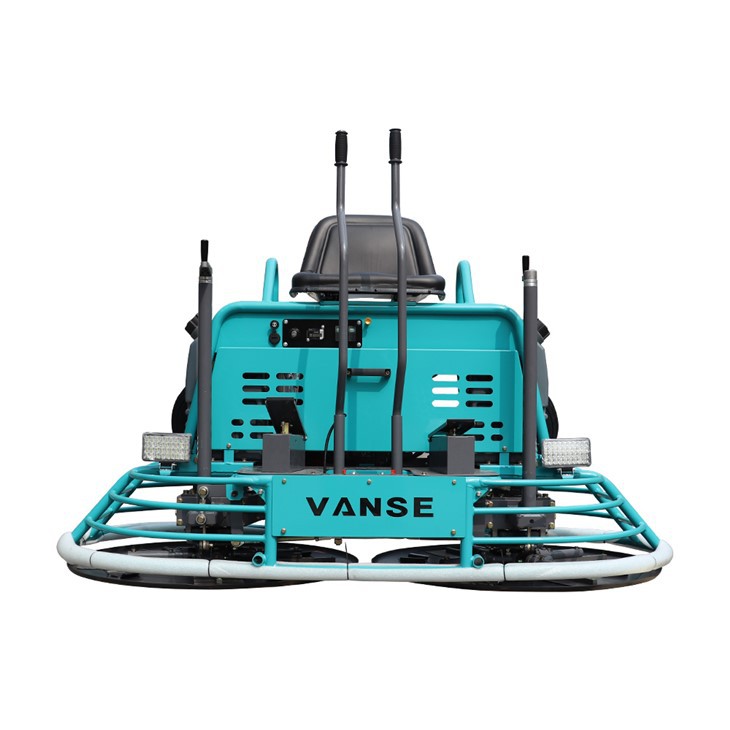

VS836 Safe And Reliable Easy Operation 36 Inch Ride On Double Disc Blades Concrete Leveling Power Trowel
（1）Driving operation greatly reduces labor intensity compared with hand-held operation.
（2）The double disc work greatly improves the work efficiency. It can install two pulping discs at the same time to carry out rapid pulping. The construction efficiency is 5-8 times higher than that of the ordinary trowel, and the single operation reduces the labor cost.
（3）The weight is heavier, the compaction effect is better to the ground, the density of the concrete ground is greatly improved, and the construction efficiency is higher than that of the handheld trowel machine.
（4）Mechanical steering operation, stable and reliable, responsive, comfortable operation.
（5）Equipped with Honda GX690 high horsepower electric start engine, the power is strong and reliable.
（6）Equipped with reinforced gearbox, it has large torque and stable quality.
（7）The pedal safety switch can quickly shut down the engine and provide greater security.
（8）The pedal throttle control is sensitive and fast.
（9）Equipped with 19L water tank and fuel tank, it can work continuously for a long time.
（10）Copper sprinkler joint and valve can effectively prevent rust of sprinkler system.
（11）High brightness lamp can work in dark environment.
Send Inquiry
Product Details ofVS836 Safe And Reliable Easy Operation 36 Inch Ride On Double Disc Blades Concrete Leveling Power Trowel
Products use--VS836 Safe And Reliable Easy Operation 36 Inch Ride On Double Disc Blades Concrete Leveling Power Trowel
The concrete power trowel is suitable for the surface of cement concrete to be pulped, smoothed and polished. It is widely used in the construction of concrete floor of standard factory buildings, warehouses, parking squares and other buildings.
Working principle--VS836 Safe And Reliable Easy Operation 36 Inch Ride On Double Disc Blades Concrete Leveling Power Trowel
The engine transmits power to the worm gear reducer through clutch, belt, pulley and transmission shaft, and the reducer drives the cross seat and the spatula blade to work. The turning of the left and right cutter heads is opposite. The left cutter heads rotate clockwise while the right cutter heads rotate counterclockwise. The razor blade inclination angle is adjusted by adjusting the left and right shake handle. By pulling the handle, the machine can move forward, backward, left or right, forward and reverse.
Products show--VS836 Safe And Reliable Easy Operation 36 Inch Ride On Double Disc Blades Concrete Leveling Power Trowel
machine details--VS836 Safe And Reliable Easy Operation 36 Inch Ride On Double Disc Blades Concrete Leveling Power Trowel
The Weight Is Heavier
Increased mass leads to enhanced ground compaction, significantly boosting the solidity of the concrete surface, and surpassing the productivity of manual troweling methods.
Dual Disc Operation
Utilizing a dual-disc system significantly amplifies operational productivity. This setup enables the simultaneous deployment of a pair of pulping discs for swift processing. The efficiency in construction is elevated to a magnitude of 5-8 times superior to standard trowels, with each pass diminishing labor expenses.
Equipped with Honda GX690
Fitted with a Honda GX690 high-horsepower electric start engine, this device delivers robust and dependable performance.
LED Light
High brightness lamp can work in dark environment.
Pedal Safety Switch
The pedal safety switch is designed to promptly halt the engine, enhancing overall safety. The pedal also offers precise and swift throttle control.
Large Capacity Water Tank
With a 19L water and fuel tank capacity, it can operate for extended periods without interruption.
parameter--VS836 Safe And Reliable Easy Operation 36 Inch Ride On Double Disc Blades Concrete Leveling Power Trowel
|
VS836 |
|
HONDA GX690 |
|
Higher than 90# gasoline |
|
19L |
|
96cm*2/ 36inch*2 |
|
19L |
|
350(L)*150(W)mm/ 13.78*5.9inch |
|
25HP/ 18.4kW |
|
2000*1000*1300mm/ 6.56*3.28*4.27ft |
|
Mechanical drive |
|
380kgs / 838lbs |
|
80-150RPM |
