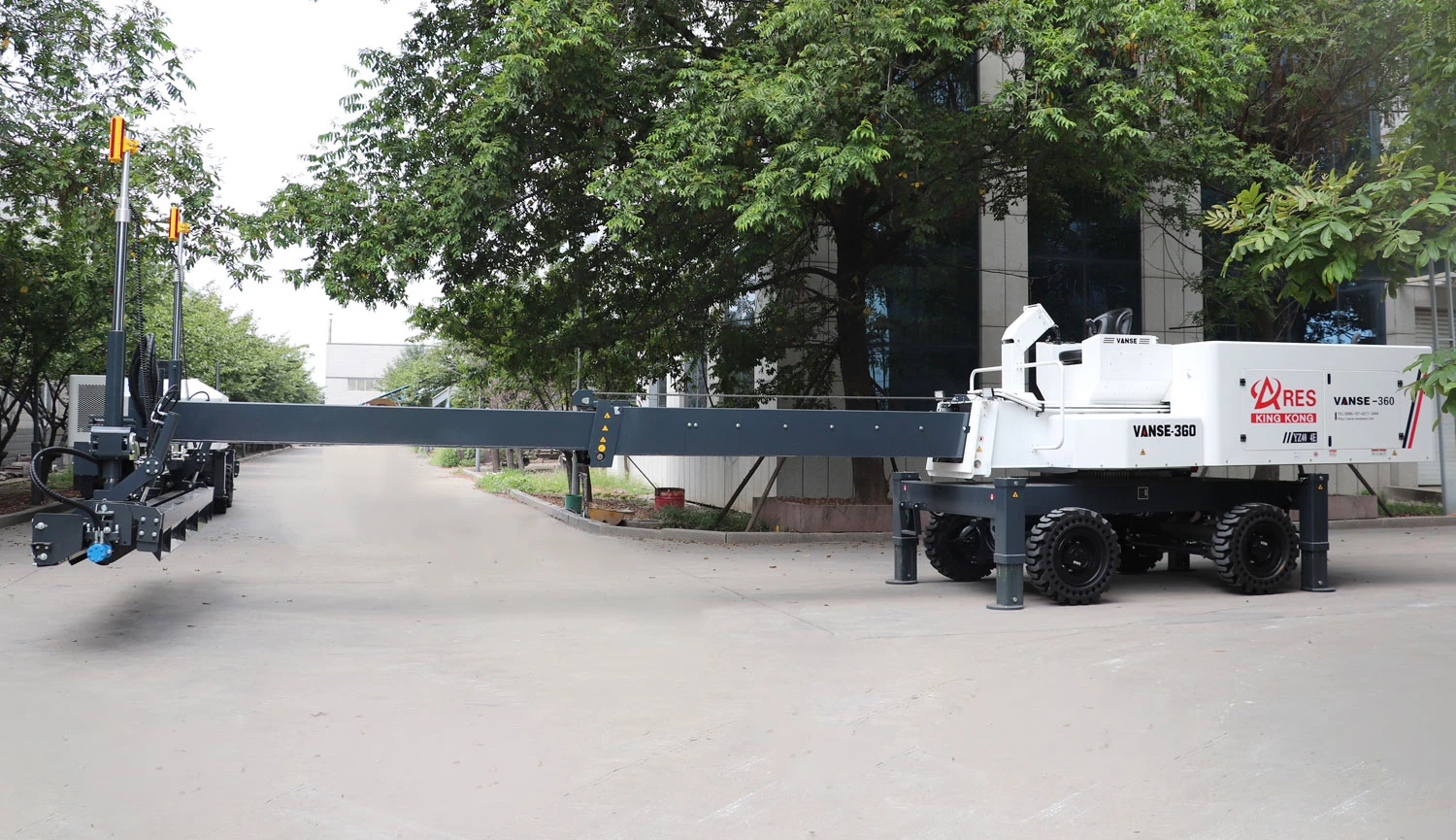

VANSE YZ40-4E Telescopic Boomed Laser Land Leveling Concrete Pavement Laser Leveling Machine
2. One click leveling of the body allows for easy handling of various complex road surfaces.
3. The automatic leveling system is not only more precise, but also reduces the operator's labor force.
4. Standard cleaning system with a maximum cleaning pressure of 150Bar, large capacity water tank, convenient and fast flushing.
5. Solid rubber tire with process grooves, resistant to punctures and more comfortable.
6. Optional inflatable wide tires.
7. More comprehensive and automated random accessories to meet diverse needs and more convenient machine maintenance.
8. The head comes standard with soft landing function.
9. High-power engine from an internationally renowned brand, highly efficient and energy-saving.
10. The hydraulic system uses the internationally renowned brand Danfoss, with excellent performance.
11. Internationally renowned brand laser system, accurate and fast.
Send Inquiry
Product Details ofVANSE YZ40-4E Telescopic Boomed Laser Land Leveling Concrete Pavement Laser Leveling Machine
Products Description
Specification
| Engine model | YANMAR 4TNV98T | Telescopic arm | 6m/ 19.69ft long, 360°turn |
| Power | 57kW /78HP | Tire | Solid non-slip tires (optional inflatable tires) |
| Fuel | Diesel | Leveling head swing | Left swing: 45°; Right swing: 75° |
| Fuel tank capacity | 140L | Paving mode | Hydraulic spiral conveyor paving |
| Exciting force | 5600N (MAX) | Steering mode | Two wheel, four wheel, crab steering |
| Leveling width | 4m/ 13.12ft | Dimensions | 6000*4560*2550mm/ 19.69*14.96*8.37ft |
| Net weight | 8000kgs/ 17637lbs | Transportation size | 9100*2300*2560mm/ 29.86*7.55*8.40ft |
Advantages:
A. Intelligent operation mode, flexible control, single operation.
B. Laser emitters arranged independently, to ensure that the ground elevation consistent, will not produce errors.
C. Integration of first-class, multi-channel integration process to improve efficiency and save manpower.
D. Construction area of 500 square meters per hour or more to complete the workload of more than 4,000 square meters, greatly improve operational efficiency.
E. The 360-degree telescopic arm can be rotated freely, is six meters long.
Main construction.
a.The whole machine is composed of scraper and leveling parts. The main machine includes: scraper, vibrating unit, vibrating plate and laser receiver.
There also have laser transmitter and handheld laser receiver to work with the machine.
b.The 360-degree telescopic arm can be rotated freely, is six meters long.
c.Working principle: The machine relies on gasoline generator to generate electricity, and drives the laser monitoring system with electric power.
d.The computer control system drives the leveling part to level the concrete.
Details Images
FLAT HEAD
With a 4-meter leveling machine head that can rotate and swing, it allows for versatile and accurate pavement operations. This machine can effectively level up to 24 square meters of concrete in a single pass, enhancing productivity.
4 WHEELS TURNING
Hydraulic Support: One-button operation for raising hydraulic support legs.
Steering Modes: Options for front-wheel steering, four-wheel steering, and side movement.
CONTROL PANEL
Steering gear forward and backward control handle: It is used to control the forward and backward movement of the entire machine.
Dashboard: It includes oil pressure alarm, fuel oil scale, water temperature alarm, electric lock, rough leveling switch, vibrate switch, controls for starting, auger switch, and inclination switch.
Left control panel & right control panel.
360 DEGREE ROTATING TELESCOPIC ARM
The rotating platform, which can reach up to 6 meters in length, operates with high speed and efficiency. Additionally, the 4 - meter leveling head is capable of rotation and swinging. It has the capacity to level 24 square meters of concrete in each operation.
LASER RECEIVER SYSTEM
It is capable of automatically controlling the plane and bi-directional slope by receiving the signal from the laser transmitter. In the case of complex-shaped ground that has high drainage requirements, the shaped ground treatment system is also provided.
Application
Company Information
Shandong Vanse Group was established in 2013. The company seizes the historical opportunity presented by the rapid growth of the concrete industry and adheres to the development orientation of being high-end, of high quality, and highly efficient. It quickly evolved into a national high-tech enterprise that integrates research and development, manufacturing, sales, and after-sales service of concrete equipment. The company has successfully engaged in project cooperation with several partners, including Jingdong Logistics, Ningde Times, Great Wall Motor Company Limited, and CSCEC (China State Construction Engineering Corporation).
Vanse Group comprises numerous business divisions, such as Vanse Machinery, Wanhui New Energy, Wanli Pre-control Machinery Manufacturing, Vanse Road and Bridge, Shanghai Vanse Machinery, and so on. The products are sold across 31 provinces, municipalities, and autonomous regions within China. Additionally, our products are exported to over 30 countries and regions, such as the USA, the UK, Russia, Germany, Saudi Arabia, Australia, etc.
In 2018, Vanse Group entered into a technical cooperation agreement with British experts, introduced international advanced technology, and attained international standards for the combination of humanized mechanical design and performance with laser systems. We also established in-depth collaborative relationships with Shandong University and Chang'an University, integrating industry, academia, research, and application.
Vanse Group has never ceased contemplating the future and pursuing the aspiration of creating a better life for humanity.
Seize the present and realize the future. Vanse will build a brilliant future together with you!
fAQ
01/
What is the delivery time?
Generally, we require 3 to 5 days to manufacture the machine after receiving the prepayment. If you are in a hurry, it can be done in 2 days, and then it will be sent to the port.
02/
How about the warranty?
We provide a 12-month warranty.
03/
What should we do if the machine breaks down?
You can send us a video, and our technicians will analyze the cause of the problem based on the video.
04/
What should we do if parts break?
We recommend that customers purchase some conventional accessories based on their country and environment. If other parts break, we will send them to you by sea or by air. Alternatively, they can be delivered with the next order.
05/
Can the machine use the trademark of our own company?
Yes, sir, of course.
06/
Can we customize the product according to our requirements?
Yes, sir, no problem.
