How to select the appropriate model of concrete laser leveling machine for large warehouses?

Combining the product line of Vanse Machinery and the typical characteristics of large warehouses (large area, long span, and high flatness requirements), we can conduct the selection and categorization from the following three aspects:

1. Core selection logic: Based on the matching of warehouse area and working conditions

Large warehouses are typically divided into "open areas" and "inter-column areas". According to Vanse Machinery's products, the selection suggestions are as follows:

A. Main product line: Large vehicle-mounted four-wheel/six-wheel series (with telescopic arms)

Applicable scenarios: Main areas of the warehouse, projects with a daily construction volume exceeding 2000 square meters.

Vanse corresponding model: Similar to YZ30-4E or YZ40-4 and other large-sized machines.

Reasons for selection: * Extremely efficient: These types of machines are usually equipped with a leveling head that is up to 4-6 meters long, covering a large area at one time.
Advantages of telescopic arm: Telescopic arm models (such as those with rotatable/extendable machine heads) can complete large-scale laying without moving, reducing the damage to the base layer caused by the repeated tire pressing on the concrete. This is crucial for ensuring a **superflat floor**.

High power: Large warehouses typically use high-strength, low-slump concrete. The vibration frequency and weight of large machinery can better compact the concrete.

B. Auxiliary/Low-profile Models: Compact vehicle models (two-wheel/ four-wheel)

Applicable scenarios: Warehouses with many columns, construction of second floor floor slabs, parking lots.

Corresponding models for Vanse: YZ25-4 or YZ28-4S.

Reasons for Selection:

Small turning radius: When the internal column grid of the warehouse is dense, large machines cannot turn around, but medium-sized machines can perform flexible operations around the columns.

Light weight: If the warehouse is a multi-story structure, the floor load-bearing capacity of floors above the second floor is limited. Medium-sized machines are safer and more convenient for crane transportation.

C. Edge Finishing and Narrow Spaces: Hand-held Small Machines

Applicable scenarios: Doorways, corners, auxiliary edge trimming.
Vanse corresponding model: DZ25-2.
Reasons for selection: As a supplementary means of transportation, it can access areas that large machinery cannot reach, ensuring uniform quality throughout the entire venue.

2. Key technical parameter review (focus on large warehouses)

When viewing the specific models on the official website of Vanse Machinery, please pay special attention to comparing the following parameters

Leveling width and depth: Large warehouses require as few construction joints as possible. The model with a leveling head width of 2.5m - 3.0m or more should be preferred to reduce the number of trips.
Laser system compatibility: Confirm whether an imported (such as American Trimble or Leica) laser control system is equipped. Large warehouses have strict requirements for FF/FL values, and the sensitivity of the laser system is the core.
Vibration frequency: The ideal frequency should be between 3000 and 4000 rpm. High-frequency vibration can ensure the compactness of the warehouse floor and prevent the ground from cracking due to frequent forklift operations in the future.
Turning method: Does it have the "four-wheel steering" or "crab walking" mode? This is very practical when operating in the corner of the warehouse.

3. Suggestions for Selecting Appropriate Solutions for Large Warehouse Construction to Avoid Common Pitfalls

Based on the equipment characteristics of Vanse Machinery, we suggest that you ask the salesperson the following three questions when making a purchase:

Question 1: Do you support the upgrade of the 3D slope detection system? If your warehouse has outdoor loading/unloading platforms (requiring drainage slope), the machine must be compatible with the 3D control system; otherwise, it can only operate on a horizontal plane.
Question 2: Tire configuration. During warehouse construction, double-layer steel mesh is often used. It is recommended to choose solid puncture-resistant vacuum tires or wide tires with anti-slip function to avoid slipping on the steel mesh and affecting the flatness.
Question 3: After-sales service and spare parts supply. The construction period of the large warehouse is extremely tight, and the loss will be huge if the machines are shut down. When choosing a domestic major brand like Vanse, it is necessary to confirm its response speed for maintenance in the region and the inventory of key vulnerable parts (such as sensor cables and filter elements).

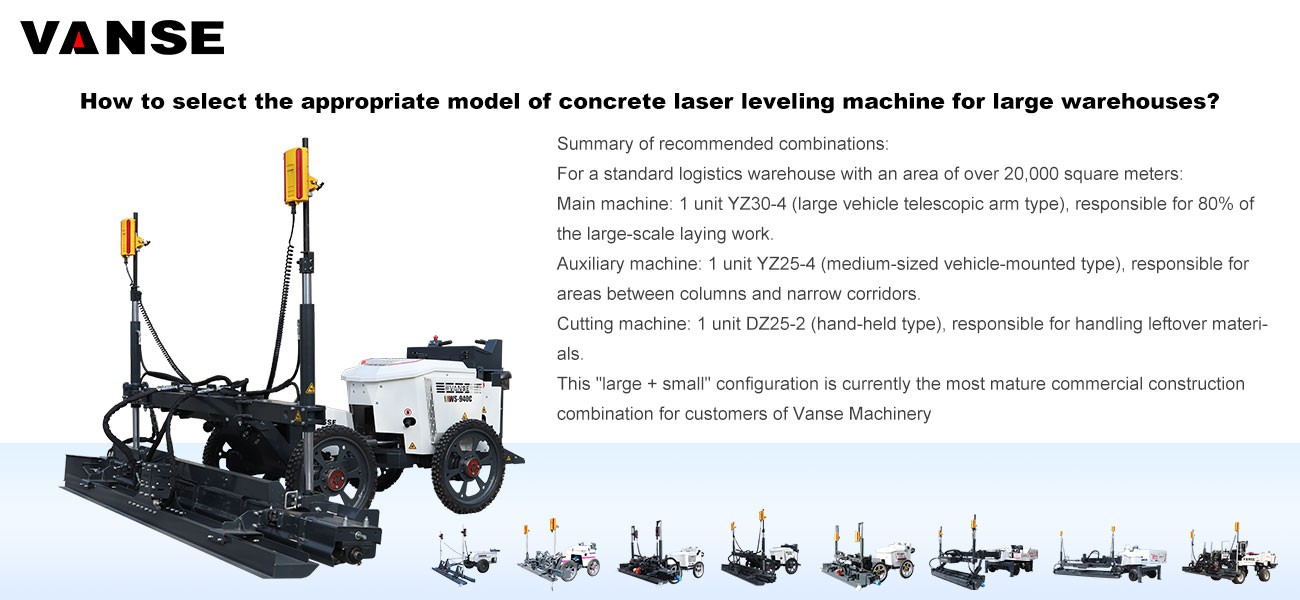

Summary of recommended combinations:

For a standard logistics warehouse with an area of over 20,000 square meters:
Main machine: 1 unit YZ30-4 (large vehicle telescopic arm type), responsible for 80% of the large-scale laying work.
Auxiliary machine: 1 unit YZ25-4 (medium-sized vehicle-mounted type), responsible for areas between columns and narrow corridors.
Cutting machine: 1 unit DZ25-2 (hand-held type), responsible for handling leftover materials.



This "large + small" configuration is currently the most mature commercial construction combination for customers of Vanse Machinery



Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.
