VANSE WS940C Concrete Laser Leveling Machine
🎺2. All aluminum body, lightweight and more convenient for various working conditions.
🎺3. Standard anti slip system.
🎺4. Hydraulic brake system, equipped with a trailer system.
🎺5. More precise height adjustment rod, fast and precise elevation.
🎺6. Soft landing function.
🎺7. Long term use of switch detection and valve calibration functions can also ensure stable machine performance.
🎺8. Equipped with two types of tires, suitable for different working conditions.
Send Inquiry
Product Details ofVANSE WS940C Concrete Laser Leveling Machine
| Model | WS940C | Engine model | HONDA GX690 |
| Power | 18.4kW/25HP | Tire | Inflatable narrow tires (with inflatable wide tires) |
| Fuel | Gasoline | Fuel tank capacity | 19L |
| Leveling width | 3m/9.84ft | Vibration system | Hydraulic spiral conveyor paving |
| Exciting force | 2000N(max) | Paving model | Hydraulic spiral conveyor paving |
| Net weight | 835kgs/1841lbs | Dimension | 3470×3430×1525mm/11.38×11.25×5.00ft |
VANSE WS940C Hot Sale Concrete Laser Self Leveling Concrete Level Vibrating Automatic Leveling Machine For Road Construction
Powerful and Stable

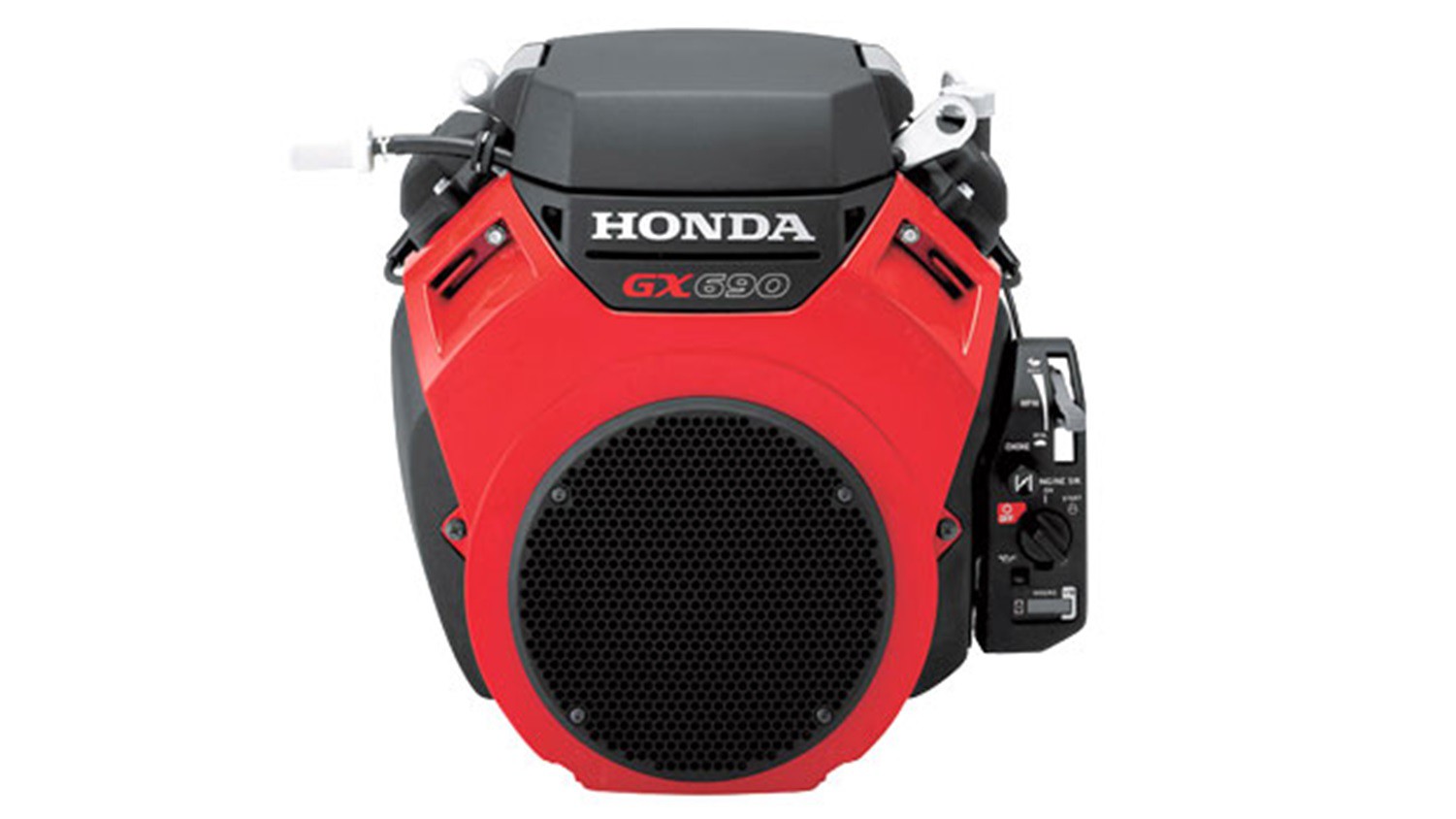

Equipped with Honda GX690 gasoline engine, it is an air-cooled 4-stroke twin-cylinder structure with a power of 18.4kW (25HP) and stable and reliable power output. With a 19L large-capacity fuel tank, it can meet the needs of long-term continuous operation and reduce the inconvenience caused by frequent refueling. It is suitable for various large-area concrete construction projects and provides strong guarantee for construction progress. In the ground concrete construction of large commercial buildings, it can rely on powerful power to continue to work efficiently.
Flexible Walking and Turning

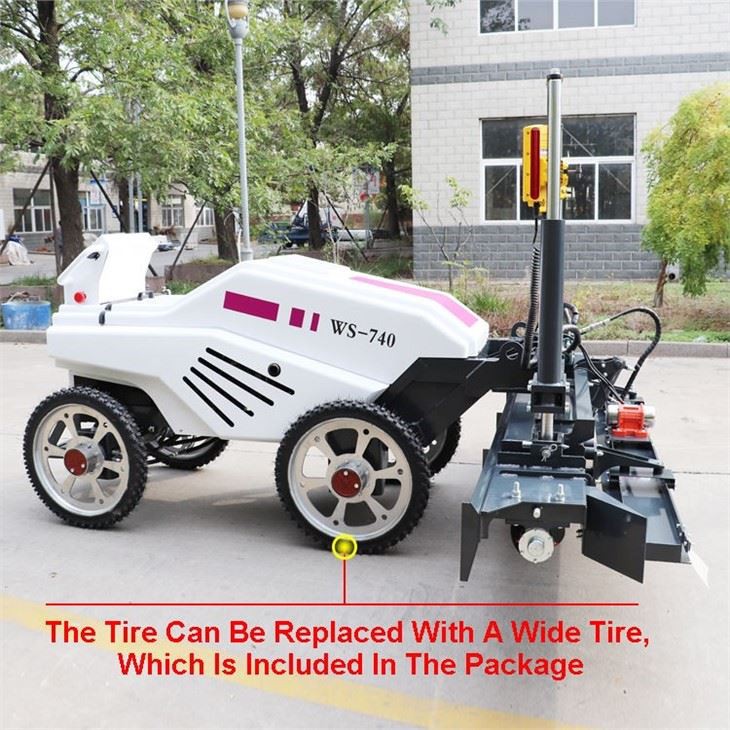

Adopting the "Reducer+motor" drive mode and inflatable narrow tires (can also be equipped with inflatable wide tires), this combination allows the equipment to move flexibly under different ground conditions. The minimum turning radius is only 2300mm, the steering angle is 40° on the left and 36° on the right, and it can turn freely in a narrow space, easily cope with complex construction sites, such as construction in space-constrained areas such as underground parking lots, and effectively improve construction efficiency.
Accurate laser leveling system
Using the microcomputer laser scanning control mode, the beam emitted by the laser transmitter rotates 360° to establish a constant horizontal reference surface in the construction area. The laser receiver is installed on the vertical rods of the two leveling cylinders of the mechanical leveling head, which can accurately detect the rise and fall of the laser beam and transmit the horizontal information to the controller in real time. The controller drives the hydraulic lifting and automatic leveling system valves accordingly to achieve precise adjustment of the leveling head height, ensuring that the flatness and elevation errors of the concrete surface are extremely small, meeting high-standard construction requirements.
