How to debug and calibrate the concrete laser leveling before construction
Concrete laser leveling machine is an indispensable key equipment in modern building construction. The stability and accuracy of its performance are directly related to the quality of the project. Therefore, it is crucial to debug and calibrate the concrete laser leveling before construction. This article will elaborate on the debugging and calibration steps of the concrete laser leveling before construction to ensure the accuracy and reliability of the equipment during construction.
1. Equipment inspection and preparation
Before commissioning and calibration, the equipment needs to be thoroughly inspected and prepared. This includes:
★Make sure that the equipment is intact and all components are firmly connected and not loose or damaged.
★Check whether the power cord and control system are intact and not damaged or aged.
★Prepare the required calibration tools, such as spirit level, laser rangefinder, etc.
★Clean the equipment surface and working environment to ensure that no debris or obstacles affect the calibration process
2. Laser system calibration

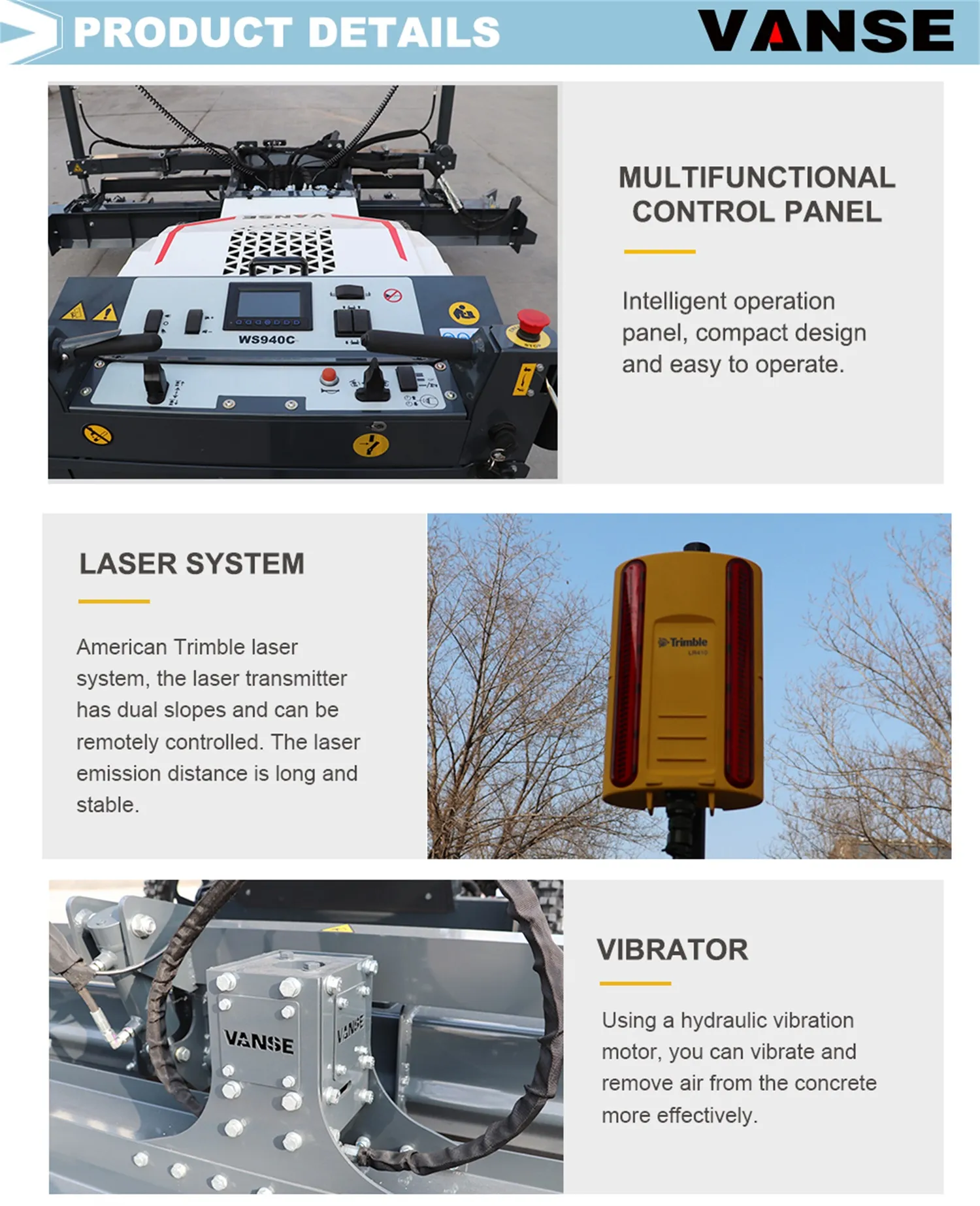

The laser system is the core part of the concrete laser leveling machine. Its accuracy and stability directly affect the leveling effect. The steps for laser system calibration are as follows:

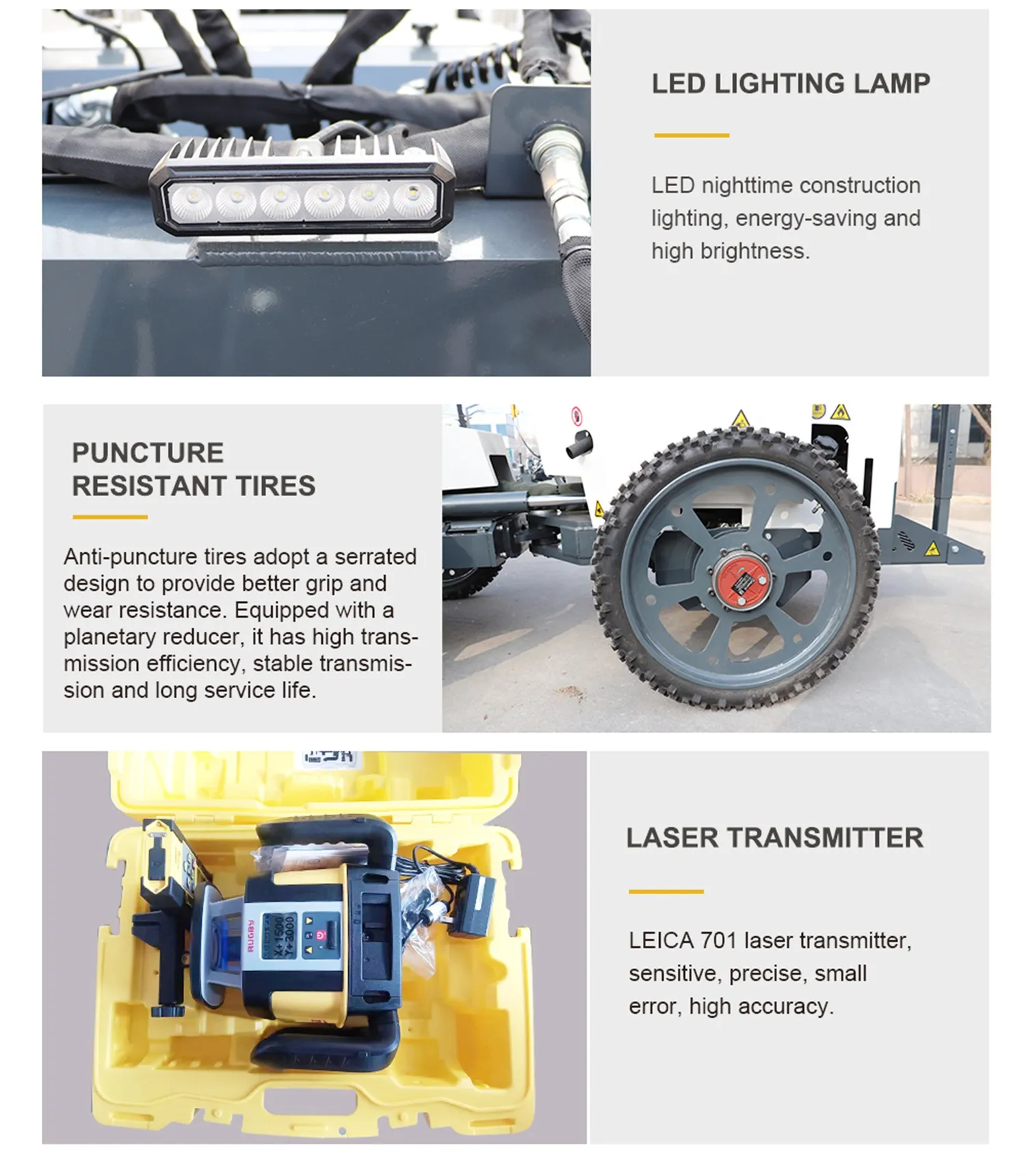

★According to the equipment manual, install the laser transmitter correctly and ensure that its position is stable and eye level.
★Use a laser rangefinder to detect the projection distance and angle of the laser line to ensure it is consistent with the equipment setting value.
★Adjust the angle and position of the laser transmitter so that the laser line can be accurately projected onto the ground to be leveled.
★Use a spirit level to check the installation level of the laser transmitter to ensure that there is no deviation in the level of the laser line.
3. Levelness and flatness debugging
Levelness and flatness are important parameters for debugging concrete laser leveling machines, which are directly related to the leveling effect. The debugging steps are as follows:
★Use a spirit level to check whether the chassis of the leveling machine is level. If there is any difference, adjust it in time.
★Set multiple detection points on the ground to be leveled, and use a laser rangefinder to measure the distance between the points and the laser line.
★According to the measurement results, adjust the leveling height and speed of the leveling machine so that the height of each point is consistent with the laser line.
★Monitor the level and flatness in real time during the leveling process. If there is any deviation, it needs to be adjusted in time.
4. Power system testing

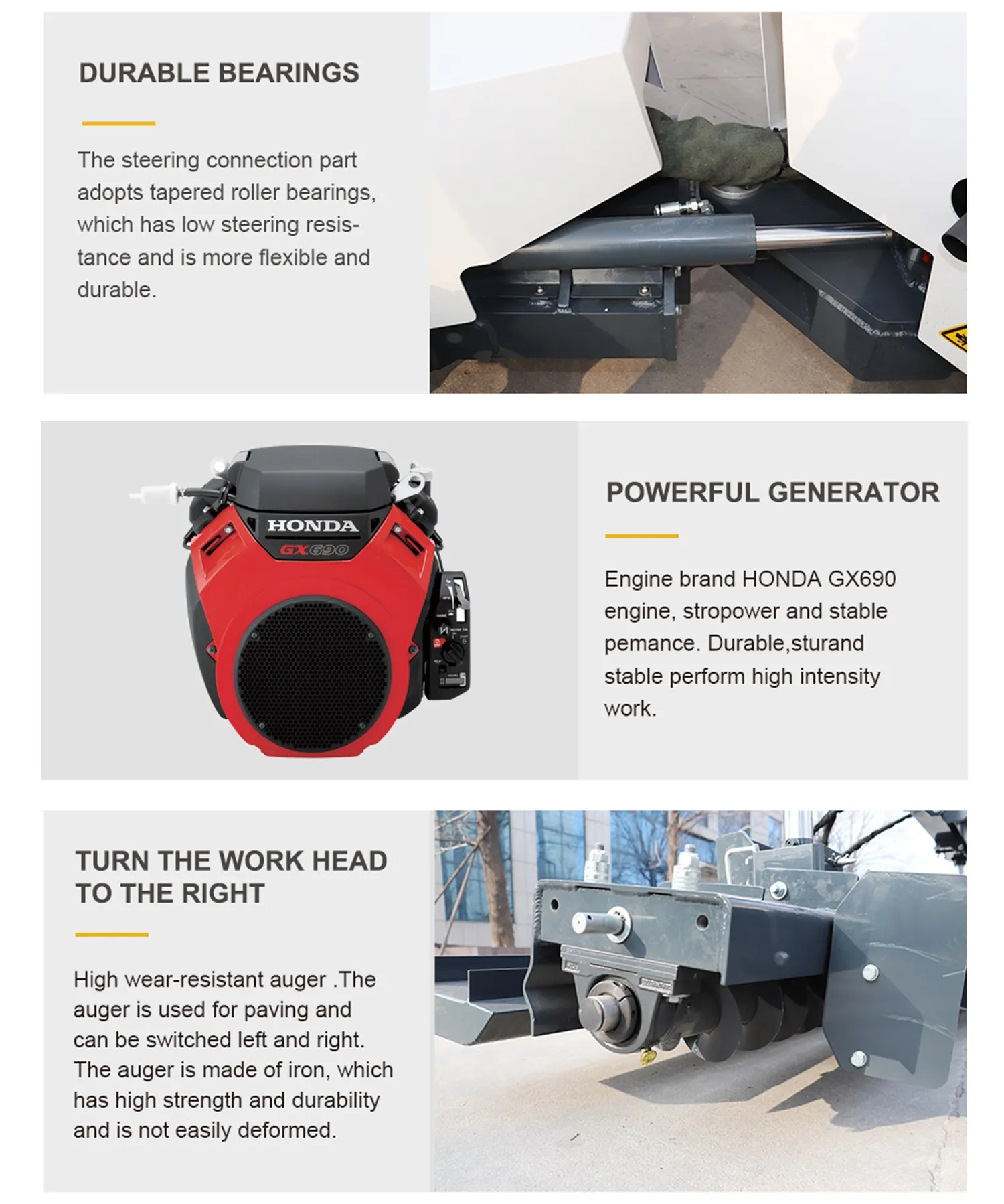

The power system is an important part of the concrete laser leveling, and its performance directly affects the operation of the equipment. The power system test steps are as follows:
★Check whether the lubricating oil or coolant of the engine or electric motor is sufficient and whether it needs to be replaced.
★Start the engine or motor and check whether it runs smoothly and whether there is any abnormal noise or overheating.
★Check the working condition of the transmission system, such as whether belts, chains, etc. are loose or worn.
★Check the oil pressure and flow of the hydraulic system to ensure it is working properly.
5. Safety device inspection
Safety devices are the key to ensuring construction safety and stable operation of equipment. The safety device inspection steps are as follows:
★Check whether emergency stop buttons, safety switches and other safety devices are intact and free of damage or failure. ★Test the function of the safety device, such as whether the equipment can stop running immediately after pressing the emergency stop button.
★Check whether the safety warning signs around the equipment are clearly visible.
6. Operator training
The operator's skill level and operating experience have an important impact on the debugging and calibration results of the equipment. Therefore, it is crucial to provide necessary training to construction personnel. Training content includes:
★Basic principles and structure of equipment.
★Operating procedures and safety requirements.
★Debugging and calibration methods and steps.
★Troubleshooting and emergency measures.
7. Troubleshooting and Prevention
During the debugging and calibration process, various faults and problems may be encountered. Therefore, appropriate troubleshooting and preventive measures need to be taken. Specifically include:
★Analyze the possible causes of the failure based on the equipment instructions and failure symptoms.
★Use appropriate maintenance tools and methods to troubleshoot and repair faults.
★Carry out regular maintenance and upkeep on equipment to prevent failures.
★Establish a fault recording and analysis system, summarize experience and lessons, and avoid similar faults from happening again.
8. Inspection after debugging is completed
After debugging and calibration are completed, a comprehensive inspection of the equipment is required to ensure that all parameters and performance meet the requirements. Inspections include:
★Check again whether all parts of the equipment are intact and whether the connections are firm.
★Use equipment such as a level ruler and laser rangefinder to recalibrate the levelness and light system of the equipment.
★Start the device and check whether it runs smoothly and has no abnormal noise or overheating.
★Carry out actual leveling operation test to check whether the leveling effect meets the requirements.
Through the detailed elaboration of the above steps, we can see the importance and necessity of debugging and calibrating the concrete laser leveler before construction. Only by ensuring that the parameters and performance of the equipment meet the requirements can construction quality and efficiency be guaranteed. Therefore, in actual construction, we should strictly follow the debugging and calibration steps to ensure the accuracy and reliability of the equipment. At the same time, we should also strengthen the maintenance and upkeep of equipment to prevent the occurrence of failures and improve the service life and efficiency of the equipment.
