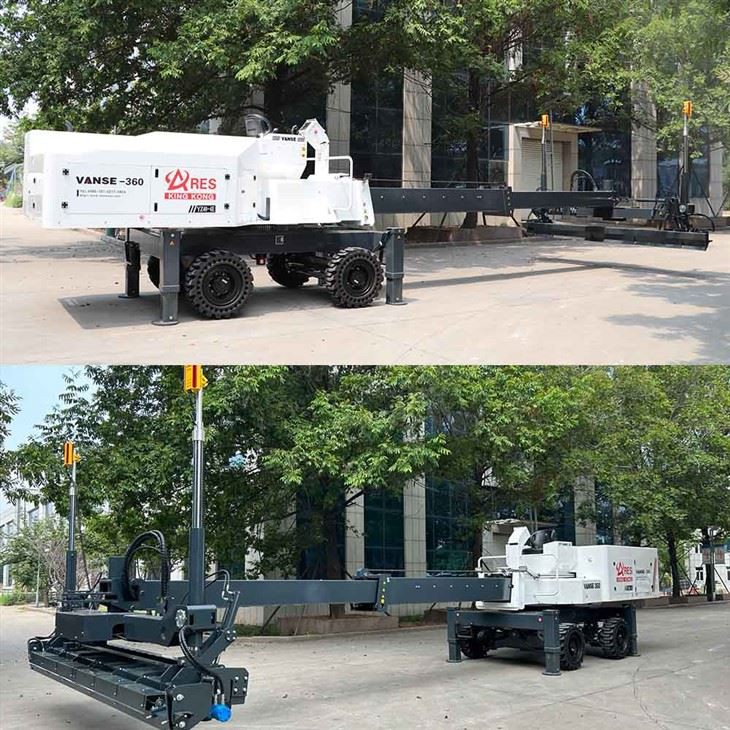

YZ40-4E-360 Concrete Laser Screed - Easy Operating High Efficiency Laser Screed Concrete for Sand and Cement Floor
Name | Concrete Laser Screed |
Type | YZ40-4E |
Engine Type | YANMAR 4TNV98T |
Characteristic | Water-cooled Diesel, |
4 Stroke,4 Cylinder | |
Cooling System | Closed Liquid Cooling |
Power | 63KW / 2500Rpm |
Fuel Consumption | <=254g/kw.h |
Fuel | Diesel |
Fuel Tank Volume | 140L |
Engine Oil Volume | 8.9- 10.6L |
Leveling Mode | SLS (Self leveling system) |
Screed Width | 4M |
Telescopic Boom | 6M Long, 360° Rotation |
Screed Swing Angle | 120 Degrees. |
Paving Mode | Hydraulic Screw Conveyor Paving |
Paving Thickness | 5-45CM |
Leveling Precision | 1.5MM |
Vibrating System | Hydraulic eccentric vibrating beam |
Excitation Force | 3000N |
Vibration Frequency | 60HZ |
Configuration | Laser Emitter & receiver, Tripod |
Laser system brand | Trimble brand |
Laser system mode | Microcomputer laser scanning |
Applicable Scope | Flat Surface, Slope/Double Slopes |
Drive Type | Full Hydraulic Drive |
Landing mode | Soft Landing System |
Mini turning radius | 2.9M |
Hydraulic Oil Tank | 200L |
Tyre | Solid puncture-proof &antiskid tyre |
Walking Speed | 0- 10 KM/H (Double speeds switch) |
Working Speed | 24m/Min |
Speed Control | Stepless Speed Change. |
Turning Mode | 2 Wheels/ 4 Wheels/ Crab Turn. |

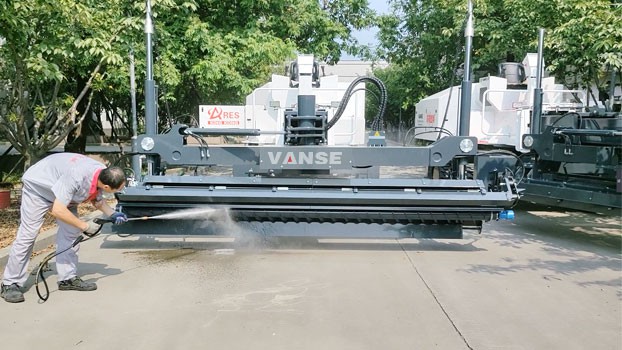

Clean machine | Self configuration |
Theoretical Flow | 12L/MINTUE, 150BAR |
Outline Dimension | 5835*4470*2630 mm |
Net Weight | 8500Kgs |
The technical principle of the whole floor concrete machine is to use electric power to
control the whole machine of the flat head system, use the laser to control the whole
machine to drive, and use the laser to control the whole machine to complete the flat
drive and control the whole machine.

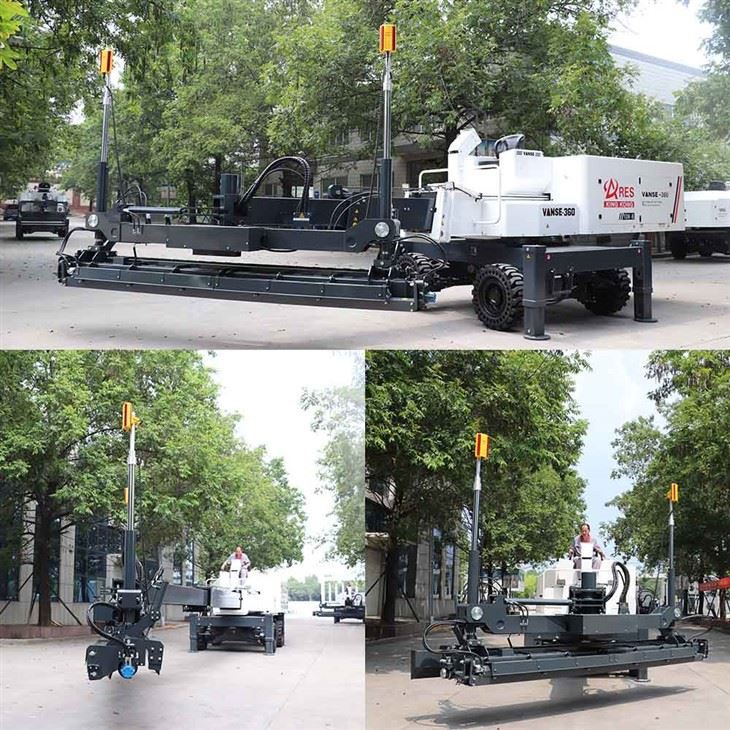

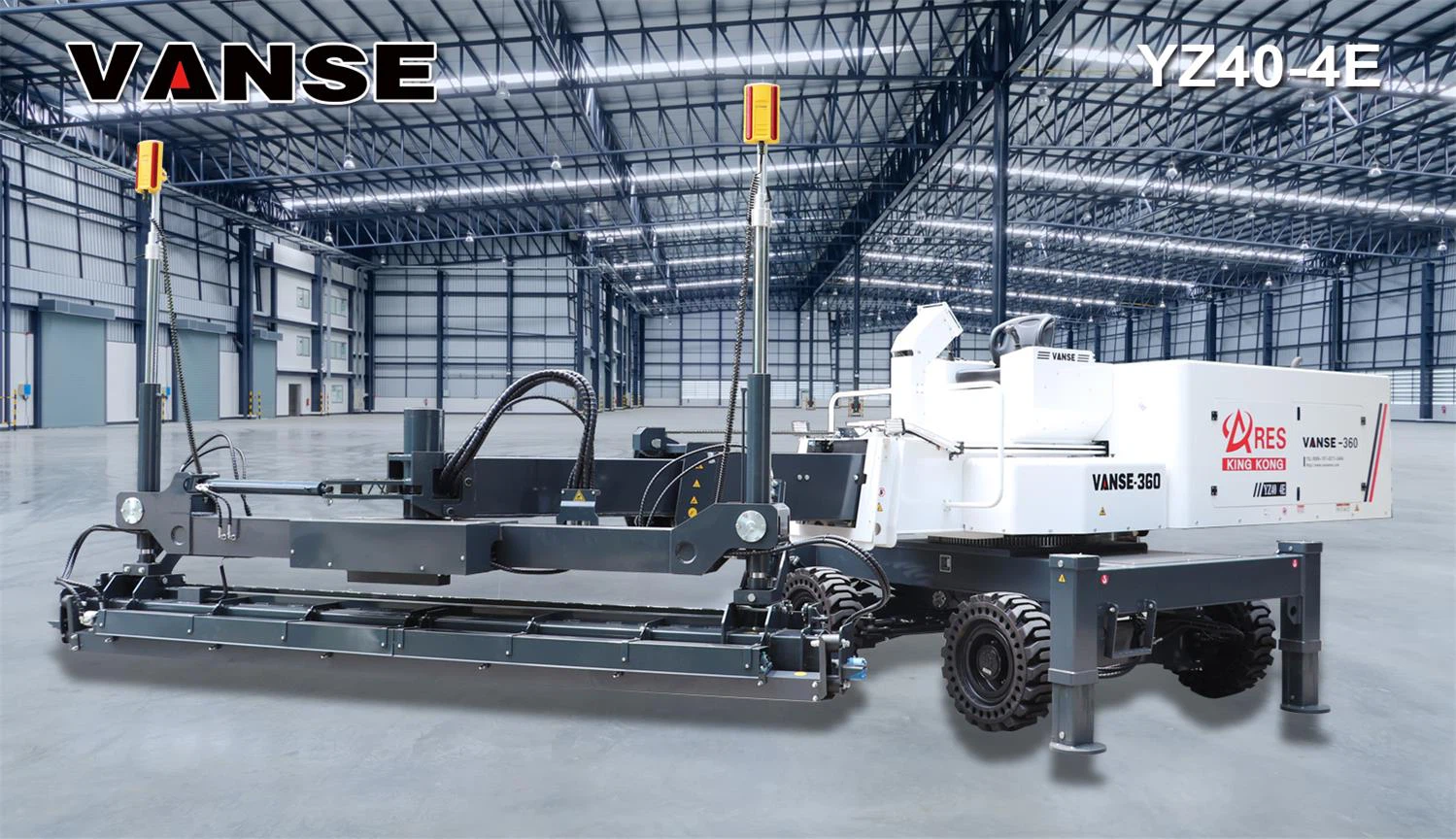

*360° Rotary Platform to enable quick and efficient work.

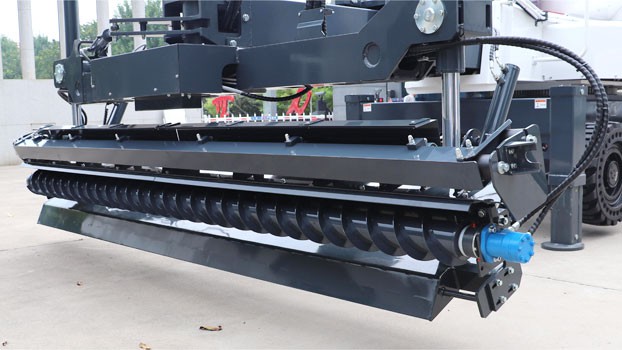

*4 meters wide leveling head with new designed eccentric vibrating beam.
*4.15 meters extra wide screed plate.
*Electric control lever to turn direction, drive.
*Stretch out and draw back the long-boom and rotate.
6 meters max, long boom;

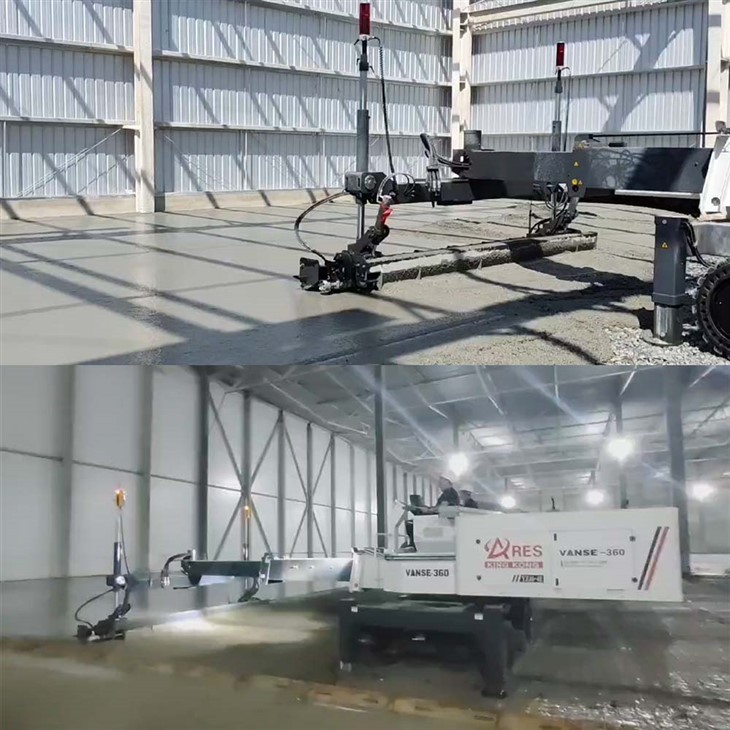

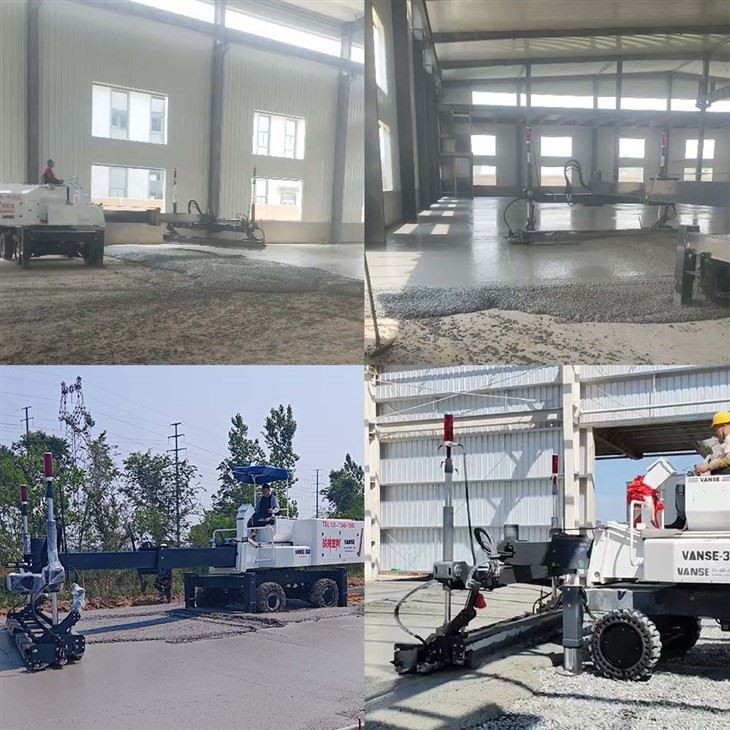

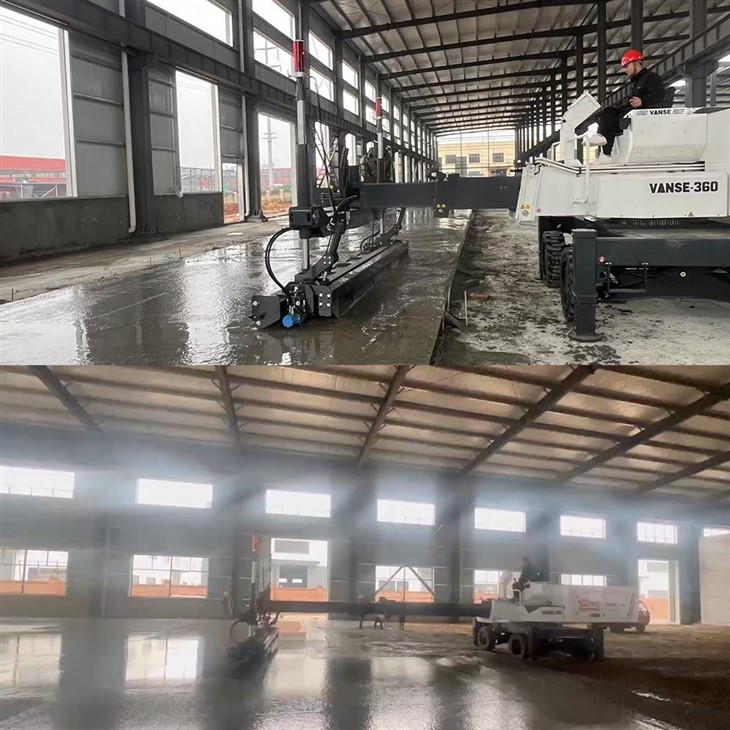

1, Concrete laser screeds are used in concrete floor works, including flat floor works, slop works and double slops works.

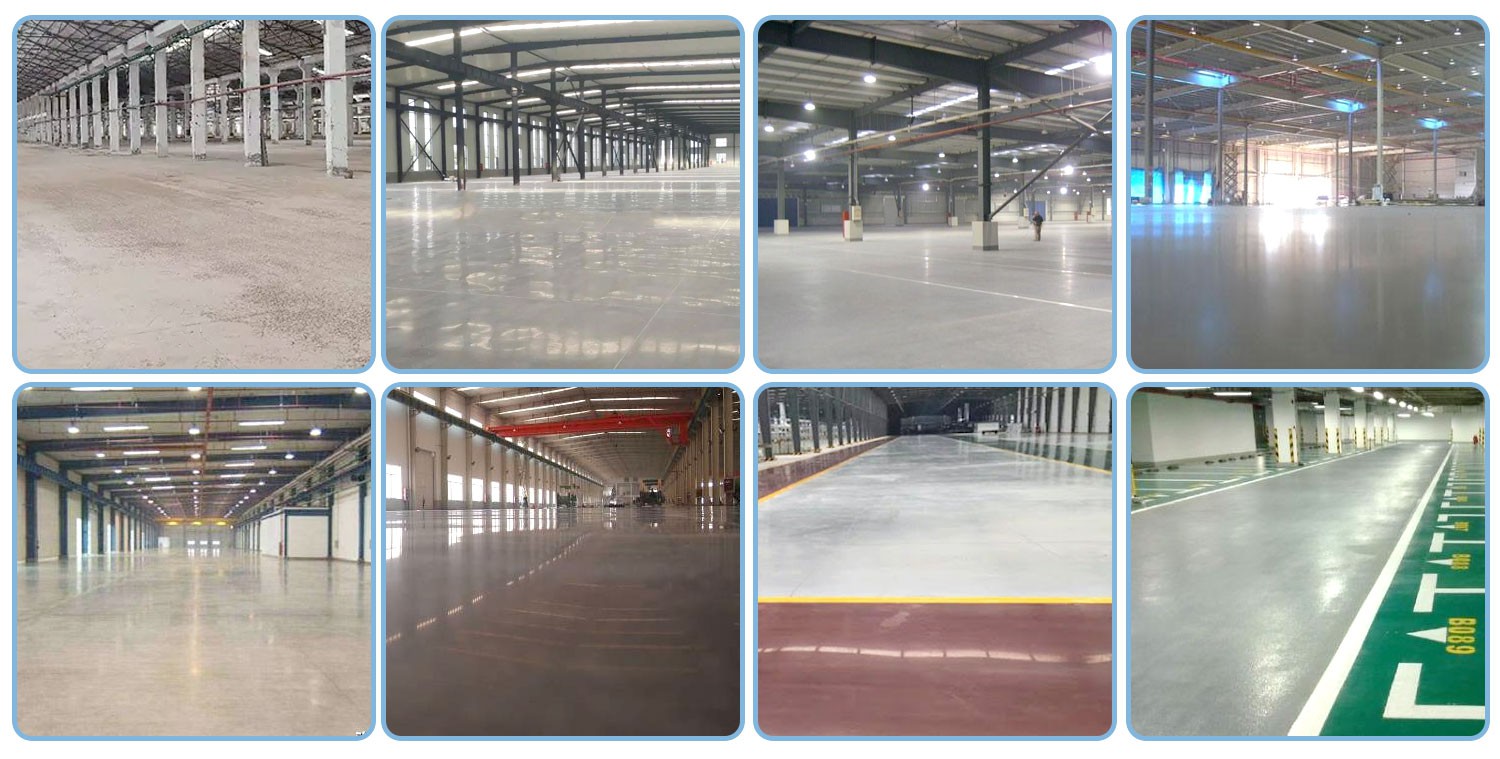

Such as factory, workshop, park, plaza, super market, exhibition hall, container yards, wharf, play ground, square and so on.
2, It has three important functions: Paving the concrete, Leveling the concrete floor, Compacting the concrete floor. It improves the quality of floor.
3, It can level the concrete floor automatically by microcomputer laser scanning.
4, It can improve the flatness of the concrete floor. The height deviation of all concrete floor is below 1.5mm.
5, It can save about 70% of manpower. So it can increase the profit greatly.
6, It can shorten the construction period. It can work quickly and well.
7,Operation is very easy.
8, The drive system is hydraulic drive fully.

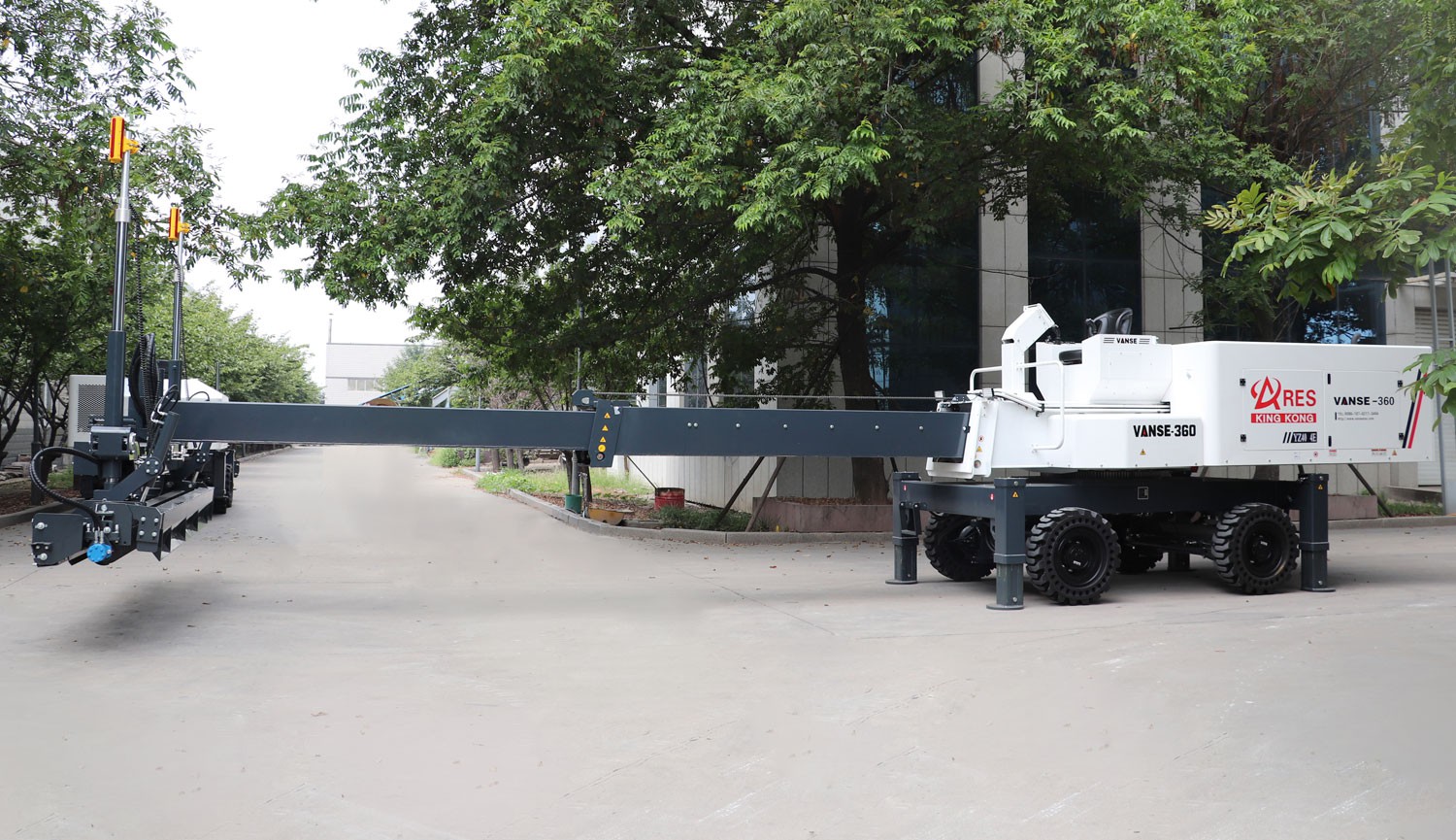

9, The telescopic boom is 6m long, 360 degrees rotary.

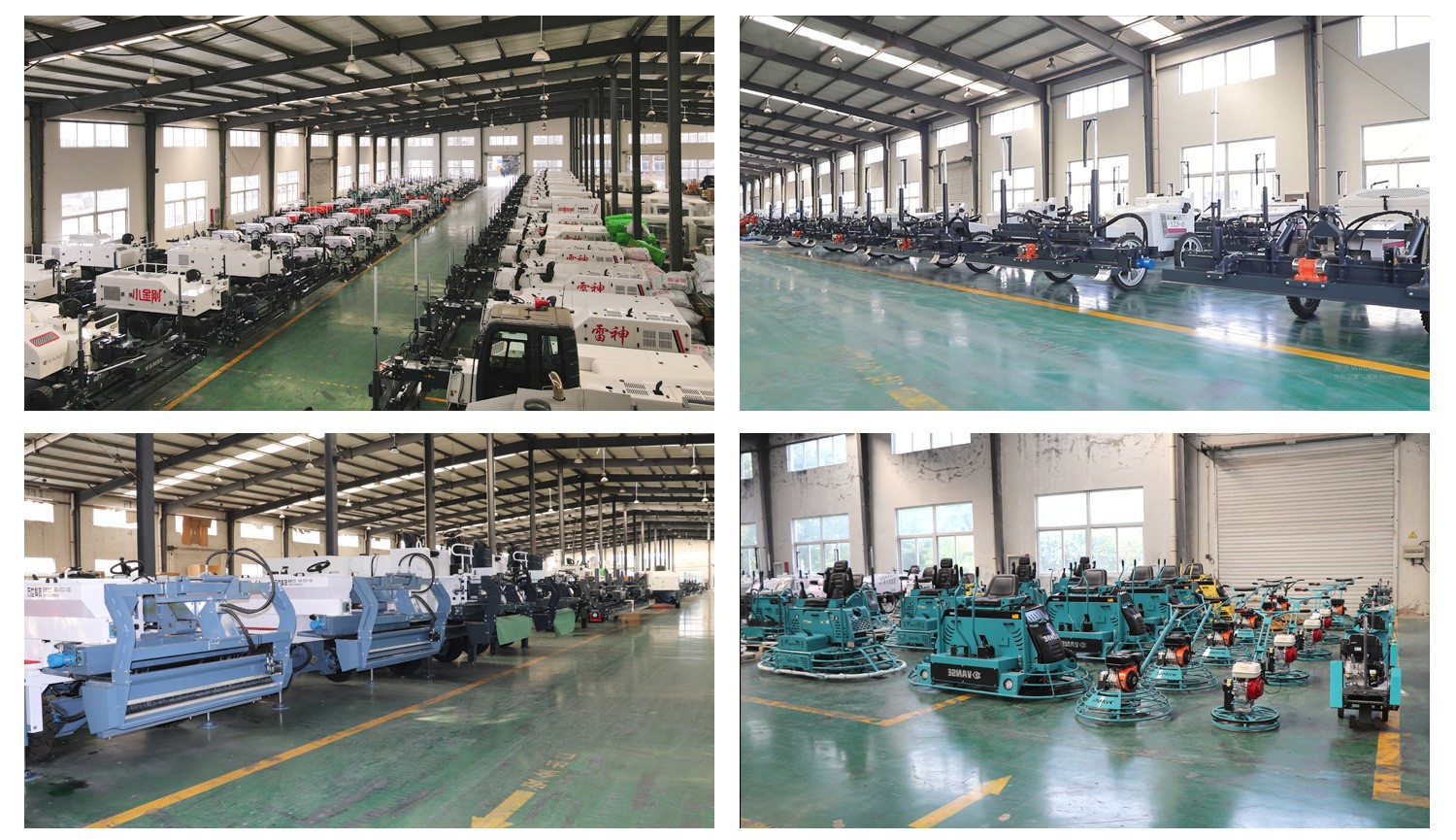

1.We have an independent factory, with 12 years of independent r & d production experience.
2.Strict quality control system, each product will exceed 12 hours of quality inspection, to ensure product quality.
3. For our MACHINE , we have 12 months warranty.
4. Within12 months, if there is some accessory going wrong, we will send you the accessory at once, free of
charge or deliver the spare parts in next order.
5. No responsibility for man-made destroy.
6. If the buyer has any questions from our technical department, we can supply on-line service.
