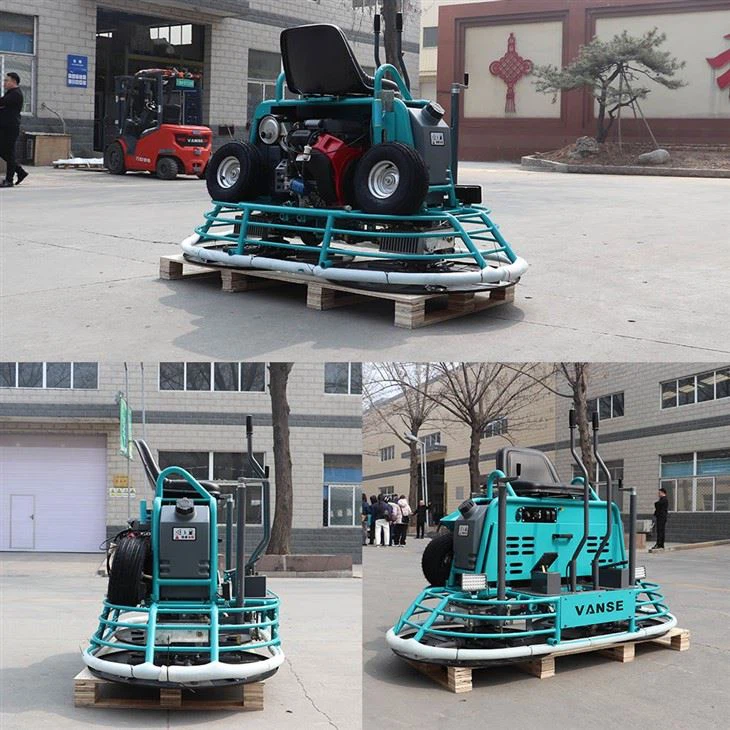

VANSE VS836 Heavy Type 25HP Concrete Floor Polishing Machine Gasoline Engine Ride On Concrete Power Trowel With HONDA Engine

Upon seating, engage the flameout pedal with your left foot and softly press the accelerator with your right. Start the engine, take hold of the joystick with both hands, and allow the machine to run at a slow pace momentarily. Gradually increase the speed to enter normal operation. To advance, extend the joystick outward; to retreat, draw it inward. For a right turn, apply pressure to the right side of the joystick; for a left turn, pull it to the left. Simultaneous push-pull movements of the hands will facilitate clockwise turns, while reversing these actions will result in counterclockwise maneuvers. To idle and halt blade rotation, release pressure from your right foot. Depressing the left foot will shut down the engine, finalizing the operation.

In situations where a disc attachment causes a suction effect, refrain from holding the accelerator to prevent clutch damage. Instead, slightly elevate the throttle and adjust the controls to lessen chassis resistance or withdraw the rear frame to break the suction.

Regularly check the belt tension to maintain optimal performance.

Before initiating operations, ensure the engine throttle cable returns to the lowest idle setting and confirm that the engine can achieve maximum speed when the throttle is fully engaged.

The Weight Is Heavier

Operating a driveable machine significantly diminishes physical exertion compared to handheld units. Its greater mass enhances the compaction effect on the ground, leading to superior concrete density. This not only improves the quality of the surface but also boosts construction efficiency far beyond what is achievable with handheld trowel machines.

Dual Disc Operation

The dual-disc configuration significantly enhances productivity by enabling simultaneous mixing with two discs for rapid processing. This setup increases construction efficiency by 5 to 8 times compared to conventional trowels and reduces labor costs through single-operator functionality.

Equipped with Honda GX690

Featuring a powerful Honda GX690 high-horsepower engine with electric start, the unit delivers robust and dependable performance. The sprinkler system includes copper joints and valves, which help prevent corrosion and ensure longevity.

LED Light

A high-intensity lamp allows for effective operation in low-light conditions.

Pedal Safety Switch

The pedal safety switch enables a rapid engine shutdown, enhancing safety. The throttle control pedal is designed for sensitivity and quick response.

Large Capacity Water Tank

With a 19L capacity for both water and fuel, this equipment is designed for extended continuous operation.

Since its inception in 2013, Shandong Vanse Group has capitalized on the rapid advancement in the concrete industry by focusing on premium, high-quality, and efficient solutions. The company swiftly evolved into a national high-tech enterprise specializing in the research, development, manufacturing, sales, and after-sales service of concrete equipment. Vanse has formed strategic partnerships with notable companies such as Jingdong Logistics, Ningde Times, Great Wall Motor, and China State Construction Engineering Corporation (CSCEC).

The Vanse Group comprises several business units including Vanse Machinery, Wanhui New Energy, Wanli Precast Machinery Manufacturing, Vanse Road and Bridge, and Shanghai Vanse Machinery. Its products are distributed across all 31 provinces, municipalities, and autonomous regions within China and are exported to over 30 countries globally, including the United States, the United Kingdom, Russia, Germany, Saudi Arabia, and Australia.

In 2018, Vanse Group partnered with UK experts to integrate advanced technologies, meeting international standards for ergonomic design and performance, particularly in laser systems. The group also collaborates extensively with educational institutions like Shandong University and Chang'an University, bridging the gap between industry, academia, research, and practical applications.

Committed to visionary thinking, Vanse Group aims to innovate continuously and enhance the quality of life for people around the world.

Embracing the present and envisioning the future, Vanse Group is dedicated to creating a brighter tomorrow together with you!

• Operator Training: Operators must undergo comprehensive training before using the machine, becoming proficient with the steering lever and the pedal extinguishing device, and thoroughly reviewing the safety operation and maintenance guidelines.

• Protective Gear: Proper attire is mandatory, including long-sleeved shirts, pants, work boots, gloves, safety helmets, protective eyewear, and ear protection. The site supervisor should determine additional protective measures based on specific circumstances.
• Engine Instructions: Prior to startup, operators should familiarize themselves with the engine's operating manual and adhere to the specified procedures.
• Pre-Startup Checks: Verify that the engine lubricant is at the required level and fill the fuel tank with fuel (preferably above 90# gasoline). Ensure the engine is in a flameout state and there are no open flames nearby. Conduct flameout checks every 2-2.5 hours and refill fuel as needed, checking for leaks in the fuel lines and switches. No open flames should be present during these checks.
• Water Tank Maintenance: Fill the water tank with clean water. In cold environments where freezing is a concern, use antifreeze to prevent damage to pipes, pumps, and valves. If the water pump fails to draw water or if the pump freezes, avoid pressing the spray button for more than 15 seconds consecutively to prevent pump damage.
• Pedal Usage: Frequent disengagement and re-engagement of the accelerator pedal during operation is prohibited to prevent clutch overheating and subsequent burnout.
• Safe Operating Environment: Start and park the machine in a secure area free of protruding obstacles, rocks, or debris to avoid machine damage.
• Exhaust Heat Warning: The engine exhaust pipe is extremely hot during operation and shortly after shutdown. Touching the exhaust or placing objects near it is strictly forbidden.
• Battery Maintenance: The maintenance-free battery's observation port indicates green for normal condition, black for requiring charging, and white signifies immediate replacement.
