YZ30-4E MEDIUM-SIZED TELESCOPIC ARM LASER LEVELING MACHINE
2. One click leveling of the body allows for easy handling of various complex road surfaces.
3. The automatic leveling system is not only more precise, but also reduces the operator's labor force.
4. Standard cleaning system with a maximum cleaning pressure of 150Bar, large capacity water tank, convenient and fast flushing.
5. Solid rubber tire with process grooves, resistant to punctures and more comfortable.
6. Optional inflatable wide tires.
7. More comprehensive and automated random accessories to meet diverse needs and more convenient machine maintenance.
8. The head comes standard with soft landing function.
9. High-power engine from an internationally renowned brand, highly efficient and energy-saving.
10. The hydraulic system uses the internationally renowned brand Danfoss, with excellent performance.
11. Internationally renowned brand laser system, accurate and fast.
12. High-power engine from an internationally renowned brand, highly efficient and energy-saving.
Send Inquiry
Product Details ofYZ30-4E MEDIUM-SIZED TELESCOPIC ARM LASER LEVELING MACHINE
Products Show
Product Details

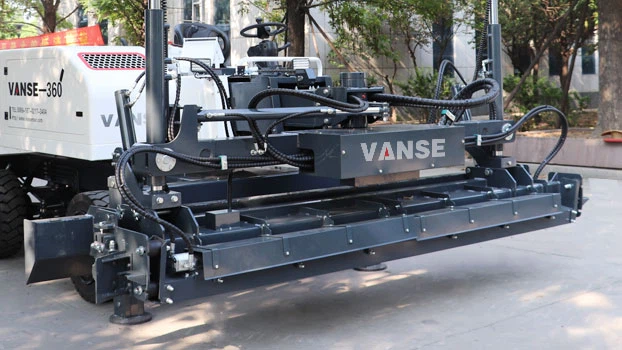

FLAT HEAD
The 3-meter leveling machine head can rotate and swing, and can complete the leveling of 18 square meters of concrete each time. Paving slabs, vibrating beam spiral paving.
4 WHEELS TURNING
Hydraulic support.
CONTROL PANEL
The flexible and efficient hydraulic system can control the height of the cutting board and the cloth spiral to maintain leveling, and has higher advantages in construction efficiency and flatness.

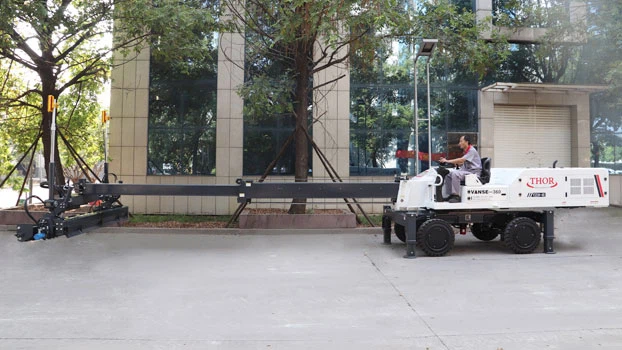

360 DEGREE ROTATING TELESCOPIC ARM
Up to 6 meters long, the rotating platform is fast and efficient, and the 3-meter leveling head can rotate and swing, which can complete the leveling of 18 square meters of concrete each time.

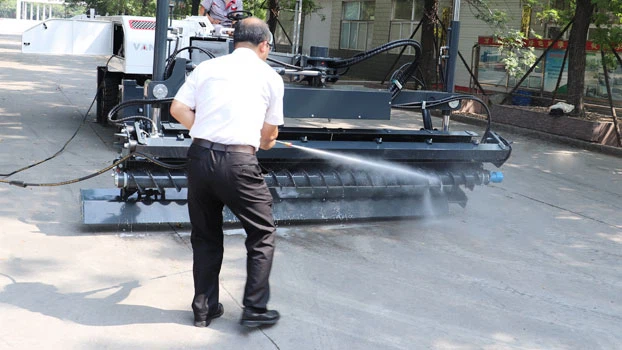

STANDARD CLEANING SYSTEM
Standard cleaning system with a maximum cleaning pressure of 150Bar, large capacity water tank, convenient and fast flushing.
CRABS WALK SIDEWAYS
Improve work efficiency, save time and effort.
Specification
| Engine model | YANMAR 4TNV94L | Telescopic arm | 6m/ 19.69ft long, 360°turn |
| Power | 35kW/ 48HP | Tire | Solid non-slip tires (optional inflatable tires) |
| Fuel | Diesel | Leveling head swing | Left swing: 45°; Right swing: 75° |
| Fuel tank capacity | 100L | Paving mode | Hydraulic spiral conveyor paving |
| Exciting force | 4500N (MAX) | Steering mode | Two wheel, four wheel, crab steering. |
| Leveling width | 3.1m/ 10.17ft | Outline Dimension | 5550*3700*1870mm/ 18.21*12.14*6.14ft |
| Net weight | 5800kgs/ 12787lbs | Transportation size | 8000*2200*1970mm/ 26.25*7.22*6.46ft |
Partner & Project Cases
Company Information
FAQ
| 1. What are the power requirements for the laser leveling machine? |
| • Our laser leveling machines typically operate on standard industrial power supplies. Specific power requirements vary by model, so please refer to the technical specifications or contact us for more details. |
| 2. How does the laser leveling machine improve the quality of the concrete surface? |
| • The laser leveling machine uses advanced laser technology to achieve a highly precise and level concrete surface. This results in better surface quality, reduced labor costs, and increased efficiency. |
| 3. What is the maximum working width of the laser leveling machine? |
| • The maximum working width varies by model. Our standard models can handle widths up to 4 meters, but we also offer custom solutions for larger projects. Please consult the product specifications or contact us for more information. |
| 4. Can the laser leveling machine be used on both indoor and outdoor projects? |
| • Yes, our laser leveling machines are designed for both indoor and outdoor applications. They are built to withstand various environmental conditions and can be used on a wide range of construction sites. |
| 5. What types of concrete can the laser leveling machine handle? |
| • Our machines are versatile and can handle various types of concrete, including standard concrete, self-leveling concrete, and specialized mixes. The machine's settings can be adjusted to accommodate different mixtures. |
