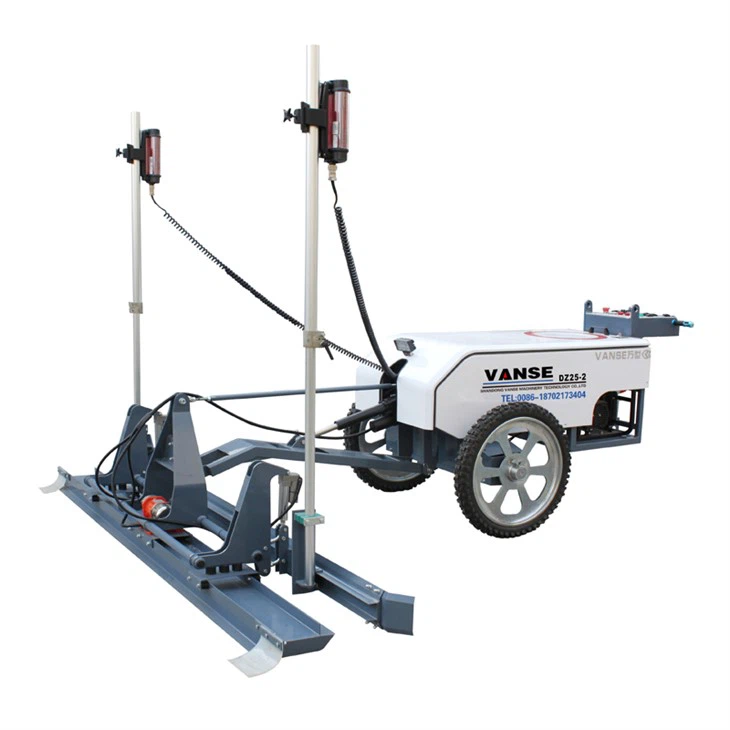

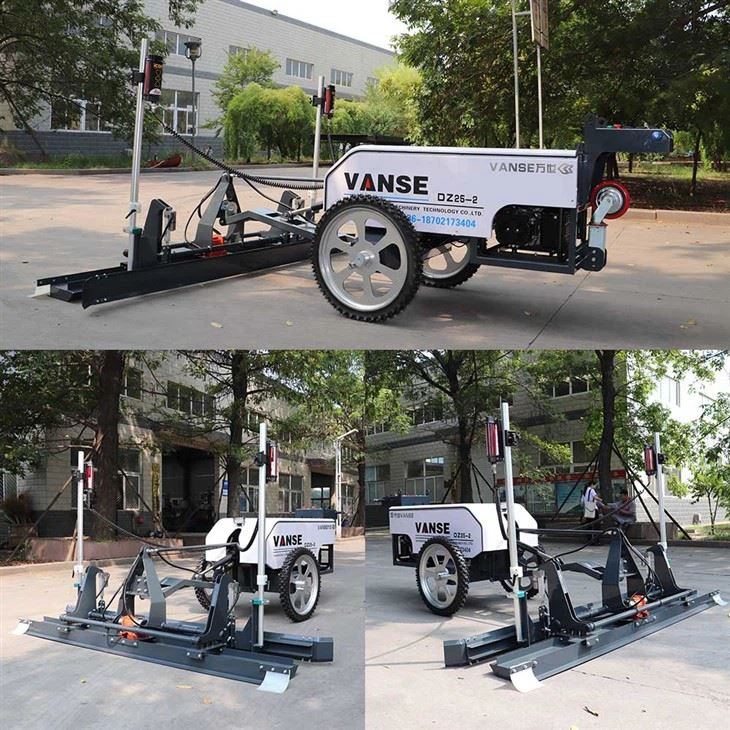

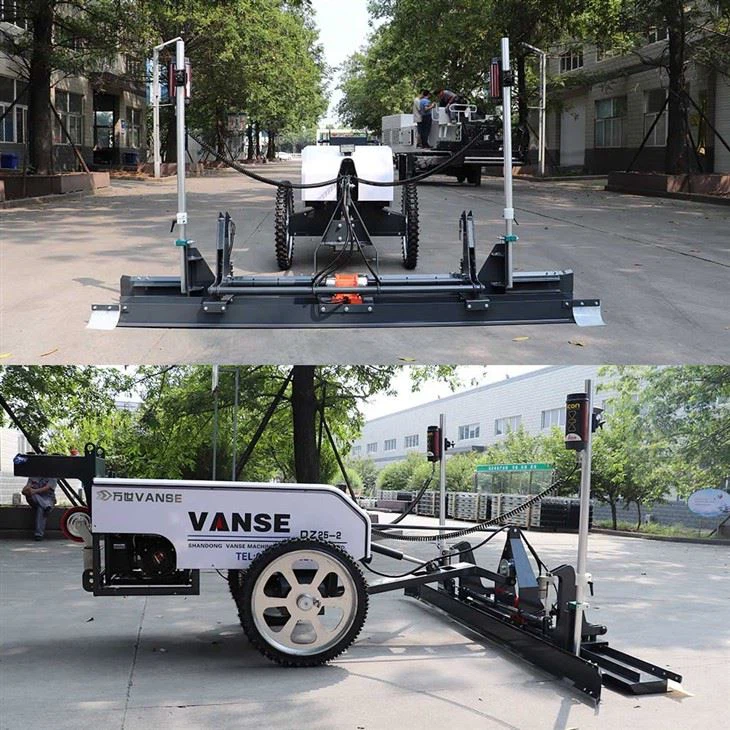

VANSE DZ25-2 Efficient Concrete Laser Leveling Machine For Sale
2. All electric drive, fast response. Green energy saving.
3. Fixed speed walking, not only more accurate, but also reduce the operator's labor.
4. Beautiful appearance.
Send Inquiry
Product Details ofVANSE DZ25-2 Efficient Concrete Laser Leveling Machine For Sale
- As a flagship model tailored for contemporary concrete flooring construction, the VANSE DZ25-2 concrete laser leveling machine redefines efficiency and precision in the industry. This walk-behind construction equipment is engineered to excel in diverse scenarios, including manufacturing facilities, commercial parking garages, urban plazas, and airport terminals. What sets it apart is its innovative two-wheel independent servo drive mechanism, which delivers seamless maneuverability-supporting smooth forward/backward movement, agile turns, and stepless speed adjustment to adapt to varying construction rhythms.
- A standout feature of the DZ25-2 is its decoupled design between the leveling head and the machine body. This unique structure ensures that the construction surface remains perfectly level even when operating on undulating or sloped substrates, eliminating the impact of uneven terrain on finished quality. At its core lies a cutting-edge laser closed-loop control system, paired with high-precision Leica laser transmission and reception components. The microcomputer-driven system performs real-time scanning and dynamic scraper height adjustments, completely eradicating cumulative errors in large-scale construction and achieving exceptional flatness and elevation accuracy that meets strict industry standards.
- Powered by a full-electric drive system and a 24V circuit configuration, the machine boasts rapid response times and remarkable energy efficiency-aligning with modern green construction demands. It supports both automatic and manual operation modes, enabling a single operator to handle complex tasks with ease. Complemented by rugged puncture-proof tires, a dependable SAWAFUJI gasoline generator, and an intuitive human-machine interface, the DZ25-2 strikes the perfect balance between durability, operability, and performance.
FEATURES
Intelligent Servo Drive System
Equipped with dual independent servo motors for the two wheels, the machine offers stepless speed regulation, ensuring stable movement and precise steering. This design optimizes both construction efficiency and operational control, making it suitable for both large-area paving and detailed edge work.
High-Frequency Vibration Technology
The integrated leveling head features a high-frequency vibration motor operating at 3,500 cycles per minute. This intense vibration ensures concrete achieves uniform density, effectively minimizing common issues such as hollowing, peeling, and cracking, while enhancing the overall structural integrity of the flooring.
Precision Laser Calibration
The laser control system conducts real-time elevation calibration through the transmitter and receiver, automatically adjusting the leveling head height to maintain construction precision within ±2mm. This level of accuracy ensures consistent quality across the entire project site, regardless of its size.
Eco-Friendly Operation
Adopting pure electronic control, the DZ25-2 operates with low noise and zero emissions, complying with environmental protection standards for green construction. It provides a cleaner, quieter working environment while reducing carbon footprint.
SPECIFICATIONS
| Project | Specification |
| Leveling Width | 2500 mm |
| Exciting Force | 2000 N |
| Walking Speed | 0-36 m/min (continuously adjustable) |
| Engine Power | 2.8kW (gasoline-powered) |
| Fuel Tank Capacity | 17 L |
| Machine Net Weight | Approximately 325 kg |
| Working Efficiency | 200–300 m²/h |
| Tire Type | Solid non-slip tires (optional inflatable wide tires) |
✅ Application Scenarios & Construction Highlights
Broad Material Compatibility: Suitable for ordinary concrete, steel fiber-reinforced concrete, and other common flooring materials. It can operate effectively even when the base unevenness is ≤50mm, reducing the need for extensive pre-construction site preparation.
Integrated Construction Process: Combines scraping, vibrating, and leveling into a single seamless operation, drastically reducing manual intervention and shortening project timelines. This integrated approach also minimizes the risk of human error, ensuring consistent results.
Long-Term Reliability: Key components such as vibrator bolts and joint heads are designed with regular maintenance reminders, simplifying upkeep procedures. This thoughtful design extends the machine's service life and ensures stable performance over long-term use.
Cost-Effective Solution: By improving construction efficiency, reducing labor requirements, and minimizing material waste, the DZ25-2 delivers significant cost savings throughout the project lifecycle. It also reduces the need for post-construction repairs, lowering overall maintenance costs.
🔧 Why Choose VANSE DZ25-2?
With years of experience in manufacturing and servicing construction machinery, VANSE is dedicated to providing customers with high-quality products and comprehensive after-sales support. The DZ25-2 concrete laser leveling machine embodies our commitment to innovation, precision, and customer satisfaction. Whether you're working on a large industrial project or a small commercial space, the DZ25-2 delivers the performance, reliability, and efficiency you need to succeed.

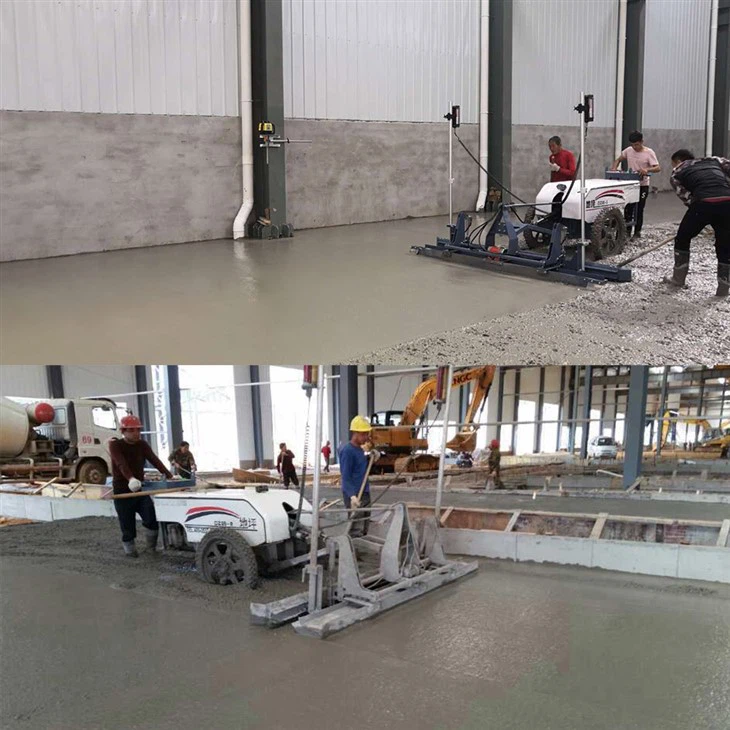

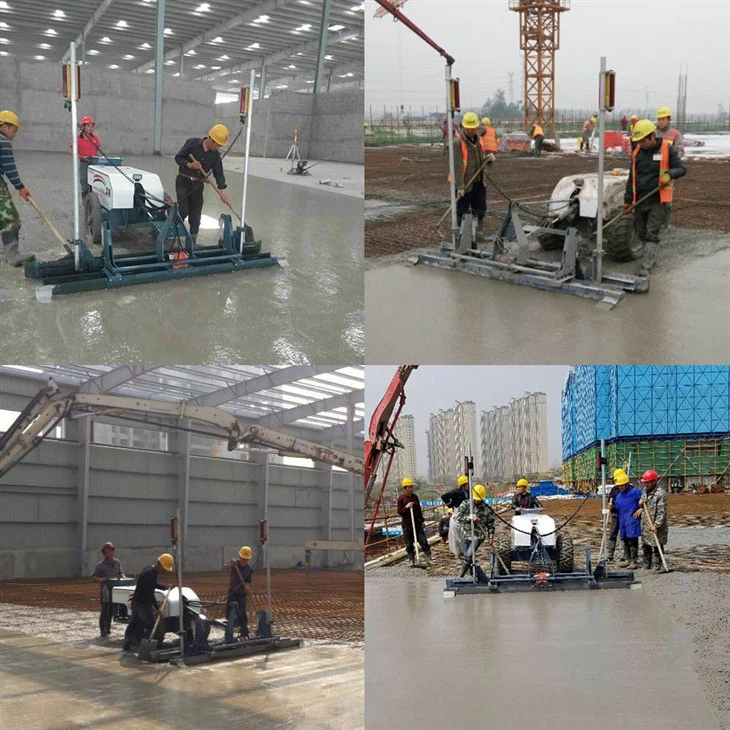

CONSTRUCTION CASES
PARTNER
Certification & Cooperation Partners
VANSE holds ISO 45001, ISO 9001, ISO 14001, and CE certifications, demonstrating our commitment to quality, safety, and environmental responsibility. Our trusted partners include renowned brands such as CALTEX, Trimble, GEELY AUTO, Xiaomi, Walmart, Yonghui Superstores, SAMSUNG, Shandong High-Speed, BYD, Jinmailang, China Communications Construction, China State Construction Engineering, Sinopec, CATL Contemporary Amperex Technology Co., Limited, HONDA, Leica, Evergrande Group, JD.COM, SF Express, China Railway Engineering Corporation, and Changan Automobile.
