DZ30-2 TWO-WHEEL WALK-BEHIND LASER LEVELING MACHINE
2. All electric drive, fast response. Green energy saving.
3. Fixed speed walking, not only more accurate, but also reduce the operator's labor.
4. Wider working head, higher working efficiency.
Send Inquiry
Product Details ofDZ30-2 TWO-WHEEL WALK-BEHIND LASER LEVELING MACHINE
Shandong VANSE Machinery Concrete Laser Leveling Machine

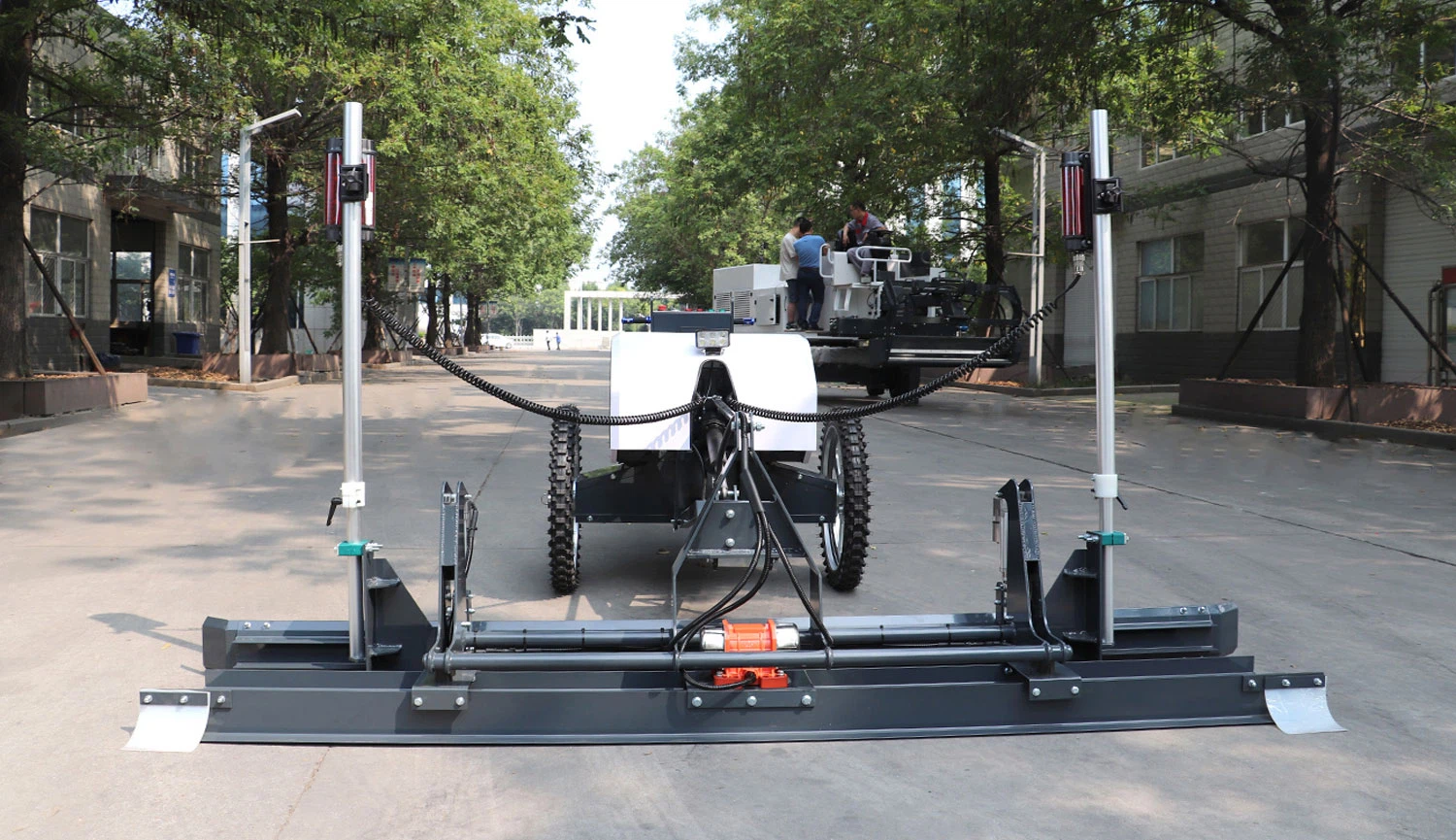

The DZ30-2 two-wheel walk-behind small concrete laser leveling machine, with a 3-meter working range, uses a laser and computer control system for automatic leveling. Its leveling head, integrated with a scraper, vibrator, and leveling plate, can finish all leveling, smoothing, vibrating, and compacting tasks in one go.
| Engine model | SAWAFUJI | Vibration system | Electric motor |
| Power | 5.0kW | Tire | Solid non-slip tires (with inflatable wide tires) |
| Fuel | Gasoline | Exciting force | 2000N |
| Fuel tank capacity | 28L | Net weight | 580kgs/ 1279lbs |
| Leveling width | 3m/ 9.84ft | Dimensions | 3370*3230*1160mm/ 11.06*10.60*3.81ft |
1. High-performance engine
- Brand and model: The HONDA engine of the Japanese SAWAFUJI brand is adopted, which has strong power and stable performance.
- Durability: The engine is designed to be sturdy and can maintain stable operation in a high-intensity working environment, suitable for long-term operation.
- Fuel efficiency: The engine has high fuel efficiency, which can reduce fuel consumption while ensuring power and reduce operating costs.
2. Laser receiving system
- High-precision receiver: Equipped with Leica laser receiver imported from Switzerland, it can automatically control the plane and two-way slope.
- Signal reception: By receiving the signal of the laser transmitter, high-precision ground leveling and drainage requirements are achieved.
- Complex terrain adaptation: For complex-shaped ground and high drainage requirements, a special ground processing system is provided to ensure construction quality.
3. High-frequency pulse compaction vibrator
- Material and design: The vibration plate is made of special alloy material and welded with wear-resistant materials to extend the service life.
- Overall structure: The whole machine adopts an integrated design, and the base and dust cover are molded in one step to enhance the sealing performance.
- Construction effect: Effectively solve the problems of ground hollowing, peeling and unevenness, and improve the construction quality and flatness.
4. Non-fixed leveling head
- Design purpose: Suitable for small commercial, upper deck and residential projects, with high precision of laser control.
- Adaptability: The non-fixed leveling head and independent suspension design can adapt to the leveling work of uneven ground.
- Material adaptability: Compatible with cement mixtures of different slumps to ensure construction effect.
