VANSE YZ40-4E Factory Price Large Telescopic Boom Concrete Floor Laser Leveling Machine
2. One click leveling of the body allows for easy handling of various complex road surfaces.
3. The automatic leveling system is not only more precise, but also reduces the operator's labor force.
4. Standard cleaning system with a maximum cleaning pressure of 150Bar, large capacity water tank, convenient and fast flushing.
5. Solid rubber tire with process grooves, resistant to punctures and more comfortable.
6. Optional inflatable wide tires.
7. More comprehensive and automated random accessories to meet diverse needs and more convenient machine maintenance.
8. The head comes standard with soft landing function.
9. High-power engine from an internationally renowned brand, highly efficient and energy-saving.
10. The hydraulic system uses the internationally renowned brand Danfoss, with excellent performance.
11. Internationally renowned brand laser system, accurate and fast.
Send Inquiry
Product Details ofVANSE YZ40-4E Factory Price Large Telescopic Boom Concrete Floor Laser Leveling Machine

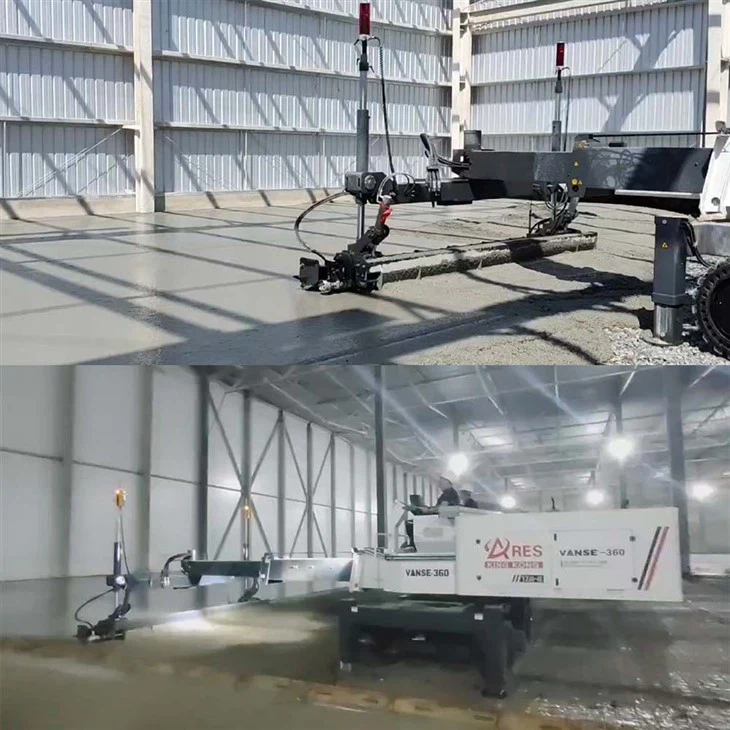

TELESCOPIC CONCRETE LASER LEVELING MACHINE
Products Show
Product Details
FLAT HEAD
The 4-meter leveling machine head can rotate and swing, and can complete the leveling of 24 square meters of concrete each time. Paving slabs, vibrating beam spiral paving.
4 WHEELS TURNING
● Hydraulic support: One key lifting of hydraulic support legs.
● Steering mode : Front wheel / four wheel / sideward move.
CONTROL PANEL
The flexible and efficient hydraulic system can control the height of the cutting board and the cloth spiral to maintain leveling, and has higher advantages in construction efficiency and flatness.
WORK HEAD TURNS LEFT
Turn the work head to the left 45°~50°.
360 DEGREE ROTATING TELESCOPIC ARM
Up to 6 meters long, the rotating platform is fast and efficient, and the 4-meter leveling head can rotate and swing, which can complete the leveling of 24 square meters of concrete each time.
ENGINE
Brand Yanmar 4TNV98T engine (the brand and model of engine can meet your requirements), strong power and stable performance. Durable, sturdy and stable performance in high intensity work.
LASER RECEIVER SYSTEM
It can automatically control the plane and bi-directional slope receiving the signal from the laser transmitter. For complex shaped ground with high drainage requirements, the shaped ground treatment system is also available.
Specification
| Engine model | YANMAR 4TNV98T | Telescopic arm | 6m/ 19.69ft long, 360°turn |
| Power | 57kW /78HP | Tire | Solid non-slip tires (optional inflatable tires) |
| Fuel | Diesel | Leveling head swing | Left swing: 45°; Right swing: 75° |
| Fuel tank capacity | 140L | Paving mode | Hydraulic spiral conveyor paving |
| Exciting force | 5600N (MAX) | Steering mode | Two wheel, four wheel, crab steering |
| Leveling width | 4m/ 13.12ft | Dimensions | 6000*4560*2550mm/ 19.69*14.96*8.37ft |
| Net weight | 8000kgs/ 17637lbs | Transportation size | 9100*2300*2560mm/ 29.86*7.55*8.40ft |
Partner & Project Cases
Company Information
Founded in 2013, Shandong Vanse Group rode the wave of the concrete industry's boom. It stuck to high-end, quality, and efficient growth, swiftly becoming a national high-tech firm in concrete equipment R&D, manufacturing, sales, and service. Partnering with the likes of JD Logistics, CATL, Great Wall Motor, and CSCEC, Vanse's footprint spans across China's 31 provinces and over 30 overseas countries, including the US, UK, and Russia.
Comprising divisions like Vanse Machinery and Wanhui New Energy, the group diversified. In 2018, a tech pact with UK experts brought in global know-how, aligning human-centered design with laser tech. Ties with Shandong and Chang'an Universities bridged industry and academia.
Vanse is always future-focused, eager to enhance lives. Seize today, shape tomorrow; let's build a bright future hand in hand!
WORKSHOP
CERTIFICATION
EXHIBITION
FAQ
| 1. What if there are product issues? |
| If you encounter any problems, record a video and send it to us. Our engineers will analyze it to find the best fix. During the warranty period, we'll replace faulty components for free. In some countries, our dealers are available to assist with technical problems you can't handle alone. |
| 2. How do you ensure product quality? |
| Quality is at the heart of our manufacturing. Every product undergoes a strict quality control process: from inspecting raw materials, components, and semi-finished products, to testing the finished product's performance, and a final random inspection before delivery. |
| 3. What should we do if parts break? |
| We suggest customers buy common accessories based on their local environment. If other parts break, we'll send replacements via international express with your next order. |
| 4. Do your products have a warranty? |
| Most of our products come with a one-year warranty. |
| 5. Can we brand the machine and customize it? |
| Yes, of course. We offer customization, allowing you to put your trademark on the machine and tailor it to your needs. |
| 6. What's the delivery time? |
| Typically, we need 3 - 5 days to produce the machine after prepayment, and another 2 days to send it to the port. |
| 7. How are the machines packaged? |
| Generally, we use plywood cases or pallets for safe transportation. For large machines, we often use iron frames for added protection. |
