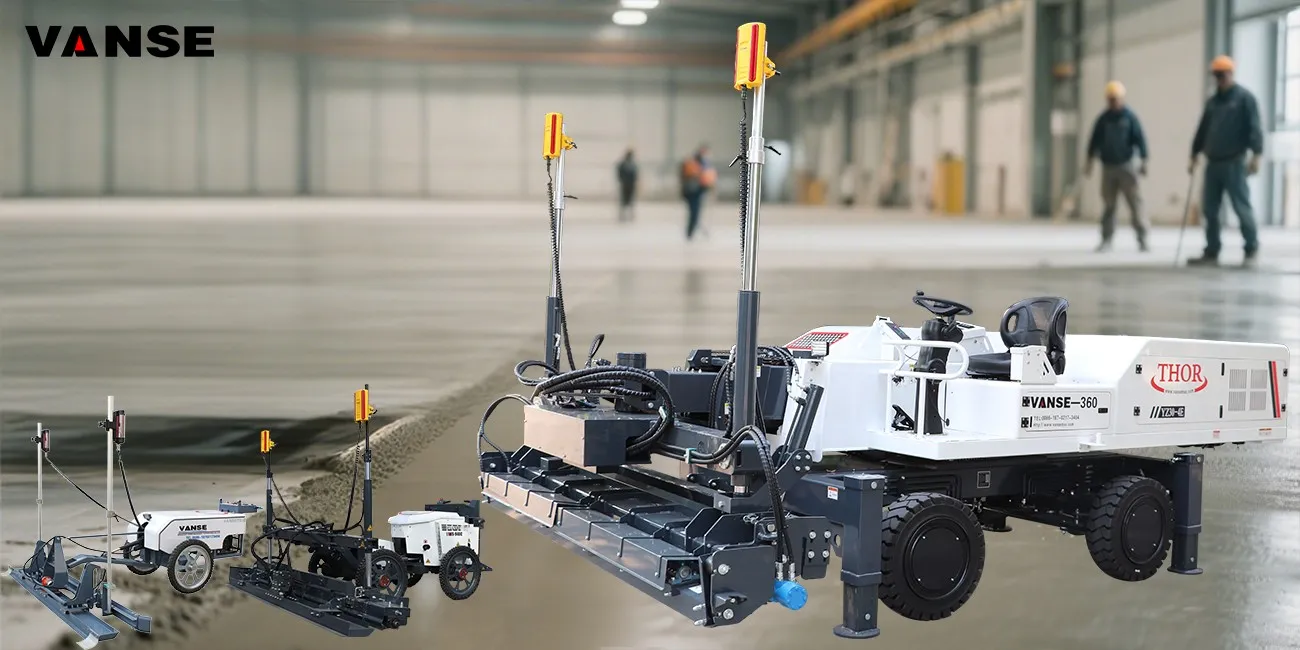

What benefits does a concrete laser leveling machine offer in comparison to conventional leveling approaches?

Concrete laser leveling machine is an efficient and precise equipment in modern concrete construction. Compared with traditional manual leveling (such as ruler, scraper, vibrator) or mechanical leveling (such as simple leveling by paver), its advantages are mainly reflected in the following dimensions:


1. Significant improvement in flatness and precision

Laser control, unified global benchmark: The laser leveling machine establishes a horizontal reference plane through a laser transmitter, and the leveling head always works with this reference as a reference, avoiding the local height difference caused by manual visual errors and reference line offset (such as loose wire) in traditional methods.
Accuracy can reach millimeter level: The flatness error of traditional manual leveling is usually above 5-10mm, while the laser leveling machine can control the error within 3mm, which is especially suitable for scenes with high flatness requirements (such as industrial plants, storage and logistics floors, precision instrument workshops, etc.), which can reduce the risk of sanding and cracking of the ground in the later stage, and also provide a more stable foundation for subsequent epoxy flooring, wear-resistant flooring and other processes.


2. Construction efficiency is greatly improved

The single-shift operation area doubles: A traditional manual leveling team (3-5 people) can complete about 300-500 square meters per day, while a laser leveling machine (operated by 1-2 people) with concrete conveying equipment can complete 1000-2000 square meters in a single shift, and the efficiency is increased by 2-4 times.
Integrated operation, reducing processes: The laser leveling machine integrates the functions of vibration, leveling, and slurry. The traditional method of "paving - vibration - scraping - slurry" requires multiple people to cooperate, and the laser leveling machine can complete it at one time, shortening the process connection time.


3. Reduce manual dependence and reduce labor intensity

Save labor costs: Traditional leveling requires a large number of workers to work together (such as paving, measuring, scraping, finishing, etc.), while the laser leveling machine only requires 1 operator and 1-2 auxiliary workers (handling corners, filling materials), which greatly reduces the number of workers, especially suitable for the current situation of labor shortage in the construction industry.
Reduce labor intensity: Traditional manual leveling requires bending over and repeatedly pushing and pulling the scraper bar, which is labor-intensive, and long-term operation is prone to cause occupational diseases such as lumbar muscle strain; laser leveling machines are operated through mechanical automation, and the labor intensity of workers is significantly reduced.


4. Concrete density is higher and quality is more stable

High-frequency vibration reduces bubbles and honeycombs: The leveling head of the laser leveling machine is equipped with a high-frequency vibrator (the vibration frequency can reach 3000-5000 times/minute), which can fully discharge the air in the concrete, avoid local leakage and lack of vibration caused by uneven manual operation of traditional vibrating rods, and improve the density and strength of concrete.
Uniform slurry lifting effect: The leveling head completes slurry lifting simultaneously during the leveling process, making the surface cement mortar more evenly distributed, reducing the local thinning or overdrying caused by traditional manual slurry lifting, which is conducive to subsequent surface finishing and enhancing surface wear resistance.


5. Adapt to complex working conditions and have a wider range of applications

Capability of large slope construction: Some laser levelers support slope adjustment (0-5% or even higher), which can be used in scenes with slope requirements such as ramps and sloping roofs. Traditional manual leveling is difficult to accurately control the slope.
Large area seamless construction: For ultra-large area concrete (such as large factory buildings and airport runways), laser levelers can operate continuously, reduce joint errors caused by manual segmented construction, and improve overall flatness.
Adaptability to harsh environments: The laser system is less affected by weather (such as strong light and breeze), while manual leveling is prone to visual errors under strong light, and strong winds will affect the stability of the baseline.


6. Better long-term economy

Reduce later maintenance costs: Due to high flatness and good density, the probability of cracking and sanding of concrete floors is reduced, and subsequent repair and maintenance costs are reduced.
Shorten construction period and accelerate capital turnover: Efficient construction can complete project nodes ahead of schedule, reduce indirect costs such as equipment rental and labor management, and especially for large projects, the time cost savings are more significant.


Summary

The concrete laser leveling machine surpasses the traditional leveling method in terms of accuracy, efficiency, quality, cost, etc. through "laser precision control + mechanical automation operation", and is especially suitable for projects with high requirements for ground quality and large construction areas. Although the initial equipment investment is high, in the long run, the comprehensive benefits it brings (reducing rework, saving labor, shortening construction period, etc.) can significantly improve the competitiveness of construction.
