VANSE YZ28-4S Four Wheels Concrete Laser Leveling Machine
🌻1. Honda engine, reliable and fuel-efficient.
🌻2. Walking at a constant speed not only makes it more precise, but also reduces the operator's labor force.
🌻3. Standard anti slip system.
🌻4. Quick elevation and rapid detection device.
🌻5. Equipped with two types of tires, suitable for different working conditions.
Send Inquiry

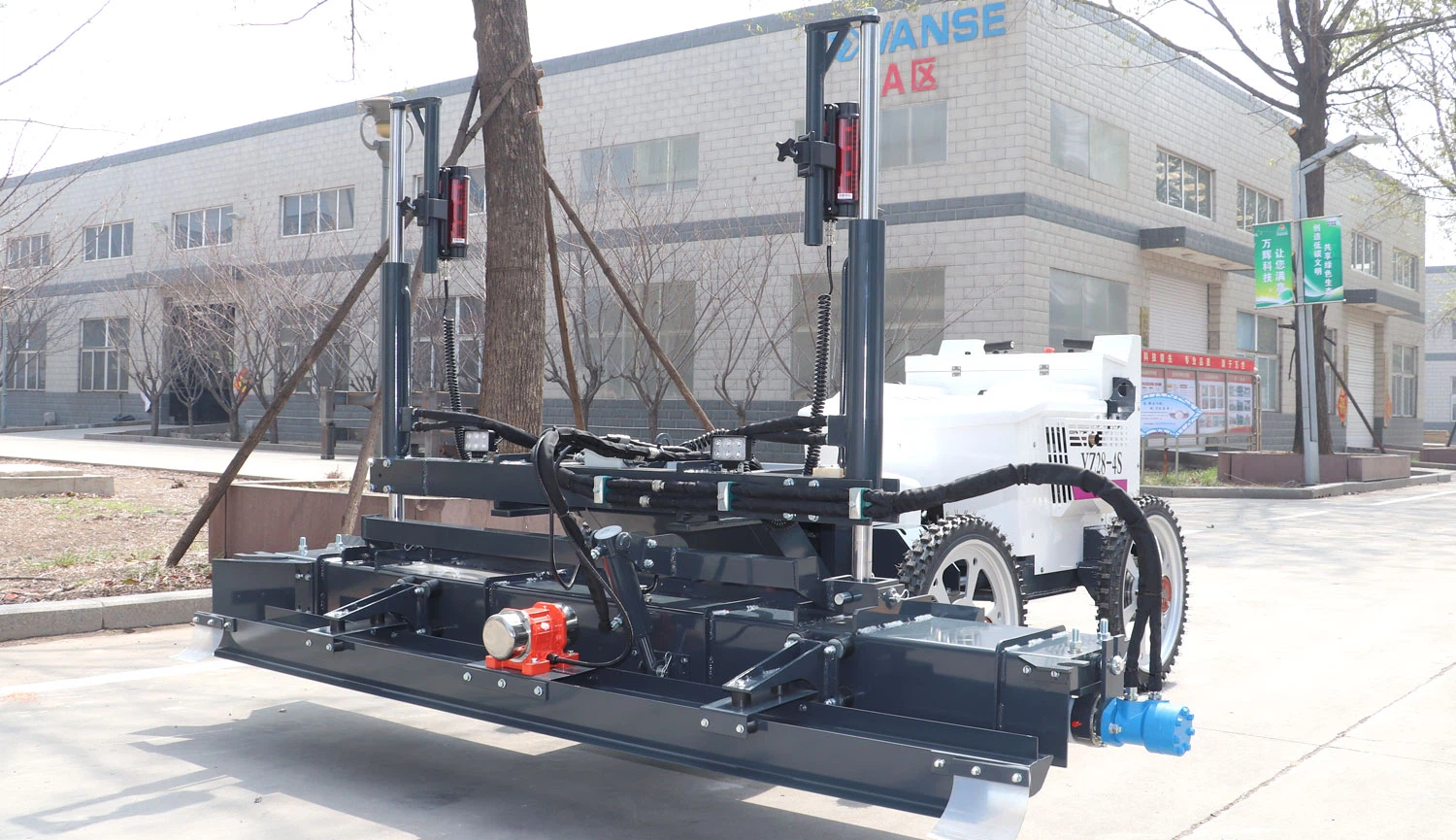

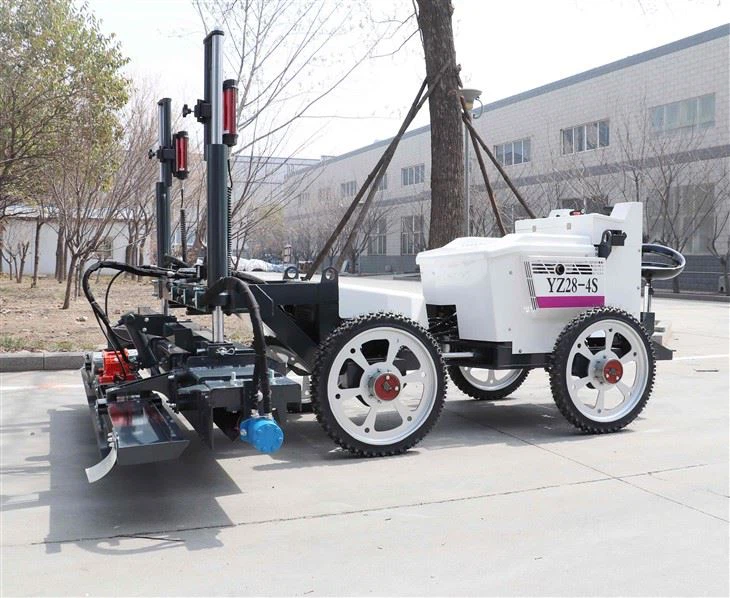

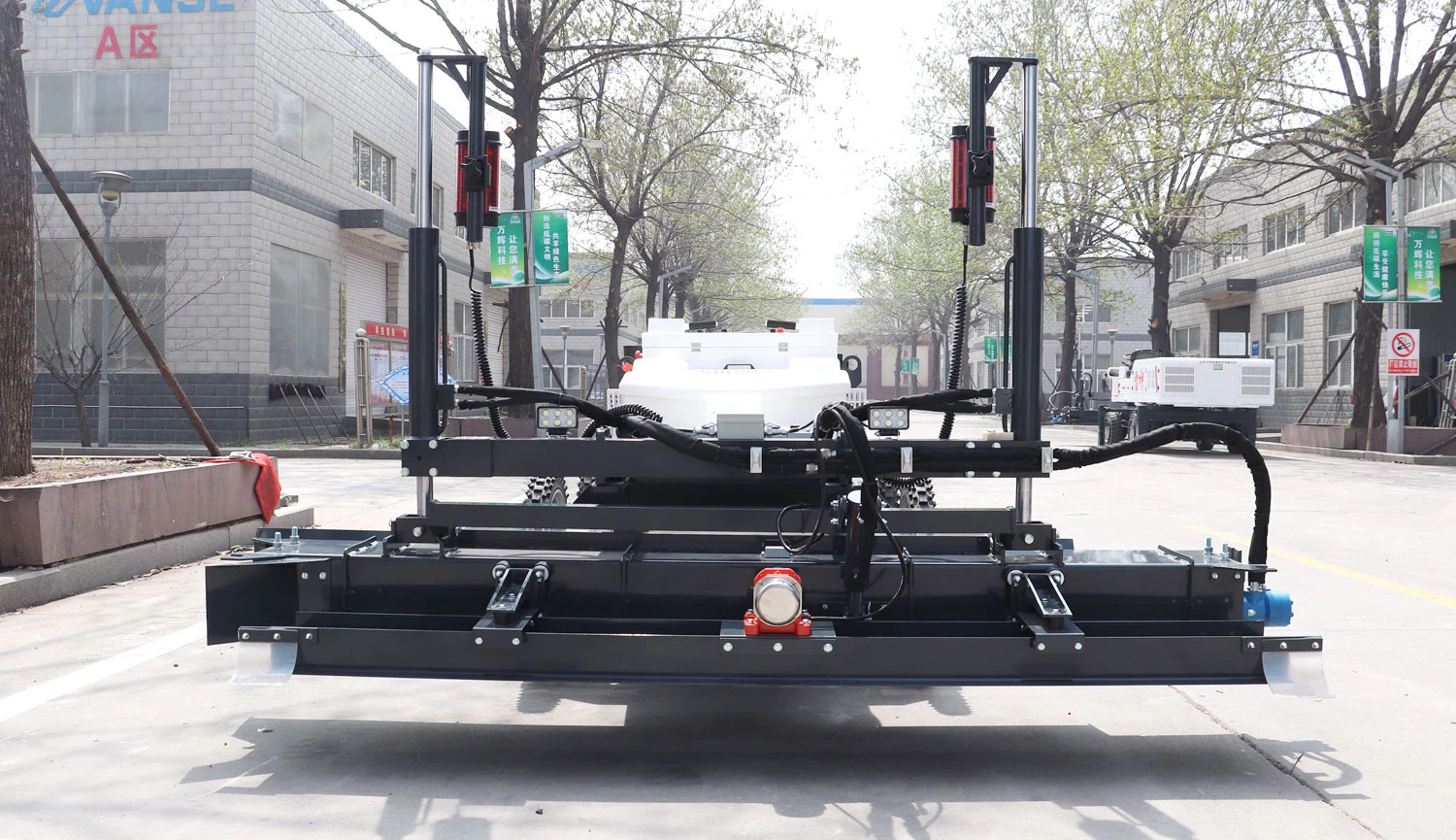

Product Details ofVANSE YZ28-4S Four Wheels Concrete Laser Leveling Machine
VANSE YZ28-4S Four Wheels Self Leveling Concrete Laser Leveling Machines Concrete Distributors Vibratory Leveling Machine
Details Images
High-efficiency Power System
Equipped with Honda GX690 gasoline engine, the power reaches 18.4kW/25HP, which is powerful and fuel-efficient, and can adapt to high-intensity construction scenarios.
Intelligent Laser Leveling
Equipped with a microcomputer laser scanning system, it supports plane, slope, and double slope (three-dimensional) leveling modes, with a construction accuracy of ±3mm, which greatly improves the flatness of the floor.
Dual vibration system
The vibration motor has an excitation force of 2000N and a vibration frequency of 50Hz. Combined with the auger paving, it can realize the one-time formation of concrete vibration compaction and surface leveling.

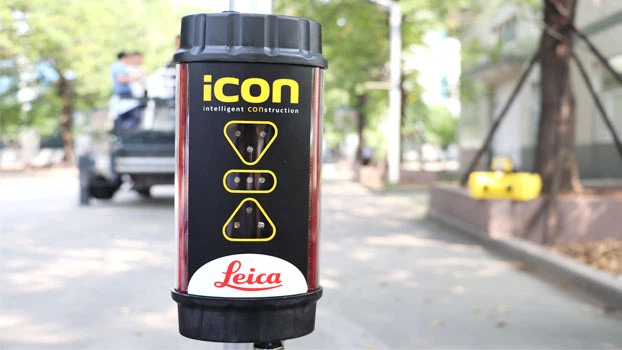

Laser closed-loop control
The laser transmitter covers a diameter of 300 meters, and the receiver feeds back elevation data in real time, dynamically adjusts the leveling cylinder to ensure the consistency of construction in the entire area.
| Model | YZ28-4S | Vibration system | Electric motor |
| Engine model | HONDA GX690 | Tire | Solid non-slip tires(with inflatable wide tires) |
| Power | 18.4kW/ 25HP | Exciting force | 2000N |
| Fuel | Gasoline | Net weight | 950kgs/ 2094lbs |
| Fuel tank capacity | 20L | Dimensions | 3700*3000*1300mm/ 12.14*9.84*4.27ft |
| Leveling width | 2.5m/ 8.20ft | Paving mode | Hydraulic spiral conveyor paving |
