Rapid calibration and repair of sudden deviation in the leveling accuracy of Concrete Laser Leveling

The problem of sudden deviation in the leveling accuracy of the concrete Laser Leveling during the construction process is an extremely urgent situation. The following is a systematic guide for troubleshooting, calibration and repair aimed at helping you resume construction quickly.

Sudden deviation in the leveling accuracy of the concrete Laser Leveling: Rapid calibration and repair

When there is a sudden deviation in accuracy, please follow the principle of "from the outside to the inside and from the easy to the difficult" to conduct a systematic investigation.

Step 1: Immediately shut down the machine and conduct a preliminary inspection (quick troubleshooting within 5 minutes)

Check the laser signal source

Stability: Immediately check whether the tripod of the laser emitter has been knocked over or settled by personnel or equipment.
Battery power: Make sure the laser is fully charged. Low battery power may cause unstable beam.
Cleanliness: Quickly check if there are any mud spots or dust on the light-emitting lens of the laser emitter, and clean it with special lens cleaning paper.
Inspect the body of the leveling machine

Receiver rod: Check whether the mast on which the receiver is installed has been bent or loosened.
Receiver cleaning: Check if the surface of the receiver sensor is contaminated by cement slurry or dust, and clean it immediately.
Scraper and flattening head: Check whether the bottom plate of the flattening head and the scraper have severe wear or concrete accumulation, as this can cause physical scratches and affect the perception accuracy.

Step 2: Systematic and in-depth investigation and rapid calibration

If the initial inspection does not solve the problem, please perform the following in-depth operations.
1. Calibration verification of the laser system
Manual rotation test: Manually and slowly rotate the laser emitter 360 degrees to observe whether the signals of the leveler receiver are consistent and stable in all directions. If there is a continuous deviation in a certain direction, it might be that the transmitter's reference is inaccurate.
Check the reference height: Use a tower ruler or steel tape measure to measure whether the reference height set by the laser emitter is consistent with the actual height of the ground control point, and eliminate errors in the reference setting.
2. Mechanical inspection of the leveling machine body
Hydraulic system pressure: Check whether the hydraulic pressure of the lifting mechanism is normal and stable. Insufficient pressure can cause the flat head to "sink" in the concrete, resulting in overly deep scratches.
Sensor and actuator connection: Check whether the mechanical or electrical connection between the receiver signal and the hydraulic valve is loose or damaged. Try to conduct a "manual/automatic" switching test. In the automatic mode, slightly cover the receiver manually and observe whether the flat head responds quickly to rise and fall. If there is no response or the response is slow, it indicates a fault in the signal transmission or hydraulic control system.
3. Perform rapid on-site calibration (key step)
Most modern laser screeners are equipped with "quick calibration" or "learning" functions. Please refer to the manual of your equipment (such as YZ30-4E from Shandong Vanse Technology) for operation. The general process is as follows:
Enter calibration mode: Go to the calibration menu on the control panel.
Locate the high and low points: Turn on the Leveling to a known reference plane (or have the laser emitter sweep out a plane), and move the receivers to a known "high point" (with the display bar at the top) and a "low point" (with the display bar at the bottom) respectively.
Data collection: Confirm the position at each point and let the machine record the corresponding relationship between the Angle of the laser signal received at this time and the height of the flattening head.
Complete and test: Save the calibration data and exit the menu. Move the machine on the reference plane and observe whether it can be stably maintained at the "zero position" (with the green light constantly on).

Step 3: Emergency repair measures and decision-making

If obvious mechanical faults such as mast bending or hydraulic cylinder leakage are found, use should be stopped immediately and maintenance personnel should be contacted.
Electronic system failure: If it is highly suspected after investigation that the fault lies within the control mainboard, receiver or laser transmitter, the "replacement method" should be adopted. Replacing the spare laser transmitter or receiver for testing is the fastest way to locate the source of the fault.
Activate the backup plan: When the fault cannot be immediately eliminated and the construction task is urgent, it can be used as a temporary measure to switch to manual mode. Relying on the experience of skilled operators, the current section construction can be completed, and the equipment can be moved aside for maintenance to avoid prolonged downtime.

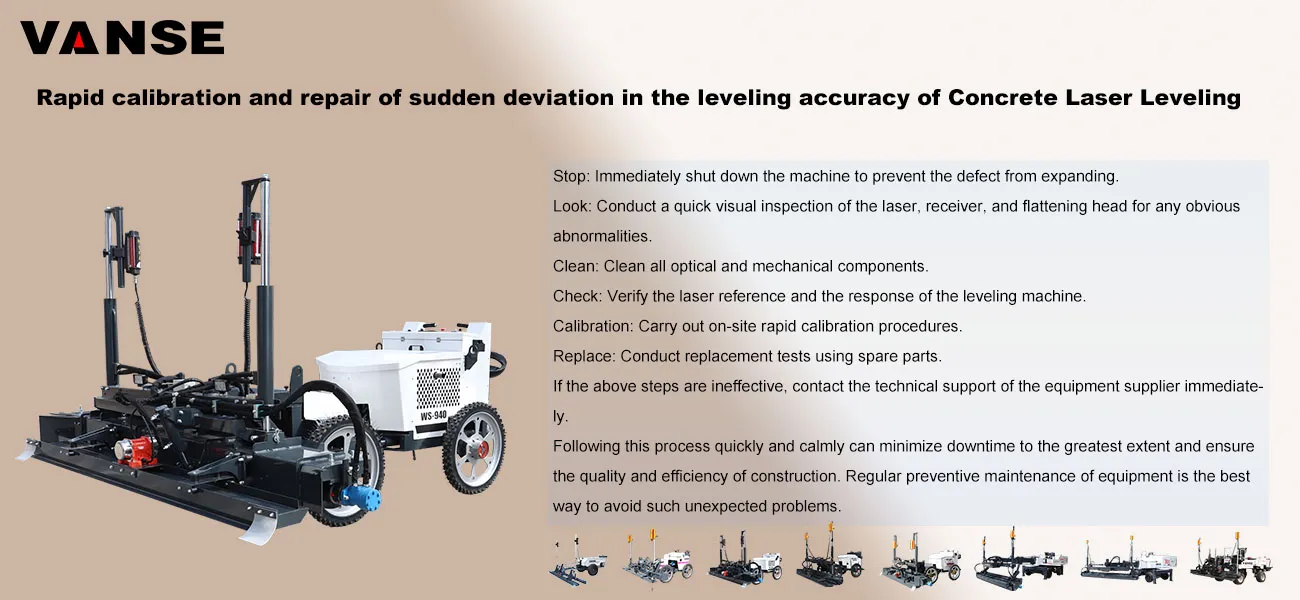

Summary: Quick Action Checklist

Stop: Immediately shut down the machine to prevent the defect from expanding.
Look: Conduct a quick visual inspection of the laser, receiver, and flattening head for any obvious abnormalities.
Clean: Clean all optical and mechanical components.
Check: Verify the laser reference and the response of the leveling machine.
Calibration: Carry out on-site rapid calibration procedures.
Replace: Conduct replacement tests using spare parts.
If the above steps are ineffective, contact the technical support of the equipment supplier immediately.
Following this process quickly and calmly can minimize downtime to the greatest extent and ensure the quality and efficiency of construction. Regular preventive maintenance of equipment is the best way to avoid such unexpected problems.

Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.
