How does the laser control system of the concrete laser leveler achieve precise leveling?
✍ Introduction ◎◈◎
With the continuous advancement of modern construction technology, concrete construction has become a key technical field. Among them, the concrete laser leveler plays an increasingly important role in the construction industry with its efficient and precise leveling capabilities. The core of the concrete laser leveler lies in its laser control system, which achieves high-precision leveling of the concrete surface by precisely controlling laser emission and reception. This article will explore in depth how the laser control system of the concrete laser leveler achieves precise leveling, in order to provide readers with a deeper understanding.
✍ Composition and working principle of the laser control system ◎◈◎

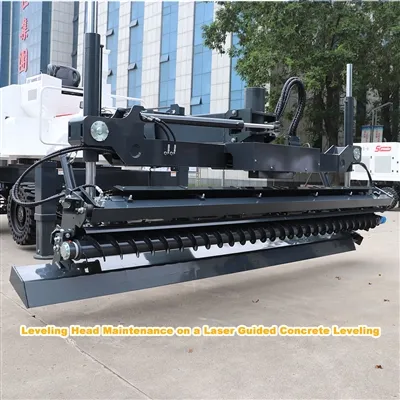

The laser control system of the concrete laser leveler is mainly composed of a laser transmitter, a receiver, a control system, and a leveling head. When working, the laser transmitter emits a laser beam, which is reflected by a reflector to form a stable laser plane. The receiver on the leveler can receive these laser signals in real time, convert them into electrical signals, and transmit them to the control system. The control system accurately calculates the distance between the leveling head and the laser plane based on the received signal, and adjusts the lifting and movement of the leveling head to make the concrete surface reach the predetermined flatness.
✍ Key technologies for laser control systems to achieve precise leveling ◎◈◎
1. Laser positioning technology
Laser positioning technology is the core of the laser control system. The laser beam emitted by the laser transmitter has a high degree of directionality and stability, and can form a precise plane in space. By receiving the laser signal, the receiver can determine the positional relationship between the leveling head and the laser plane in real time. This positioning method is not only highly accurate, but also fast, and can achieve real-time and continuous leveling of the concrete surface.
2. Closed-loop control technology
Closed-loop control technology is an important means to achieve precise leveling. During the operation of the laser leveling machine, the control system will adjust the lifting and movement of the leveling head in real time according to the received laser signal. When the leveling head deviates from the laser plane, the control system will respond quickly and adjust the motion trajectory of the leveling head to return it to the laser plane. This closed-loop control method can ensure that the leveling head always remains within the predetermined flatness range, thereby achieving a high-precision leveling effect.
3. Accurate hydraulic drive system
The hydraulic drive system is the power source for precise leveling. The lifting and movement of the leveling head need to be driven by the hydraulic system. The accuracy of the hydraulic system directly affects the accuracy of leveling. Therefore, laser leveling machines usually use high-precision hydraulic components and control systems to ensure that the motion trajectory of the leveling head can accurately follow the changes in the laser plane.
✍ Application of laser control system in actual construction ◎◈◎

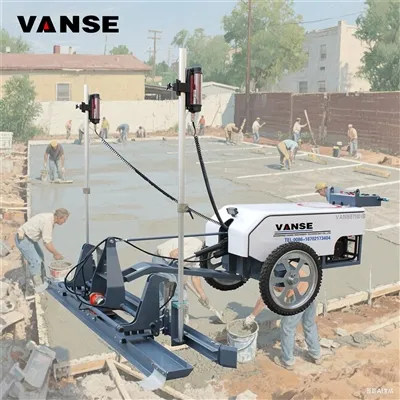

The laser control system of the concrete laser leveling machine has a wide range of application value in actual construction. Whether it is the ground construction of large shopping malls and parking lots, or the construction of infrastructure such as highways and airport runways, high-precision leveling of the concrete surface is required. Through its precise laser control system, the laser leveling machine can achieve fast, efficient and precise leveling of the concrete surface, greatly improving the construction efficiency and quality.
In addition, the laser control system can also be flexibly adjusted according to construction needs. For example, in different construction environments, the position, angle and other parameters of the laser transmitter and receiver can be adjusted to meet different construction requirements. At the same time, the control system can also accurately control the lifting and moving speed of the leveling head according to the construction progress and quality requirements to achieve the best leveling effect.
✍ Advantages and Challenges of Laser Control System ◎◈◎
The application of laser control system in concrete laser leveling machine brings many advantages. First, it greatly improves the accuracy and efficiency of leveling, so that the flatness of the concrete surface has been significantly improved. Secondly, the laser control system can realize automated construction, reduce manual intervention and errors, and improve the reliability and stability of construction. In addition, the laser control system is also highly flexible and adaptable, and can adapt to different construction environments and requirements.
However, the laser control system also faces some challenges. For example, the stability of the laser signal is easily affected by environmental factors such as temperature, humidity, wind, etc. In addition, the operation and maintenance of the laser leveling machine also requires certain professional skills and experience. Therefore, when using the laser leveling machine, it is necessary to strengthen the training and management of operators to ensure the normal operation of the equipment and the smooth progress of construction.
✍ Future Development Trend of Laser Control System ◎◈◎
With the continuous advancement of science and technology and the continuous development of the construction industry, the laser control system of the concrete laser leveling machine will continue to be optimized and upgraded. In the future, laser control systems may develop in the following directions:
1. Intelligent development: By introducing technologies such as artificial intelligence and machine learning, the laser control system will have stronger autonomous learning and adaptability, and can automatically adjust and optimize according to different construction environments and requirements.
2. High-efficiency development: By improving the performance of key components such as laser transmitters, receivers, and hydraulic systems, the response speed and accuracy of the laser control system will be improved, and the leveling efficiency and quality will be further improved.
3. Modular design: Using modular design ideas, the laser control system is divided into multiple independent modules, which is convenient for maintenance, upgrading and expansion, and improves the reliability and flexibility of the equipment.
4. Green and environmental protection development: The environmental performance of Fengzhong laser control system reduces the energy consumption and environmental pollution of equipment by adopting low-energy consumption and low-emission technologies and materials, and realizes green construction.
✍ Conclusion ◎◈◎
The laser control system of the concrete laser leveling machine is the key to achieving precise leveling. It achieves high-precision leveling of the concrete surface through technical means such as laser positioning technology, closed-loop control technology and precise hydraulic drive system. In actual construction, the laser control system has a wide range of application value, which can improve construction efficiency and quality, and reduce manual errors and costs. Although the laser control system is still facing some challenges, with the continuous advancement of science and technology and the continuous development of the construction industry, it is believed that the laser control system of the concrete laser leveling machine will usher in a broader development prospect in the future. With the integration and application of cutting-edge technologies such as artificial intelligence, the Internet of Things, and big data, the intelligence, adaptation, and self-learning capabilities of the laser control system will be further improved, making the leveling process more accurate, efficient, and reliable.
At the same time, the concept of green environmental protection and sustainable development will also be more reflected in the design of the laser control system. By optimizing the equipment structure, adopting environmentally friendly materials and energy-saving technologies, reducing energy consumption and emissions, and achieving green construction, it will be an important direction for the development of laser control systems in the future.
In addition, with the continuous improvement of the construction industry's requirements for the quality of concrete construction, the laser control system also needs to be continuously innovated and improved. In the future, we can expect the advent of more intelligent, efficient, and environmentally friendly laser control systems, which will bring more excellent leveling effects and user experience to concrete construction.
