How do concrete laser leveling, power trowel and floor grinders work together to build a machine team?

It is very appropriate to compare the concrete laser leveling machine, the power trowel machine and the floor grinding machine to a "machine team". They are by no means individual entities working alone, but rather a closely interlinked and precisely collaborative system, jointly dedicated to creating a perfect floor from the base to the surface layer.

The success of this "dream team" relies on clear division of responsibilities and seamless process connections.

Ⅰ. Role Positioning of Members in the "Machine Team

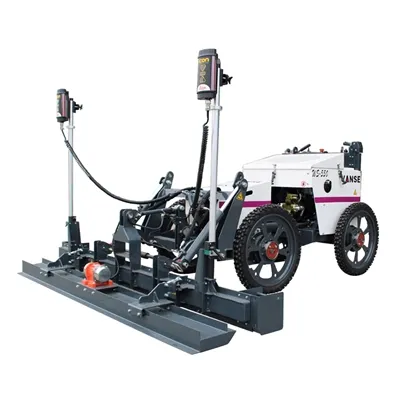

Laser leveling Machine - "Team Cornerstone · Precision Bearer"

Core responsibility: Establish the flatness, levelness and elevation of the floor. This serves as the benchmark for all subsequent processes and determines the "inherent genes" of the floor.
Technical features: Utilizing a laser measurement and control system, it automatically controls the elevation and completes the paving, vibration, and leveling work in one go, achieving extremely high-precision construction.

Polishing machine - "Surface Artist · Smoothness Bearer"

Core responsibilities: To carry out slurry lifting, compaction, and smoothing on the initially leveled concrete surface, seal the surface pores, and achieve the required smoothness, density, and wear resistance.
Technical features: By replacing the power trowel pans (for rough power troweling and slurry lifting) and the power trowel knife (for fine power troweling and finishing), the concrete surface is finely treated in stages and in multiple passes.
Floor grinding machine - "Quality Elevator · Ultimate Effect Bearer"

Core responsibilities: After the concrete has hardened, carry out leveling, grinding and polishing. It can correct minor flaws, expose aggregates, or eventually treat the floor to a variety of gloss levels ranging from matte to mirror.
Technical features: Utilizing diamond grinding discs of different mesh sizes (coarseness), the ground is ground and polished step by step to achieve the final effect as designed.

Ⅱ. The Collaborative Operation Process of the "Heavenly Team" (Four Seamless Stages)

The entire collaborative process can be regarded as an efficient production line:
Phase One: Benchmark Establishment (laser leveling Machine Main Stage)
Process: After the concrete is poured, the laser leveling machine immediately enters the site and is leveled according to the set elevation and slope.
Key points of collaboration: The leveling machine provides a nearly perfect initial working surface for the subsequent power trowel machine. Its precision directly determines the working efficiency of the power trowel and the final flatness quality of the ground. If the foundation is not laid well, the subsequent processes will be twice the effort for half the result.
Phase Two: Surface finishing (with the polishing machine taking over)
Process: Before and after the initial setting of the concrete (when there are slight footprints left by people stepping on it), the power trowel enters the site in two stages:
Rough power trowel (slurry lifting) : Install the disc, perform the first smooth power trowel at low speed, press in the surface aggregates, and bring out the slurry.
Finishing (finishing) : When the surface moisture is slightly dry, replace the power trowel and run it at high speed for multiple finishes to achieve the designed density and smoothness of the surface.
Key points of collaboration: The working quality of the polishing machine directly affects the workload of the grinding machine. A perfectly polished floor requires less grinding volume and shorter time during grinding, which greatly saves costs and construction period.
Phase Three: Curing and Preparation
Process: After the smoothing is completed, immediately carry out curing (such as spraying curing agent or covering with film) to make the concrete reach the designed strength. This is a brief rest period for the "Dream Team", but it is of vital importance.
Key points of coordination: Adequate maintenance can effectively prevent cracking and provide a solid and uniform base layer for the grinding machine.
Phase Four: Effect Enhancement (The grinding Machine makes its grand Finale)
Process: After the concrete has fully cured (usually taking more than 7 to 14 days), the floor grinding machine comes into play. This is a systematic "working" process:
Rough grinding and leveling: Use a rough grinding disc of 30/40 mesh or the like to remove surface floating slurry and minor flaws, and initially level the surface.
Medium grinding and refinement: Use medium and fine grinding discs such as 100/200 mesh to eliminate scratches from rough grinding and further refine the surface.
Fine grinding and polishing: Use resin grinding discs of 400 mesh or higher for fine polishing until the designed glossiness (such as mirror effect) is achieved.
Key points of collaboration: The grinding machine is the "inspector" and "ultimate implemtest" of the first two processes. It can make up for the minor defects that are inevitable in the first two processes and, through physical polishing, push the aesthetic appeal, durability and functionality of the floor to the extreme.

Ⅲ. Build the management core of an efficient "Machine team"

Precise timing control: The entry timing of the power trowel machine is a combination of art and science. If it's too early, it will sink; if it's too late, it won't be able to extract the paste. Every link in the entire process must be closely connected.
Unified quality standards: The team needs to have a common understanding of the ultimate goal (flatness FF/FL value, gloss, etc.), and each member is responsible for their own link and creates convenience for the next link.
Professional "brokers" (operators) : Every operator must be an experienced expert, understanding the principles of the equipment, the properties of concrete and the requirements of teamwork.
Perfect "logistical support" (equipment maintenance) : Ensure that every piece of equipment is in the best condition to avoid a complete shutdown of the entire line due to a single machine failure in the collaborative chain.

Summary

The successful model of this "machine team" is:
The laser leveling lays a precise foundation → the power trowel shapes a dense and smooth surface → the floor grinding machine ultimately achieves an elevation of both functionality and aesthetics.
They are interlinked and form the "golden assembly line" of modern high-performance floor construction. Planning, managing and operating these three as an integrated system is the inevitable way to achieve the highest quality, efficiency and economic benefits of industrial floors, commercial floors and even artistic floors.

Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.
