How accurate is a concrete laser leveling machine

The accuracy of a concrete laser leveling machine (laser leveling) is its defining feature and what justifies its significant cost. The answer is two-tiered: the machine's instrumental accuracy and the resulting floor flatness specification it can achieve.

Here's a detailed breakdown:

1. Instrumental/Grade Setting Accuracy

This refers to how precisely the machine follows the laser reference plane.
Laser System Accuracy: The rotating laser transmitter that sets the plane is typically accurate to ±1.5 mm to ±3 mm (±1/16" to ±1/8") at a radius of up to 300 meters. This is extremely precise over a very large area.

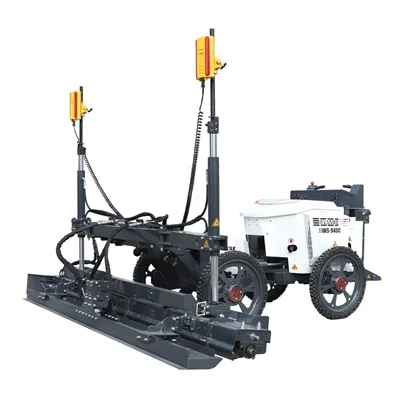

Machine Control Accuracy: The leveling's sensors (masts or mobile receivers) lock onto this laser plane. The onboard computer constantly adjusts the hydraulic cylinders to keep the leveling head exactly on grade. The system's resolution for adjusting the leveling head is generally within ±1.5 mm (±1/16") of the laser plane in real-time.
In short, the machine itself is capable of placing and striking off the concrete surface to within a tolerance of about 1.5-3 mm (1/16" - 1/8") of the designed elevation across the entire slab.

2. Achievable Floor Flatness (The Critical Measure)

This is the industry-standard metric, expressed as F-Number (FF/FL). This is what engineers specify and what ultimately matters for the floor's performance.

What are F-Numbers?

FF (Floor Flatness): Measures local smoothness and waviness over a 24-inch (600 mm) rolling radius. High FF means a very smooth surface with minimal bumps/dips. FL (Floor Levelness): Measures conformity to the overall specified grade over a 10-foot (3 meter) span. High FL means the floor is consistently level over long distances.

Capabilities of Laser leveling:

Standard Industrial Floors: A modern laser leveling can consistently and easily achieve FF 35 / FL 25 or better. This is a high-quality warehouse or manufacturing floor.

Superflat Floors: This is where laser leveling truly shine. They are the standard tool for achieving:

FF 50 / FL 40 (Standard for high-rack warehouses with narrow aisles).

FF 100 / FL 80+ (Extreme requirements for robotic, Very Narrow Aisle (VNA), or AS/RS systems). Achieving these numbers requires not only the laser leveling but also exceptional subgrade preparation, concrete mix design, and expert finishing/troweling.

Comparison with Traditional Methods

Manual leveling: Even with skilled workers using a straightedge, achieving better than FF 20 / FL 15 consistently is very difficult. Results are highly variable and dependent on crew skill and fatigue.

Ride-on Vibratory leveling: An improvement over manual work, but typically max out at around FF 25 / FL 20.

Factors That Affect On-Site Accuracy

The machine's potential accuracy can only be realized if the following are controlled:

Stable, Well-Prepared Subgrade: A soft or uneven subbase will lead to slab settlement and distortion, ruining flatness.

Proper Laser Setup: The laser transmitter must be positioned correctly and on a stable tripod, with the correct grade slope programmed.

Concrete Mix Design & Placement: A consistent, stable mix with proper slump (low water-cement ratio) is essential. Concrete must be placed in a timely manner ahead of the leveling.

Finishing Operations: The laser leveling creates a perfectly struck-off surface, but the final flatness is sealed by the subsequent finishing (troweling) process. Bump cutting (early passes with ride-on trowels) is critical to maintain the flatness the leveling established.

The Bottom Line: How Accurate Is It?

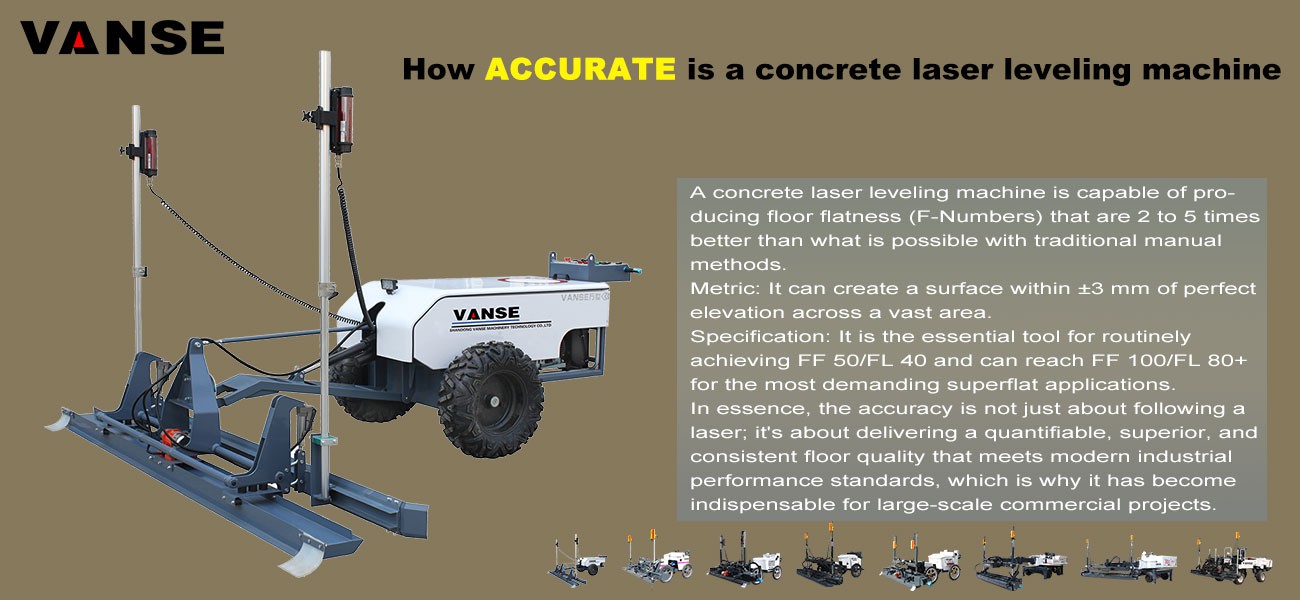

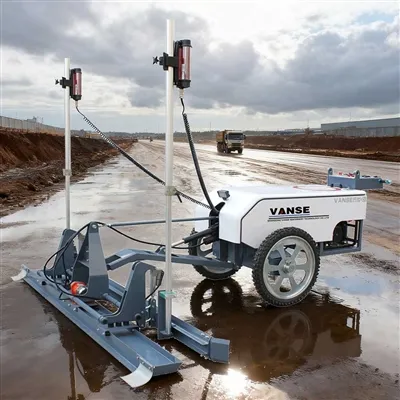

A concrete laser leveling machine is capable of producing floor flatness (F-Numbers) that are 2 to 5 times better than what is possible with traditional manual methods.

Metric: It can create a surface within ±3 mm of perfect elevation across a vast area.

Specification: It is the essential tool for routinely achieving FF 50/FL 40 and can reach FF 100/FL 80+ for the most demanding superflat applications.

In essence, the accuracy is not just about following a laser; it's about delivering a quantifiable, superior, and consistent floor quality that meets modern industrial performance standards, which is why it has become indispensable for large-scale commercial projects.



Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.
