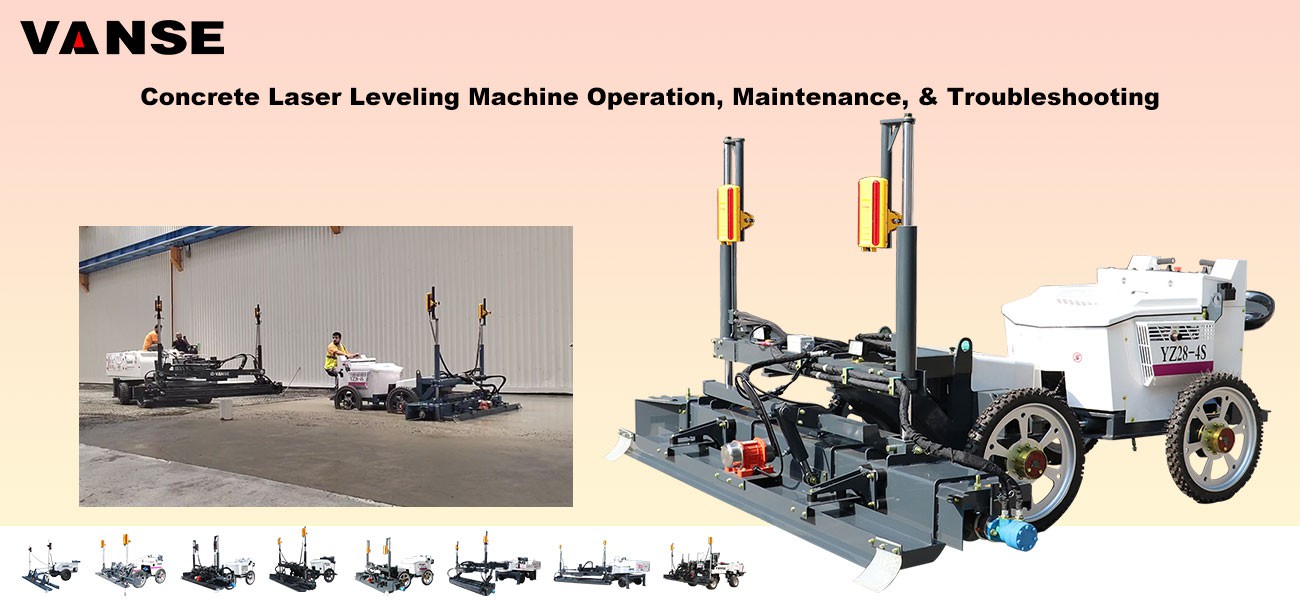

Concrete Laser Leveling Machine Operation, Maintenance, & Troubleshooting

That's a practical request! The performance of a concrete laser leveling machine is entirely dependent on proper operation, rigorous maintenance, and quick troubleshooting.

Here is a comprehensive guide covering the three main pillars of successful laser Leveling use.

🛠️ I. Operation: Achieving High FF/FL

The goal of operation is consistent placement, consolidation, and striking-off of the concrete.

1. Pre-Pour Setup and Calibration

Step	Action	Focus
Check Subgrade	Ensure the subgrade (or base) is consistently moist and ready. A dry base will suck water from the concrete, causing surface defects.	Consistency and Moisture
Set Up Laser Transmitter	Place the laser transmitter on a stable tripod outside the work area. Calibrate the transmitter to the desired finish elevation (grade).	Stability and Accuracy
Verify Receiver	On the Leveling head, check that the laser receiver (sensor) is clean, securely mounted, and calibrated to the machine's control system.	Cleanliness and Alignment
Check Head Settings	Adjust the Leveling head. The plow/auger should be set slightly higher than the finish blade (typically ≈1/4 inch) to leave a minimal, consistent pile of concrete for the blade to strike off.	Consistent Material Flow
Test Controls	Test all movement and vibration controls, and confirm the Emergency Stop switch is functioning correctly.	Safety and Functionality





2. Concrete Placement and Leveling

Pace the Pour: Place concrete just ahead of the machine. The Leveling works best when it has a continuous, consistent supply of concrete to work with.

Maintain Consistent Speed: Operate the machine at a slow, consistent forward speed. This ensures the vibrator has time to fully consolidate the concrete and the auger/plow can properly distribute it. Uneven speed leads to varying consolidation and inconsistent FF numbers.

Overlap Passes: Ensure each pass slightly overlaps the previous one (follow the manufacturer guidance). This prevents seams or "laps" that can negatively impact the final FL/FF.

Monitor the Laser: The operator must constantly monitor the receiver display to ensure the machine is holding the laser signal and the elevation is correct.

Avoid Excessive Vibrator Use: Only engage the vibrator when the Leveling head is in contact with the concrete and moving forward. Excessive vibration can cause segregation of the concrete mix (aggregate settling, paste rising), ruining the surface quality.

🧼 II. Maintenance: The Daily Checklist

Concrete is abrasive, and the equipment is complex. Cleaning after every pour is the most critical maintenance task.

Daily/After Each Use

Deep Cleaning: Use a pressure washer to thoroughly clean the Leveling head, auger, plow, and finish blade immediately after use. Do not allow concrete to harden on these components, as it affects accuracy and causes wear.

Protect Electronics: Never aim the pressure washer directly at the control box, electronic sensors, or laser receivers.

Lubricate Bearings: Apply the required amount of grease (as specified by the manufacturer, often 1-2 pumps) to all exposed bearings (especially those on the auger and vibrator) to push out any water and concrete slurry.

Visual Inspection: Inspect all hydraulic hoses, electrical cables, bolts, and fasteners. Vibration causes hardware to loosen ighten any loose bolts before the next use.

Boom Lubrication (Boom Leveling): Use a dry lubricant or penetrating fluid (not grease) on the boom slides/tracks to prevent concrete dust from sticking. Check and adjust UHMW wear pads.

Weekly/Monthly Checks

Fluid Levels: Check engine oil, fuel, and hydraulic oil levels. Replace fluids and filters per the manufacturer schedule (typically based on hours).

Hydraulic System: Inspect hoses for wear, chafing, or leaks. Hydraulic oil leaking onto a slab is a major contamination issue.

Air Filters: Clean or replace the engine air filter element.

Vibration System: Check all components of the vibrator system for damage and ensure the drive belts (if applicable) have proper tension.

Laser System: Ensure the laser receivers and transmitter are clean. Recalibrate the entire system periodically (e.g., quarterly or after hard transport) to confirm accuracy.

🛑 III. Troubleshooting Common Issues

Problem	Likely Cause(s)	Solution
Machine is not holding grade (Inconsistent FL)	1. Laser beam is blocked or the transmitter is bumped. 2. Receiver/sensor is dirty or improperly secured. 3. Subgrade is too soft or unstable.	1. Check for obstructions; recalibrate the laser. 2. Clean the receiver window; tighten mounting bolts. 3. Stop the pour and stabilize the subgrade (e.g., compacting or adding fill).
Inconsistent Surface Finish (Low FF)	1. Operating speed is too fast or inconsistent. 2. Concrete mix consistency (slump) is changing. 3. Finish blade/plow is caked with concrete.	1. Slow down the travel speed and maintain uniformity. 2. Adjust the mix design or reject inconsistent loads. 3. Stop and immediately clean the Leveling head and blade.
Hydraulic/Boom System Failure	Low hydraulic fluid or clogged filter.	Check hydraulic fluid reservoir; replace hydraulic filter element. Do not run the machine dry.
Machine Won't Start/Run	Low fuel/battery; clogged fuel or air filter; spark plug issue.	Check and replenish fuel; inspect and clean/replace filters; replace spark plug.
Abnormal Noise/Vibration	1. Worn-out auger or vibrator bearings. 2. Loose hardware/fasteners.	1. Shut down and check/replace bearings immediately. 2. Visually inspect and tighten all accessible bolts.



Do you have a specific machine model you are currently working with, or are you interested in a deeper dive into the technical details of laser calibration?



Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.
