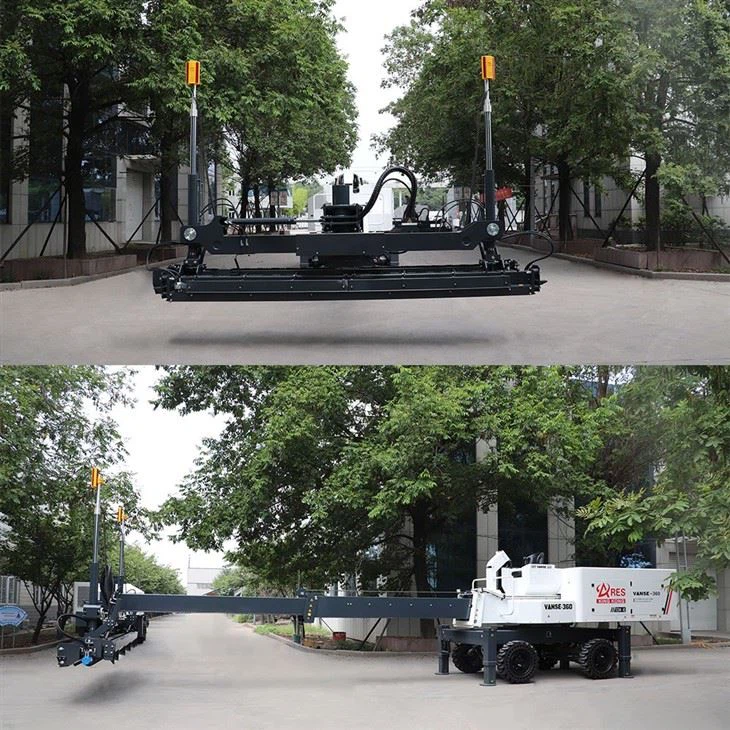

VANSE YZ40-4E Automatic Boom Type Operated Laser Guided Concrete Leveling Machine
⚽2. One click leveling of the body allows for easy handling of various complex road surfaces.
⚽3. The automatic leveling system is not only more precise, but also reduces the operator's labor force.
⚽4. Standard cleaning system with a maximum cleaning pressure of 150Bar, large capacity water tank, convenient and fast flushing.
⚽5. Solid rubber tire with process grooves, resistant to punctures and more comfortable.
⚽6. Optional inflatable wide tires.
⚽7. More comprehensive and automated random accessories to meet diverse needs and more convenient machine maintenance.
⚽8. The head comes standard with soft landing function.
⚽9. High-power engine from an internationally renowned brand, highly efficient and energy-saving.
⚽10. The hydraulic system uses the internationally renowned brand Danfoss, with excellent performance.
⚽11. Internationally renowned brand laser system, accurate and fast.
Send Inquiry
Product Details ofVANSE YZ40-4E Automatic Boom Type Operated Laser Guided Concrete Leveling Machine
Work Head
It adopts laser leveling mode with an accuracy of ±1.5mm. The leveling width is increased to 4000mm, further improving construction efficiency. It is also equipped with a spiral driven by a hydraulic motor, with an exciting force of 5600N (MAX), a telescopic arm of 6 meters/19.69 feet, and 360° rotation, which can better handle large-area concrete construction.
Paving Mode
Spiral paving mode ensures uniform concrete spreading, provides a good foundation for subsequent leveling operations, and improves construction quality and efficiency.
Control Panel
Equipped with a powerful parameter display screen, it can display system parameters, working parameters (such as outriggers, vibration, winch speed, etc.) and laser parameters (left and right laser parameters), and supports parameter settings. The left and right control panels are reasonably laid out and integrate many control switches and buttons. Including one-button lifting and lowering of outriggers, automatic/manual control of outriggers, steering mode switching, spiral forward and reverse control, vibration switch, headlight switch, manual tilt control, etc., which are convenient for operators to perform various operations.

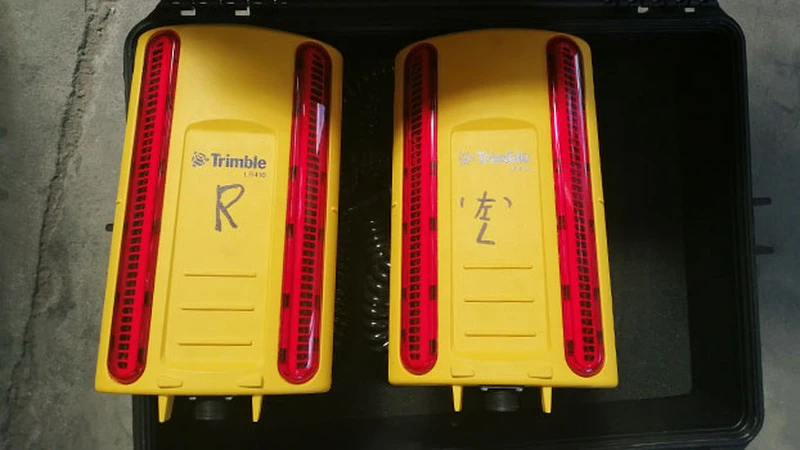

Laser Receiving System
It has a stable and reliable laser receiving system. The laser receiver is installed on the lifting cylinder in front of the equipment. Together with the high-precision laser transmitter, it can achieve precise control of various working conditions and ensure construction accuracy.
