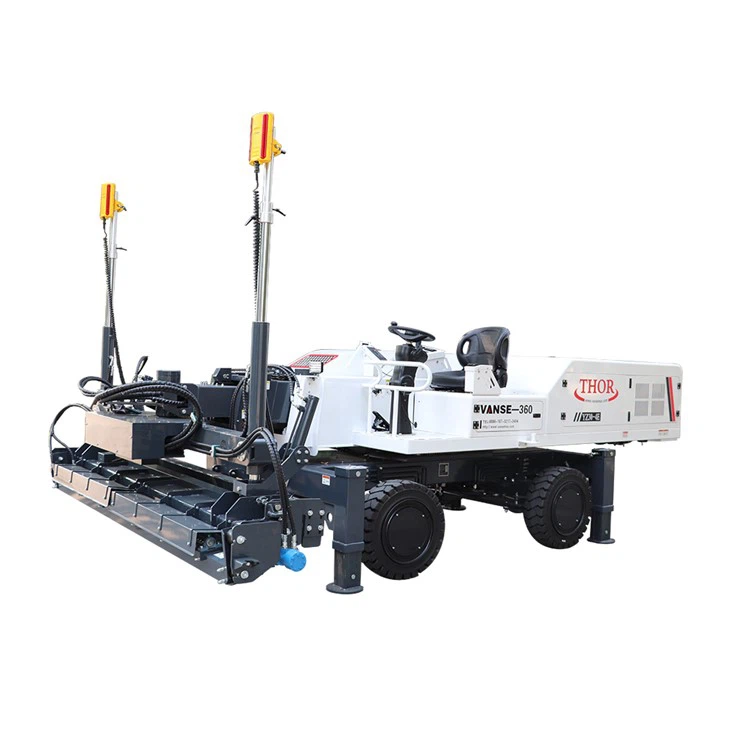

YZ30-4E Concrete Laser Leveling - New R&D Products,Telescopic Boom Concrete Laser Leveling Machine
2. One click leveling of the body allows for easy handling of various complex road surfaces.
3. The automatic leveling system is not only more precise, but also reduces the operator's labor force.
4. Standard cleaning system with a maximum cleaning pressure of 150Bar, large capacity water tank, convenient and fast flushing.
5. Solid rubber tire with process grooves, resistant to punctures and more comfortable.
6. Optional inflatable wide tires.
7. More comprehensive and automated random accessories to meet diverse needs and more convenient machine maintenance.
8. The head comes standard with soft landing function.
9. High-power engine from an internationally renowned brand, highly efficient and energy-saving.
10. The hydraulic system uses the internationally renowned brand Danfoss, with excellent performance.
11. Internationally renowned brand laser system, accurate and fast.
12. High-power engine from an internationally renowned brand, highly efficient and energy-saving.
Send Inquiry
Product Details ofYZ30-4E Concrete Laser Leveling - New R&D Products,Telescopic Boom Concrete Laser Leveling Machine
Products show
Technical Parameters
| Engine model | YANMAR 4TNV94L | Telescopic arm | 6m/ 19.69ft long, 360°turn |
| Power | 35kW/ 2400RPM | Tire | Solid non-slip tires (optional inflatable tires) |
| Fuel | Diesel | Leveling head swing | Left swing: 45°; Right swing: 75° |
| Fuel tank capacity | 100L | Paving mode | Hydraulic spiral conveyor paving |
| Steering mode | Two wheel, four wheel, crab steering. | Exciting force | 4500N (MAX) |
| Leveling width | 3.1m/ 10.17ft | Dimensions | 5550*3700*1870mm/ 18.21*12.14*6.14ft |
| Net weight | 5800kgs/ 12787lbs | Transportation size | 8000*2200*1970mm/ 26.25*7.22*6.46ft |
SIX ADVANTAGES WORK EFFICIENCY IS MORE SIGNIFICANT
01
360 DEGREE ROTATION
02
ONE-KEY PAVING AUTOMATIC LEVELING
03
AMERICAN IMPORTED ENGINE
04
POWER-OPERATED JOYSTICK CONTROLS STEERING, DRIVE. TELESCOPIC BOOM AND SWIVEL IN A COMPACT FORM FACTOR
05
INTEGRATED DESIGN OF SCRUBBER, VIBRATOR AND LEVELING
06
FLEXIBLE AND EFFICIENT HYDRAULIC SYSTEM
Products details
FLAT HEAD
The 3-meter leveling machine head can rotate and swing, and can complete the leveling of 18 square meters of concrete each time. Paving slabs, vibrating beam spiral paving.
4 WHEELS TURNING
Hydraulic support.
CONTROL PANEL
The flexible and efficient hydraulic system can control the height of the cutting board and the cloth spiral to maintain leveling, and has higher advantages in construction efficiency and flatness.

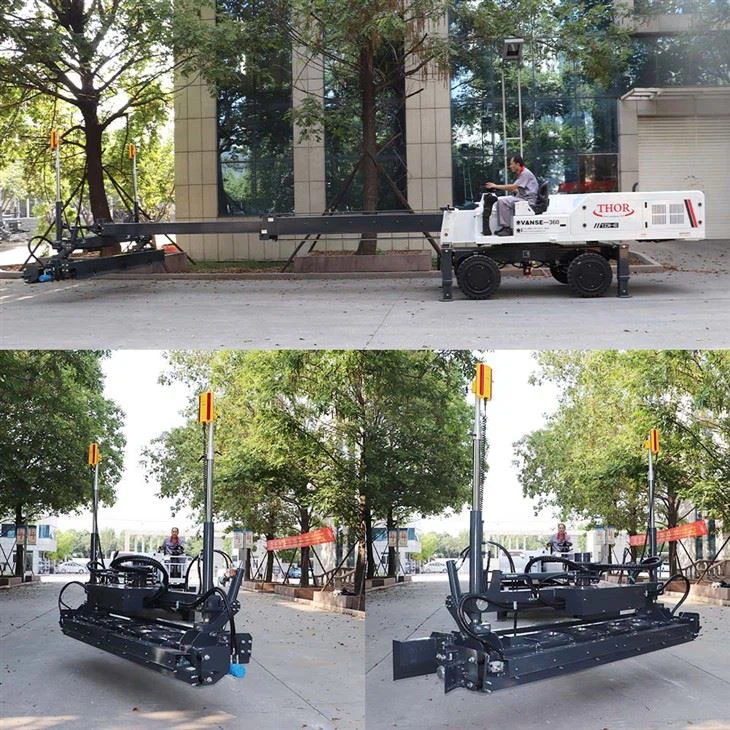

360 DEGREE ROTATING TELESCOPIC ARM
Up to 6 meters long, the rotating platform is fast and efficient, and the 3-meter leveling head can rotate and swing, which can complete the leveling of 18 square meters of concrete each time.

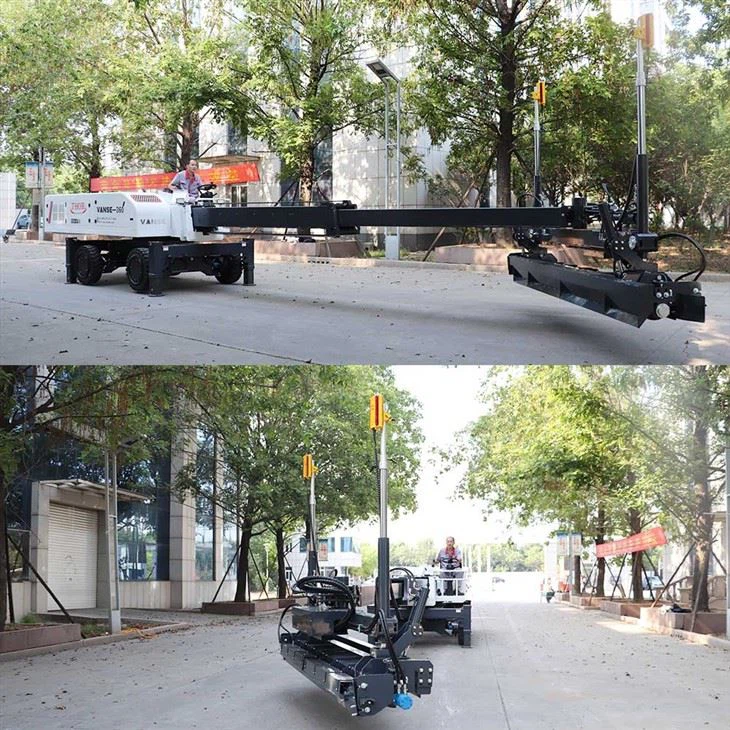

360° ROTATION
Construction no dead corners
CRABS WALK SIDEWAYS
Improve work efficiency, save time and effort.
STANDARD CLEANING SYSTEM
Standard cleaning system with a maximum cleaning pressure of 150Bar, large capacity water tank, convenient and fast flushing.
FEATURES
Good workmanship, hard quality dedicated and professional.

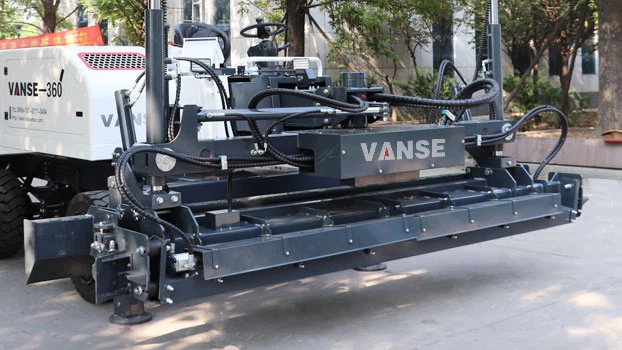

WORK HEAD
The work head can flip up and down, adjust the height simultaneously, and adjust the height on both sides.
PAVING MODE
Auger paving, auger can be turned up and down, left and right exchange.

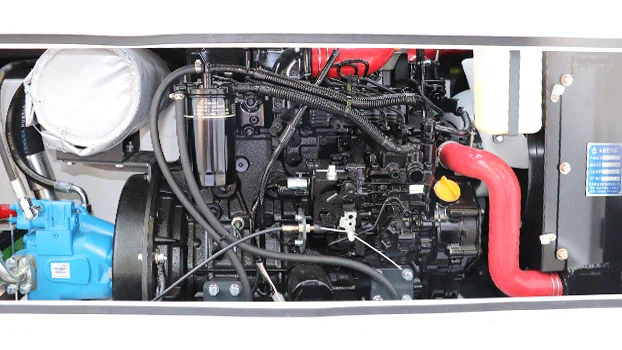

ENGINE
Brand YANMAR 4TNV94L engine (the brand and model of engine can meet your requirements), strong power and stable performance. Durable, sturdy and stable performance in high intensity work.

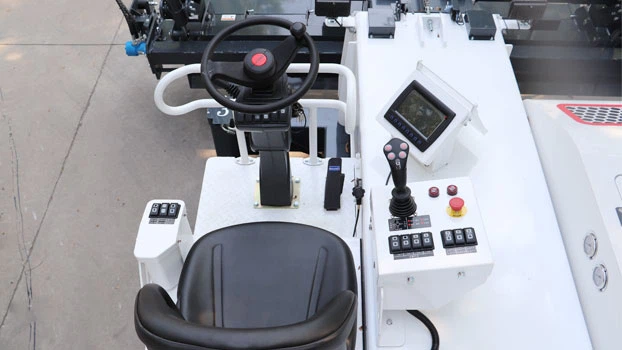

CONTROL BOARD
● Steering gear forward and backward control handle: Control the whole machine forward and backward.
● Dashboard oil pressure alarm, fuel oil scale, water temperature alarm, electric lock, rough leveling switch, vibrate switch, controls the start and auger switch, inclination switch.
● Left control panel & right control panel!

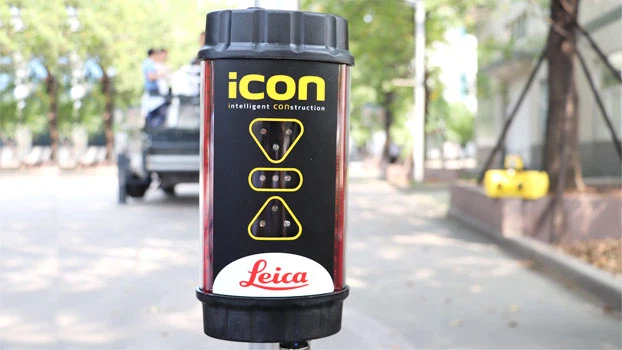

LASER RECEIVER SYSTEM
Laser recalving system, it can automatically control the plane and bi-directional slope by receiving the signal from the laser transmitter. For complex shaped ground with high drainage requirements, the shaped ground treatment system is also available.
LCD PARAMETER DISPLAY SCREEN
● Microcomputer laser scan, full color smart touch LCD display with integrated diagnostics.
● System parameter display and working parameter display.
● Working parameter setting: Outriggers Vibration, winch speed, slewing speed and turning speed can be set.
● Laser parameter setting: Left laser and right laser parameters can be set.

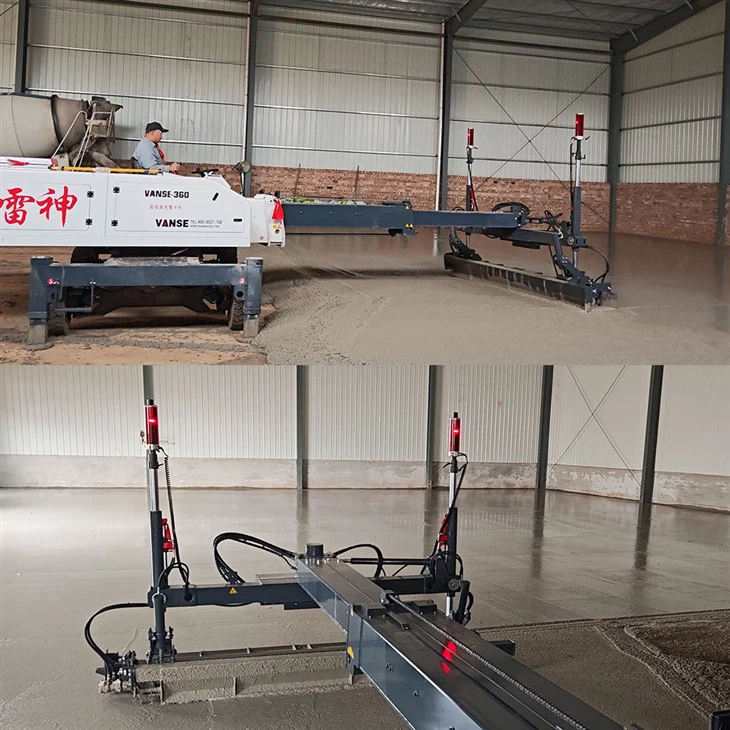

construction cases
application & partner
company profile
Shandong Vanse Group was founded in 2013. The company seizes the historical opportunity of the rapid development of the concrete industry and adheres to the development direction of high-end, high quality and high efficiency. lt soon became a national high-tech enterprise integrating research and development, manufacturing, sales and after-sales of concrete equipment. The company has successfully reached project cooperation with a number of partners, such as Jingdong Logistics, Ningde Times, Great Wall Motor Company Limited, and CSCEC (China State Construction Engineering Corporation).
Vanse Group consists of many business divisions such as Vanse Machinery, Wanhui New Energy, Wanli Pre-control Machinery Manufacturing, Vanse Road and Bridge, Shanghai Vanse Machinery, etc. The products are sold to 31 provinces, municipalities and autonomous regions in China. Our products are sold to 31 provinces, municipalities and autonomous regions in China. Our products are exported to more than 30 countries and regions, such as USA, UK, Russia, Germany, Saudi, Australia and so on.
In 2018, Vanse Group reached a technical cooperation agreement with British experts, introduced international high-end technology, and achieved international standards for the matching of humanized mechanical design and performance with laser systems. We also established in-depth cooperation relationships with Shandong University and Chang'an University, integrating industry, academia, research and application.
Vanse Group has never stopped thinking about the future and pursuing the hope of creating a better life for human beings.
Grasp the present, realize the future, Vanse will create a brilliant future together with you!
FAQ
1. What steps should I take if I encounter issues with the product?
• If you face any problems, please record a video of the issue and send it to us. Our technical team will analyze the problem and provide a solution. For issues within the warranty period, we offer free component replacements. Additionally, we have local dealers in several countries who can assist with on-site technical support.
2. How do you ensure the quality of your products?
• Quality is our top priority. We implement a rigorous quality control system that covers every stage of production, from raw material inspection to final product testing. This includes checks on components, semi-finished products, and random inspections before delivery to ensure the highest standards.
3. What should I do if a part breaks?
• We recommend keeping some common spare parts on hand based on your location and environmental conditions. If a part breaks, we can ship a replacement via international express with your next order or as a standalone shipment, depending on your needs.
4. Do your products come with a warranty?
• Yes, most of our products are covered by a one-year warranty. This ensures that you are protected against any manufacturing defects or issues that may arise during normal use.
5. Can I add my company's trademark to the machine? Can the product be customized to meet specific requirements?
• Absolutely. We offer customization options, including adding your company's trademark and tailoring the machine to your specific needs. Please contact us with your detailed requirements.
6. What is the typical delivery time for your products?
• The standard production lead time is 3-5 days after receiving prepayment. Once the machine is ready, it takes an additional 2 days to prepare for shipping. Delivery to the port typically occurs shortly thereafter.
