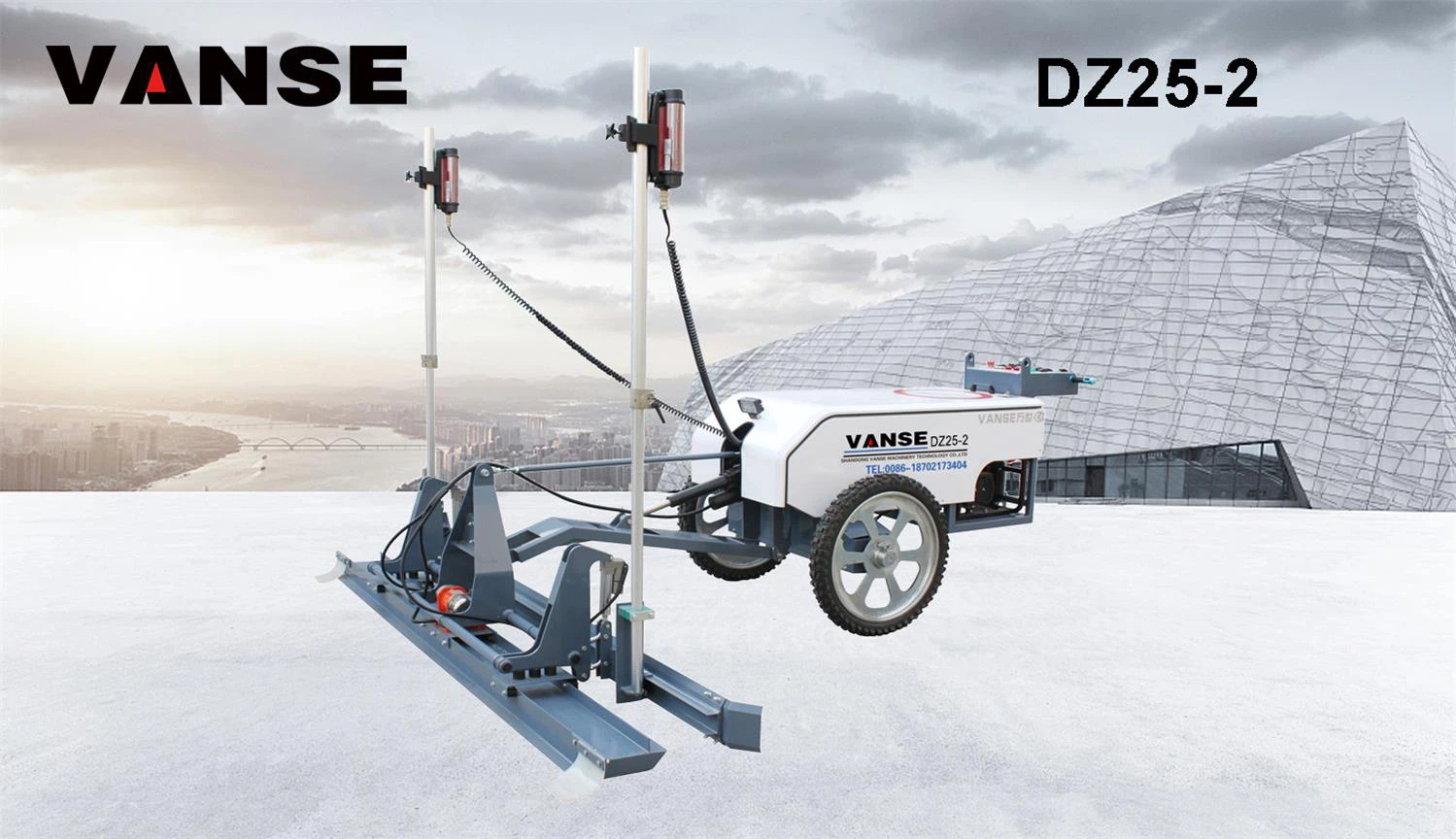

VANSE DZ25-2 2.5M Farm Laser Level Concrete Road Paving Laser Levelling Machines For Sale
Get superior productivity and flatness with the DZ25-2. Designed for small commercial, upper deck, and residential projects — the DZ25-2 provides you and your customers with high quality, professionally produced floors at a fraction of the cost of conventional methods.
With laser-controlled accuracy, this machine will level to higher tolerances than traditional methods and works well with cement mixes of varying slumps.
Send Inquiry
Product Details ofVANSE DZ25-2 2.5M Farm Laser Level Concrete Road Paving Laser Levelling Machines For Sale
Products Show
|
FACTORY DIRECT SALE |
FUNCTION POWERFUL |
TO SAVE TIME AND EFFORT |
LEVELING COMPACTING PAVING |
Product Details
ENGINE
This concrete laser leveller is equipped with the SAWAFUJI SH3900EX engine, which is powerful and stable. The design of the machine is robust and durable, and it can maintain excellent stability under high intensity working environment, ensuring the reliability and efficiency of long-term operation.
LASER RECEIVING SYSTEM
This concrete laser leveler is equipped with an imported Swiss Leica laser receiver, which can accurately receive signals from the laser transmitter and automatically control the plane and two-way slope. For the ground with complex shape and high drainage requirements, the system can also be equipped with a special shaped ground treatment module to ensure construction accuracy and efficiency.
OPERATING THE INTEGRATED CONSOLE
The concrete laser leveling machine is equipped with a humanized central console, and all control keys are reasonably arranged and accessible, making the operation more convenient. The integrated throttle start control platform is designed to be intuitive and easy to understand and operate. The device requires only one operator to perform all operations. The steering function can be easily realized through the buttons on the control panel, and the electric start system of the imported engine allows the operator to start the machine with only the touch of a button, greatly simplifying the operation process and making the operation extremely easy.
HIGH FREQUENCY PULSE COMPACTION VIBRATOR
The vibration plate of the two-wheel concrete laser levelling machine is made of special alloy materials and welded with wear-resistant materials, which greatly prolongs the service life. The whole machine adopts the integrated casting process of shell and base, and the dust cover is formed by one-time stamping, which significantly enhances the sealing performance of the whole machine. This design makes it safe to use in the working environment without explosion-proof measures, effectively avoiding problems such as empty drums, peeling, cracking and uneven ground, thus ensuring the stability and efficiency of construction quality.
NON-FIXED LEVELING HEAD
Concrete laser leveller designed for small commercial, high-rise deck and residential projects. The device uses laser control technology to achieve higher flatness than traditional methods and is compatible with concrete mixtures with different slumps. Its non-fixed flat head with independent suspension system can flexibly cope with uneven ground leveling work to ensure the consistency and high quality of the construction effect.
PUNCTURE RESISTANT TIRES
The two-wheel concrete laser leveller is equipped with zigzag design tires for superior anti-slip and wear properties. Its puncture resistance enables reliable operation in complex and variable operating environments. We provide two different specifications of tires to meet the needs of various engineering environments, please contact the salesman to order according to your specific needs!
Specification
|
Engine model |
SAWAFUJ |
Vibration system |
Electric motor |
|
Power |
2.8kW |
Tire |
Solid non-slip tires (with inflatable wide tires) |
|
Fuel |
Gasoline |
Exciting force |
2000N |
|
Fuel tank capacity |
17L |
Net weight |
490kgs/ 1080lbs |
|
Leveling width |
2.5m/ 8.20ft |
Dimensions |
3210*2730*1160mm/ 10.53*8.96*3.81ft |
Product Features
The two-wheel concrete laser levelling machine adopts the all-electric drive system, which has the advantages of quick response, smooth operation and green energy saving.
Its constant speed walking function not only improves the construction accuracy, but also effectively reduces the labor intensity of the operator.
Partner & Project cases
Company information
Introduction
Shandong Vanse Group was founded in 2013. The company seizes the historical opportunity of the rapid development of the concrete industry and adheres to the development direction of high-end, high quality and high efficiency. lt soon became a national high-tech enterprise integrating research and development, manufacturing, sales and after-sales of concrete equipment. The company has successfully reached project cooperation with a number of partners, such as Jingdong Logistics, Ningde Times, Great Wall Motor Company Limited, and CSCEC (China State Construction Engineering Corporation).
Vanse Group consists of many business divisions such as Vanse Machinery, Wanhui New Energy, Wanli Pre-control Machinery Manufacturing, Vanse Road and Bridge, Shanghai Vanse Machinery, etc.
The products are sold to 31 provinces, municipalities and autonomous regions in China. Our products are sold to 31 provinces, municipalities and autonomous regions in China. Our products are exported to more than 30 countries and regions, such as USA, UK, Russia, Germany, Saudi, Australia and so on.
In 2018, Vanse Group reached a technical cooperation agreement with British experts, introduced international high-end technology, and achieved international standards for the matching of humanized mechanical design and performance with laser systems. We also established in-depth cooperation relationships with Shandong University and Chang'an University, integrating industry, academia, research and application.
Vanse Group has never stopped thinking about the future and pursuing the hope of creating a better life for human beings.
Grasp the present, realize the future, Vanse will create a brilliant future together with you!
WORKSHOP
CERTIFICATION
EXHIBITION
AFTER SALE SERVICE
| Engineers provide door-to-door service, technical guidance and aftersales maintenance. We currently have our own agents in Thailand, Türkiye, Mexico, the United Kingdom and other places. |
|
| Strict quality control system, each product will exceed 12 hours of quality inspection, to ensure product quality. | |
| For our MACHINE, we have 12 months warranty! | |
| Within 12 months, if an accessory is broken, we will send you the accessory at once, free of charge or deliver the spare parts in next order. | |
| No responsibility for man-made destroy. | |
| lf there is any problem during use, we can supply on-line service. | |
| We are an independent factory, with 12 years of independent R & D production experience, we provide factory direct sales prices !!! |
|
|
All the above product information, customer evaluation, product consultation, netizen discussion and other content are important business resources of this store, and illegal reprinting and use without permission are prohibited.
|
Packing&delivery
PLYWOOD CASE/ PALLET
FAQ
| 01. What should be done if something goes wrong with the product? | |
| If you encounter any problems, you can send them to us by shooting a video, and our professional engineers will analyze and provide you with the best solution. If the problem occurs during the warranty period, we will replace the relevant parts for you free of charge. In addition, we have distributors in several countries who can provide you with on-site technical support to solve technical problems that you may not be able to handle on your own. | |
| 02. How to deal with the problem of damaged parts? | |
| We recommend that customers stock some common accessories according to the region and the environment of use. If other parts are damaged, we can send them to you with the next order by international express. | |
| 03. Do you guarantee the quality of your machines? | |
| Quality is always the top priority in our production process. We implement a strict quality control system for all products, covering from raw material inspection, parts inspection, semi-finished product inspection to finished product performance testing, to random sampling inspection before shipment, to ensure that every link meets high standards of quality requirements. | |
| 04. Is it possible to affix our trademark to the machine and customize it according to our requirements? | |
| Of course, we support customized products according to customer needs, and can label the machine with your trademark. | |
| 05. What is the delivery time? | |
| Normally, after receiving the advance payment, we will complete the production of the machine within 3-5 days. If you have an urgent need, we can also complete production and ship to the port within 2 days. |
