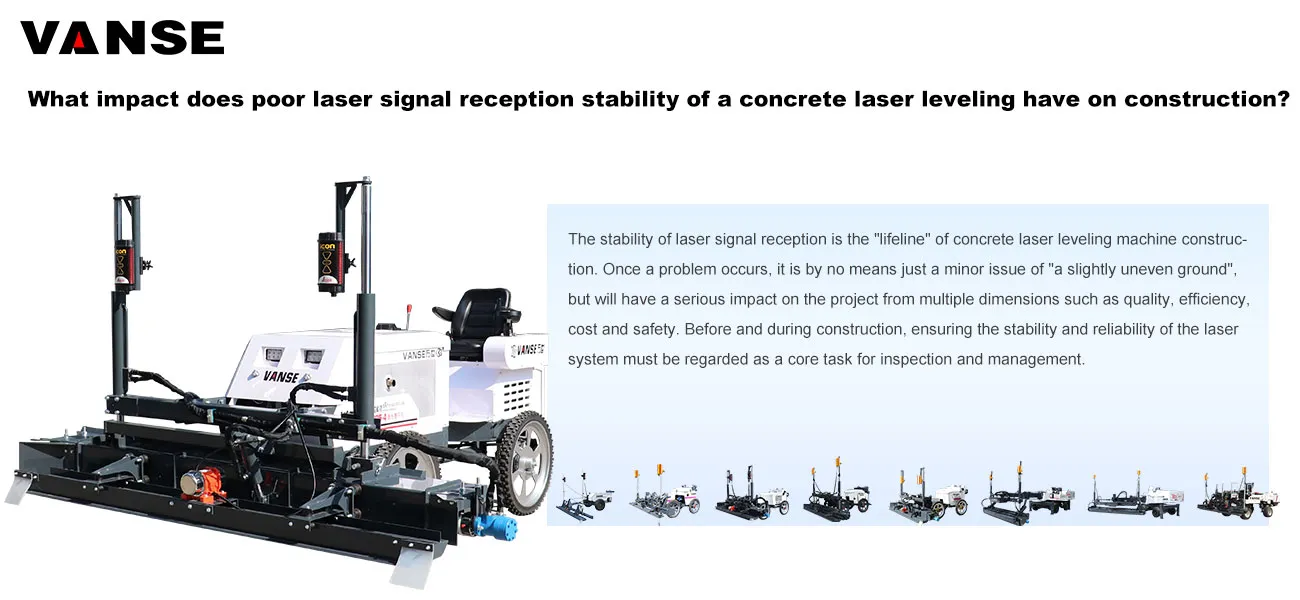

What impact does poor laser signal reception stability of a concrete laser screed have on construction?

The poor stability of laser signal reception in concrete laser levelings is a serious construction quality issue. It can trigger a series of negative chain reactions like a "domino effect".

The following are the specific impacts it has on construction, ranging from direct effects to long-term consequences:

Ⅰ. Direct Impact on Construction Quality and Precision (The most Core Issue)

The flatness does not meet the standard

Manifestation: The ground shows "wavy" undulations, local depressions or protrusions.

The reason is that the receiver signal is intermittent or fluctuating, causing the lifting cylinder of the leveling machine to constantly perform incorrect correction actions, and the scraper cannot maintain a constant height.

The levelness/slope is out of control

Performance: It is impossible to achieve the absolute level of the design (such as high-standard warehouses) or precise slope (such as ground with drainage requirements).

Reason: The laser emitter establishes an accurate reference plane. An unstable receiver means that the leveling has lost this reliable reference and is unable to spread the concrete to the designed height

Ⅱ. Operational Impact on Construction Efficiency and Cost

The construction speed has significantly decreased

Performance: Frequent shutdowns are required to inspect the laser transmitter, receiver or circuit.
The reason is that in order to ensure quality, the operator has to stop the construction for investigation once any abnormality is found in the process of flattening the head, which seriously slows down the progress.

The labor cost and labor intensity have increased

Performance: More experienced workers are needed for manual remediation.
The reason is that for uneven ground, a large number of workers need to use handheld trowels to "make up" in the later stage. This is not only time-consuming and labor-intensive, but also the accuracy of manual leveling is far lower than that of machines.

The risk of material waste increases

Manifestation: Inaccurate control of concrete usage.
Reason: Uncontrolled elevation may lead to local concrete being too thick (wasting materials) or too thin (requiring replenishment and affecting strength).

Ⅲ. Long-term Impacts on the Performance and Durability of Concrete

Hollowing and cracking of the ground

Manifestation: Irregular cracks appear on the ground after use.

The reason is that poor flatness leads to uneven thickness of the concrete surface layer in subsequent pouring. Under the action of load and shrinkage, stress concentration is prone to occur at the junction of thin and thick layers, thus causing cracking.

The wear resistance and service life of the ground have declined

Symptoms: Dust, sand and aggregates appear on the ground too early.

The reason is that high places are prone to wear and tear, while low places are likely to accumulate dirt and get damaged. At the same time, subsequent hardeners or sealants are also difficult to apply evenly, further reducing the overall durability of the ground.

Ⅳ. Derivative impacts on Subsequent processes and equipment operation

Difficulties in subsequent construction

Performance: High-standard industrial floors (such as VNA ultra-flat warehouses), epoxy floors, PVC roll material laying, etc. cannot be carried out or the cost has increased sharply.
The reason is that these processes have extremely high requirements for the flatness of the base layer (such as FF/FL values). If the base is uneven, either construction cannot be carried out or a huge cost needs to be spent on grinding or self-leveling to level it.

Affect high-rack shelves and automated equipment

Performance: Difficult installation of high-rack shelves and questionable stability; Automated equipment such as automatic guided vehicles (AGVs) and stackers operate unstably, have poor precision and a high failure rate.
Reason: These devices are extremely sensitive to the flatness of the ground. Even the slightest unevenness can cause the devices to shift, vibrate or stop rotating.

Common causes of unstable laser signal reception

After understanding the impact, it is also necessary to know the root cause of the problem in order to solve it in a targeted manner
Problems with the laser emitter itself: insufficient battery power, self-accuracy drift, or displacement or vibration caused by human or equipment collision.
Receiver and sensor issues: Receiver damage, photosensitive element blocked by dirt, poor contact of signal lines.
Environmental interference

Obstruction: Construction workers, equipment, and building materials temporarily blocked the laser beam.
Vibration: Heavy equipment is in operation nearby, or the tripod of the transmitter is not stable, causing the transmitter to shake.
Temperature and air flow: In extreme environments, heat waves can cause changes in air density, leading to slight refraction of laser beams (" mirage "effect), which affects the stability of long-distance signals.
Operational issue: When the transmitter is set up at a height that exceeds its effective range, or when the ground has a significant slope, the Angle between the laser line and the receiver is too large, resulting in poor signal reception.
Conclusion
The stability of laser signal reception is the "lifeline" of concrete laser leveling machine construction. Once a problem occurs, it is by no means just a minor issue of "a slightly uneven ground", but will have a serious impact on the project from multiple dimensions such as quality, efficiency, cost and safety. Before and during construction, ensuring the stability and reliability of the laser system must be regarded as a core task for inspection and management.

Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.
