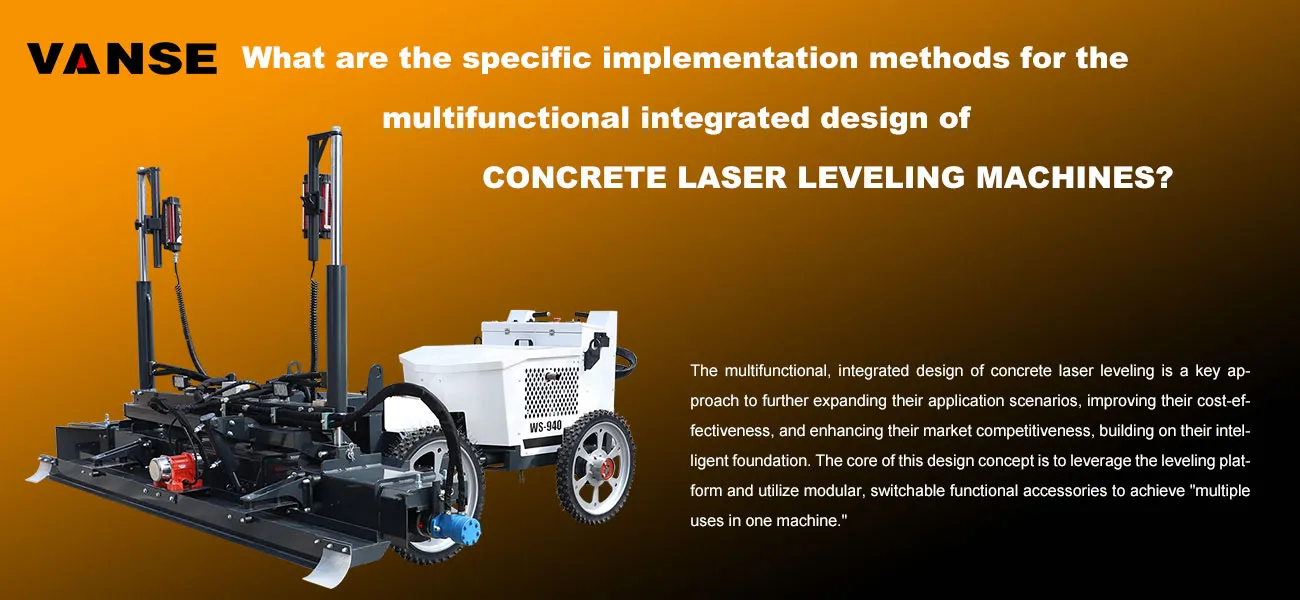

What are the specific implementation methods for the multifunctional integrated design of concrete laser leveling machines?

The multifunctional, integrated design of concrete laser leveling is a key approach to further expanding their application scenarios, improving their cost-effectiveness, and enhancing their market competitiveness, building on their intelligent foundation. The core of this design concept is to leverage the leveling platform and utilize modular, switchable functional accessories to achieve "multiple uses in one machine."

The following is a detailed explanation of this implementation, which can be understood from several perspectives:

1. Integration and Switching of Core Functional Modules

This is the most popular integrated approach, designed to allow a single machine to complete multiple closely related floor construction processes.

Leveling + Vibration Integration

Implementation: A hydraulic or electric vibrator is integrated in front of or within the leveling head. While the leveling blade levels the concrete, the vibrator provides high-frequency vibration to eliminate air bubbles and ensure a dense, compacted concrete.
Advantages: Combining two key processes into one reduces the need for separate vibrating equipment and personnel, improving construction efficiency and achieving uniform compaction.

Integrated "Leveling + Slurry Lifting"

Implementation: An adjustable slurry lifter is integrated behind the leveling head. Typically made of metal or composite, this plate kneads the surface immediately after leveling, lifting the cement and fine aggregate slurry to the surface, providing an ideal foundation for subsequent finishing.
Advantages: More uniform leveling application, better surface quality, and reduced preparation time for subsequent troweling.

Integrated "Leveling + Preliminary Troweling"

Implementation: This is a more advanced integration method, integrating a floating trowel plate or a small-diameter trowel disc behind the leveling head or as a switchable attachment. Preliminary troweling and finishing can be performed immediately after leveling and applying the leveling.
Advantages: This further consolidates process steps, making it particularly suitable for floors requiring a high surface finish and effectively reducing the workload of dedicated trowels later on.


2. Quick-Change Accessories and Modular Design

This is the technical foundation for achieving "multiple uses with one machine," encompassing both the mechanical interface and the control system.

Standardized Quick Connectors

Implementation: The mainframe is equipped with hydraulic quick-change connectors. Different working heads (such as leveling heads of varying widths, dedicated vibrating beams, and scrapers) are each designed with corresponding interfaces.
Advantages: Operators can change attachments in minutes, without tools, significantly improving equipment flexibility and utilization.

Modular Power and Control System

Implementation: The main machine provides modular hydraulic power and electrical control interfaces for various attachments. When different attachments are connected, the main control system automatically identifies the attachment type and displays the corresponding operation interface and control program.
Advantages: Plug-and-play operation simplifies operation, prevents misoperation, and ensures each accessory operates within its optimal parameters.


3. Specialized Integrated Designs for Special Processes

These designs are designed to meet the needs of specific flooring applications.

Integrated Steel Mesh Laying Function

Implementation: A steel mesh support and unwinding system is installed in front of the leveling. As the machine moves, it automatically raises the pre-placed steel mesh to the designed concrete cover height, where concrete is then laid and leveled.
Advantages: Ensures accurate rebar placement and uniform cover thickness. It's particularly suitable for reinforced floors, significantly improving the efficiency and accuracy of rebar placement.

Integrated insulation board laying and leveling

Implementation: For floor systems requiring an insulation layer (such as XPS board), a composite machine is designed that first installs the fixed insulation board, then performs concrete paving and leveling on top of the insulation board.
Benefits: Combining the two processes reduces equipment entry and exit times and improves composite floor construction quality.

Expanded Slipform Paving Function

Implementation: By replacing the machine with a powerful power system and specialized forming molds, the machine can not only level large floors but also perform continuous slipform construction of linear structures such as curbs and gutters.
Advantages: This greatly expands the machine's application range from flat floors to linear structures, making it a multifunctional construction center.


4. Integration of Auxiliary Functions

These functions don't directly affect leveling, but they can significantly improve construction quality, efficiency, and safety.

Automatic Curing Agent Spraying System

Implementation: A fluid reservoir and spray boom are integrated into the rear of the machine. After leveling is complete, curing agent is automatically and evenly sprayed according to a pre-programmed schedule.
Benefits: This allows for immediate, automated curing, ensuring concrete curing quality.

3D Intelligent Measurement System Integration

Implementation: As mentioned in the previous question, a total station, GNSS receiver, and other equipment are integrated into the machine as standard equipment, enabling fully automated, high-precision control.
Advantages: This represents the highest level of functional integration, integrating the core decision-making function of "measurement" to achieve truly intelligent construction.
In summary, the multifunctional integrated design of the concrete laser leveling machine is a systematic project, primarily reflected in the following aspects:
Mechanical: Utilizes quick-change interfaces and modular accessories.
Hydraulically/electrically: Provides standardized power and control interfaces.
Functionally: Vertically integrates process steps (vibration, slurry preparation, and troweling), while horizontally expanding applications (reinforcement mesh, insulation board, and slipforms).
Intelligently: Integrated measurement and decision-making systems, supplemented by automated auxiliary functions.


This design trend has transformed a single device from a simple "leveling tool" into a highly flexible "concrete surface treatment automation platform," meeting the comprehensive efficiency, quality, and cost control requirements of modern construction.


Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.
