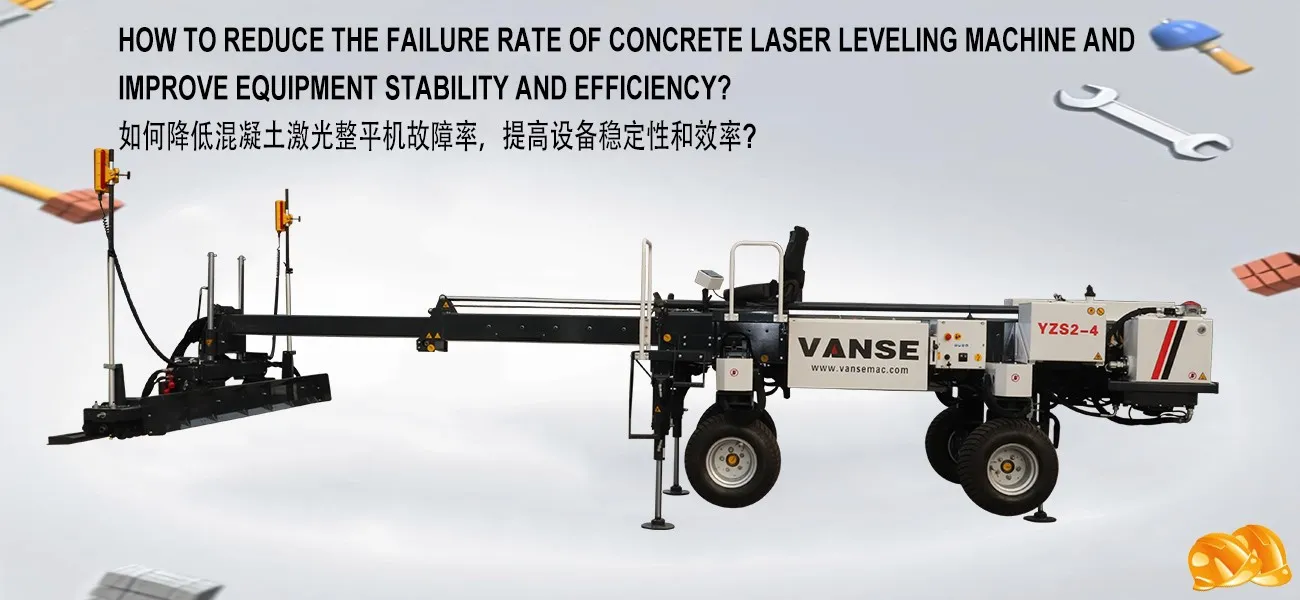

How to reduce the failure rate of concrete laser leveling machine and improve equipment stability and efficiency?

Concrete laser leveling machine is a key equipment in concrete construction. Its failure rate, stability and efficiency directly affect the quality and progress of the project. The following details the methods to reduce the failure rate and improve stability and efficiency from multiple dimensions such as equipment selection, daily maintenance, operating specifications, and environmental adaptation:

1. Scientific selection: reduce the risk of failure from the source

Matching project requirements

Choose equipment power and model according to the construction area (large-area factory/small-area floor), concrete thickness (super-thick base/thin layer finishing), and ground flatness requirements (precision industrial floor/ordinary civilian floor). For example, large-scale leveling machines with telescopic arms are required for ultra-large-area construction to avoid overload failures caused by "small horses pulling big carts".
Prioritize well-known brands, whose core components (laser transmitters, hydraulic systems, vibration motors) are more reliable in quality and after-sales parts are supplied in a timely manner.

Pay attention to the configuration of key components

Laser system: Choose brands with strong anti-interference ability (such as Swiss Leica) to avoid leveling accuracy errors caused by signal loss and reduce the frequency of equipment shutdown and debugging.
Hydraulic system: Use imported pumps and valves to reduce common faults such as oil leakage and unstable pressure; check whether the hydraulic oil cooling system is suitable for high temperature environments (such as open-air construction in summer).

2. Refined daily maintenance: reduce sudden failures

(I) Pre-shift inspection (must be done before each start)

Mechanical structure:

Check whether the scraper and vibrator of the leveler are loose or worn. If the gap between the scrapers is too large, the concrete surface will be uneven and need to be adjusted or replaced in time.
Check the wear degree and tire pressure of the track/tire. Insufficient track tension will cause walking deviation and increase mechanical load.

Power and hydraulic system:

Check the engine oil, fuel, coolant level, hydraulic oil tank oil level and oil cleanliness (if the oil is turbid, it may clog the filter element and cause abnormal pressure in the hydraulic system).
Idle for 3-5 minutes before starting, observe whether the hydraulic pipeline is leaking oil, and listen to whether the engine running sound is abnormal (abnormal sound may indicate bearing wear or valve problem).

Electrical and laser system:

Test whether the laser receiver signal is stable and clean the dust on the receiver lens (avoid direct sunlight to interfere with the signal, and install a sunshade).
Check whether the buttons and indicator lights on the control panel are normal to avoid malfunction due to failure of operating instructions.

(II) Post-shift maintenance (after daily construction)

Cleaning equipment:

Thoroughly clean the concrete attached to the machine body (especially the connection between the vibrator and the scraper, which will affect the movement accuracy after hardening). You can use a high-pressure water gun to rinse and then apply anti-rust oil.
Clean the radiator and air filter (if clogged with dust, it will cause the engine to overheat and reduce power output).

Targeted maintenance:

Add grease to the hydraulic rod, bearings and other moving parts (according to the model specified in the manual, such as lithium-based grease, to avoid mixing different brands to cause lubrication failure).
If the construction environment is dusty or muddy on the day, it is necessary to check the air filter and replace it if necessary (clogging the filter will cause insufficient engine air intake, incomplete combustion, increased fuel consumption and carbon deposits).

(III) Regular in-depth maintenance (perform according to the equipment manual)

Maintenance interval	Key maintenance content
Every 50 hours	Replace the hydraulic oil filter, check the sealing of the hydraulic pipe joints, and clean the sediment of the fuel filter.
Every 200 hours	Replace the engine oil and filter, check the tightness of the belt (too loose will cause the generator and water pump to rotate insufficiently, and too tight will easily break).
Every 500 hours	Check the calibration accuracy of the laser system (you can use a level to check, and recalibrate if the error exceeds ±2mm), and replace the hydraulic oil.
Extended downtime (>1 week)	Drain the fuel (to avoid freezing at low temperatures or fuel deterioration), disconnect the negative terminal of the battery, cover with a rainproof cloth, and pad the tires to avoid deformation under pressure.

3. Standardized operation: reduce failures caused by human factors

Operator training

Must be professionally trained before taking up the post and be familiar with the equipment operation process: for example, when starting, the laser system must be turned on before starting the vibration, and when stopping, the vibration must be turned off before the laser to avoid instantaneous load impact on the motor.
Overload operation is prohibited: for example, if the vibrator is inserted into the concrete to a depth exceeding the design range (usually ≤30cm), the motor will be overloaded and burned; avoid hard objects such as steel bars and stones when walking to prevent damage to the scraper.

Operation skills during construction

Control the travel speed: adjust according to the slump of the concrete (walk slowly when the slump is large to avoid surface water seepage; walk at a constant speed when the slump is small to prevent insufficient vibration), and avoid mechanical shock caused by sudden stops and sudden turns.
Laser system protection: turn off the laser transmitter when moving the equipment to avoid collision with the receiver; in case of heavy rain or strong electromagnetic interference (such as a large electric welder nearby), construction must be suspended to prevent signal disorder from causing equipment malfunction.

4. Environmental adaptation and emergency treatment: improve stability

Coping with extreme environments

High temperature weather: shorten continuous working time (stop for 10 minutes every 2 hours), check the hydraulic oil temperature (stop and cool if it exceeds 60℃), and add antifreeze to the engine water tank (increase boiling point).
Low temperature weather (<5℃): preheat the engine before starting (preheater can be used), and use low-temperature hydraulic oil to avoid system jamming caused by oil viscosity.
Humid environment: wipe electrical components dry in time after construction, and regularly check whether the circuit connectors are rusted.

Fault emergency treatment

If the laser signal is lost, stop the machine immediately to check whether the receiver is blocked, and restart the laser transmitter; if it is lost frequently, it may be that the transmitter battery is low or there is a signal interference source nearby.
When the hydraulic system leaks oil, stop the machine immediately and turn off the hydraulic pump, and replace the damaged oil pipe (it is forbidden to tighten the joints under high pressure to prevent oil spray and injury).
Establish a "fault record ledger" to record the cause and treatment method of each fault (such as "2023.10.15 The vibrating motor made an abnormal noise and returned to normal after replacing the bearing") to facilitate the tracing of high-frequency fault points and improve maintenance strategies in a targeted manner.

5. Long-term management: extend equipment life and improve efficiency

Develop a maintenance plan

Develop a "weekly/monthly/quarterly maintenance table" according to the equipment manual, and clarify the responsible person (such as the operator is responsible for pre-shift inspection, and the mechanic is responsible for monthly deep maintenance) to avoid maintenance omissions.
Reserve vulnerable parts (such as hydraulic filter elements, vibrator bearings, laser receiver batteries) to shorten downtime.

Periodic performance calibration

Ask the manufacturer's technicians to calibrate the laser leveling accuracy every 3 months (use a precision level to measure the flatness of the ground, and adjust the scraper angle if the error exceeds 3mm) to avoid mechanical deformation caused by long-term use that affects the construction quality, and indirectly reduce the secondary loss of equipment caused by rework.

Through the above measures, the failure rate of laser leveling machines can be significantly reduced (according to statistics, standardized maintenance can reduce the failure rate by more than 40%), while improving equipment stability (continuous operation time extended by 20%-30%) and construction efficiency (leveling area increased by 10%-15% per hour), ultimately achieving two-way optimization of project quality and cost.
