How do you calibrate a laser leveling for ±3mm super flat floors?

Calibrating a laser leveling for a "Super Flat" (SF) floor-typically classified as FF 100 or higher-requires moving beyond "good enough" and into the realm of extreme precision. At a ±3mm tolerance, your setup is the difference between a mirror-finish slab and a costly grinding job.

Here is the professional workflow for calibrating and verifying your equipment.

1. Dual-Point Laser Transmitter Calibration

Before the machine even touches the concrete, the laser transmitter (the "eye" in the sky) must be verified.

The Bench Test: Set the transmitter on a tripod at one end of a 50m (165ft) run.

Zeroing: Use a handheld receiver on a grade rod to find "level" at 5m.

The 180° Flip: Rotate the laser transmitter 180 degrees on its base. If the reading at the 50m mark shifts more than 1mm, the internal self-leveling mechanism is out of spec and needs professional servicing.

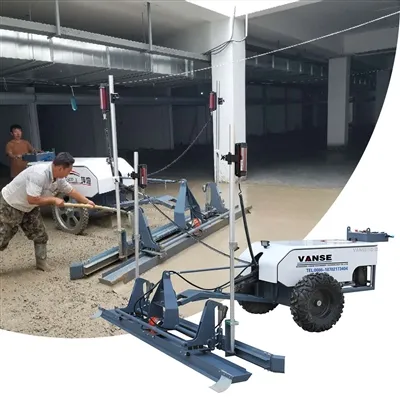

2. Receiver-to-Auger Synchronization

The machine's onboard receivers must be perfectly synced with the leveling head's actual cutting edge.

Manual Leveling: Lower the leveling head onto a known level surface (like an existing cured slab or steel rails).

Mechanical Zero: Use a digital spirit level to ensure the auger and plow are perfectly horizontal.

Sensor Matching: Adjust the electric masts (the poles holding the receivers) until both the left and right displays show "On Grade" simultaneously.

3. Systematic Bench-Marking (The "Daily Zero")

Environmental factors like heat shimmer or vibrations can shift your grade.

Establish a Master Benchmark: Set a permanent, immovable datum point (usually a column or a rebar pin driven deep into the subgrade).

Frequent Checks: Check the machine against this benchmark at the start of the day, after every break, and if the temperature swings by more than 10°C (18°F).

4. Adjusting for Concrete Slump and "Settle"

A laser leveling set to "0" doesn't always result in a "0" floor because concrete settles.

The Offset Factor: For super flat floors, you often calibrate the machine with a Positive Offset (usually +2mm to +5mm).

Why? This accounts for the displacement caused by the weight of the machine and the natural "slump" of the mix as the vibrator passes over it.

The Dipstick Test: Use an Fmin profiler or a 10ft straightedge immediately behind the machine to check the "wet" floor. If it's low, adjust your receiver offset immediately.

Summary Checklist for ±3mm Precision

Component	Action	Tolerance
Transmitter	Dual-axis 180° rotation check	< 1.5mm @ 30m
leveling Head	Side-to-side auger leveling	0.0° on digital level
Vibration	Frequency matching	Constant RPM
Subgrade	Pre-leveling compaction check	±5mm of target



Pro Tip: For Super Flat floors, never use a "sweeping" laser. Use a high-RPM fixed-plane laser (at least 600-900 RPM). If the laser spins too slowly, the machine's hydraulic reaction time will lag, creating "waves" in the floor that exceed your 3mm limit.



Would you like me to draft a Wet-Check Protocol for your crew to use during the pour to ensure the tolerance stays within 3mm? Contact us NOW



Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.
