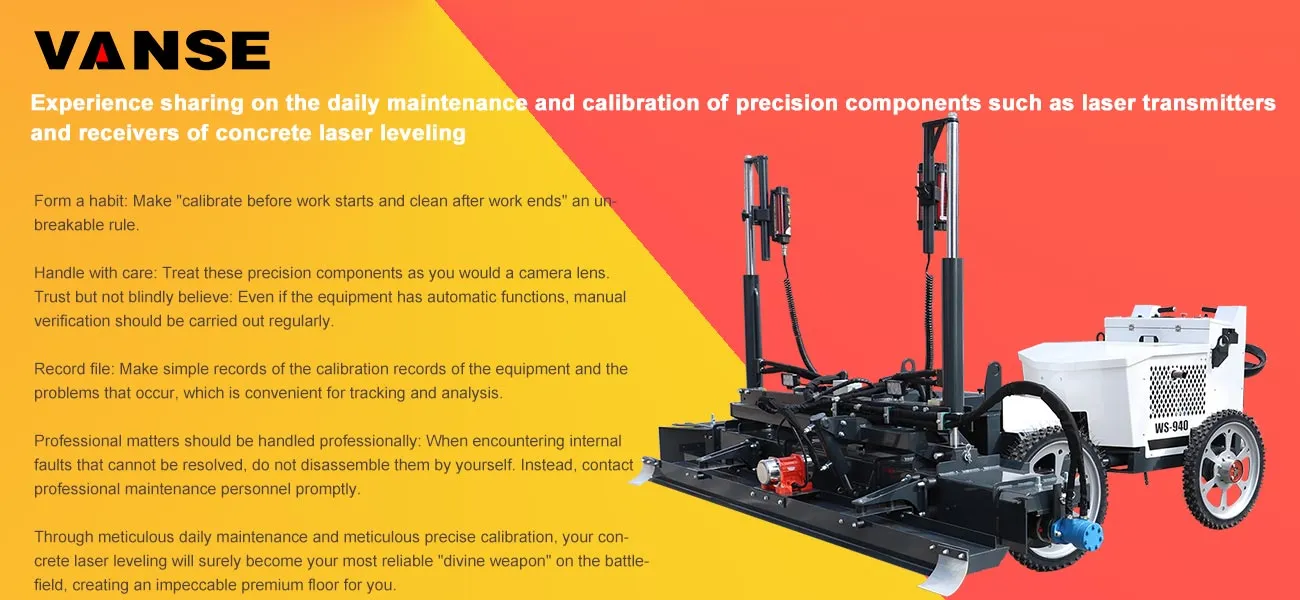

Experience sharing on the daily maintenance and calibration of precision components such as laser transmitters and receivers of concrete laser leveling

Part One: Daily Maintenance - Preventing Problems Before They Occur

The core of daily maintenance lies in "cleanliness, stability, power supply and inspection", with the aim of minimizing the occurrence of faults and extending the service life of equipment.

1. Maintenance of laser emitters

Cleanliness (top priority)

Lens/glass cover: After the daily construction is completed, the dust and cement slurry mist on the surface must be gently wiped or blown off with special lens paper or a blowing balloon. It is strictly prohibited to wipe directly with rough items such as clothes or ordinary tissues to avoid scratching the coating.
Body: After use, promptly remove the mud and dust on the surface of the body with a dry cloth. If there are stubborn stains, you can wipe them with a slightly damp cloth, but make sure that the moisture does not enter the gaps of the machine body.
Tripod/stand: Keep the outrigger clean to prevent sand and mud from entering the telescopic joint, which may affect stability and height adjustment.

Shockproof and storage

Handling is crucial: During transportation, it must be placed back in a dedicated carrying box, which should be filled with shockproof foam. It is strictly prohibited to throw it randomly in the vehicle toolbox and let it collide with other tools.
When setting up, ensure stability: When setting up on the construction site, make sure the tripod is supported on a solid and stable ground, away from vehicle passage channels and sources of severe vibration.
Storage environment: For long-term storage, it should be placed in a cool, dry and dust-free environment, avoiding high temperature and high humidity to prevent aging of internal electronic components and lasers.
Battery management

Use an original or certified charger.

Avoid over-discharging. When the battery level indicator light goes off, charge it in time.
When not in use for a long time, a charge and discharge maintenance should be carried out every 1 to 2 months to maintain the battery's activity.

2. Maintenance of the laser receiver and the main unit of the leveling machine

Receiver sensor

It is also necessary to keep the surface of the sensor clean and free from mud coverage.
Check whether the fixed seat is secure to prevent loosening due to vibration during the operation of the leveling.
Be careful when retracting and lowering the receiver rod to avoid bending or hitting it.

Lines and connections

Daily inspection: Before construction, check all the cables connecting the laser receiver to the control box for any damage, indentations, breaks or loose joints. Damaged circuits can cause intermittent signals, which is a common reason for the leveling machine to "go crazy".
Waterproof and oil-proof: Ensure that the connectors are clean and dry, and avoid immersion in cement slurry or oil stains.

Control box

Keep the exterior of the control box clean to prevent dust from entering through the heat dissipation holes.
Clean after turning off the machine to avoid short circuits.

Part Two: Precise Calibration - The Guarantee of Continuous Improvement

Calibration is the soul that ensures the accuracy of construction. It is recommended that calibration be carried out before each shift and before the commencement of key projects.

Preparations before calibration

Choose a relatively flat, stable area without strong vibration.
Make sure the laser emitter is fully charged.
Clean all related components.

Core calibration process (taking the common 360° rotating laser emitter as an example)

Step 1: Self-calibration (leveling) of the laser emitter
This is the most crucial step, ensuring that the laser beam itself is a perfect horizontal reference plane.
Rough leveling: Set up the tripod and use the bubble level on the tripod to roughly level the transmitter.
Power-on self-check: Turn on the transmitter to enter the automatic leveling mode. Most modern lasers have this function.
Wait for stability: Patiently wait for the device to automatically level itself (usually accompanied by a prompt sound or the indicator light stopping flashing). During this period, it is strictly forbidden to touch or move the tripod.
Verify self-inspection results (Important!)" After the self-check is completed, manual verification is required.

At about 5 meters and 15 meters away from the transmitter, set up a laser measuring rod or a receiving rod with scales.
Rotate the laser emitter and record the height readings A1, A2 (at 5 meters) and B1, B2 (at 15 meters) of the laser beam on the measuring rod at two distance points respectively.
Calculation and judgment: The difference between (A1-A2) and (B1-B2) should approach zero. According to the precision requirements of the equipment, the error is usually less than ±1mm. If the error is too large, it indicates that the self-check may be disturbed or there is a potential fault with the equipment. It is necessary to restart or contact after-sales service.
Step Two: Linkage calibration of the leveling machine system
This step is to ensure that the leveling machine can correctly identify and strictly implement the laser reference surface.
Install the receiver: Install the laser receiver at the specified position on the mast of the leveler.
Establish a reference: Let the laser beam shine on the middle position of the receiving rod. At this point, the elevation display on the control panel should be the "0" point or the middle value.
High point and "low point" calibration:

High point calibration: Slowly raise the receiving rod. When the laser beam moves to the very top of the receiver (the position where the signal is about to be lost), press the "High Point" or "+" calibration key on the control panel. The machine will record this position as the maximum height that "requires a shovel".
Low point calibration: Slowly lower the receiving rod. When the laser beam moves to the bottom of the receiver, press the "Low point" or "-" calibration key. The machine will record this position as the limit depth that "requires lifting and shoveling".
Verify the linkage accuracy

Move the receiving rod back to the reference "0" position, and then move it up and down a few millimeters respectively (for example, +3mm, -3mm).
Observe whether the display on the control panel changes accordingly and linearly, and at the same time listen to whether the response of the hydraulic system of the leveling machine is timely and accurate.
Field test: Conduct a short-distance trial scrape on the prepared sand or low-grade concrete, and use a level or straightedge to check whether the flatness of the scrape meets the requirements.

Common Problems and Quick Troubleshooting

Question 1: The laser signal is intermittent

Troubleshooting: ① Check if the receiver is clean. ② Check all cable connection lines. ③ Check the battery power of the transmitter. ④ Is there any strong interference around (such as other laser equipment, direct strong sunlight)?

Question 2: The action of the leveling machine is opposite to the laser command

Troubleshooting: The "high point" and "low point" Settings during calibration were reversed. Re-perform the linkage calibration.

Question 3: The construction ground shows waves or large areas of unevenness

Investigation: ① The laser emitter was touched during the construction period. ② The self-check of the laser was not completed or inaccurate. ③ The tracks of the leveling machine were moving on a soft foundation, causing the machine body to tip over. ④ The calibration accuracy is insufficient and needs to be recalibrated.

Question 4: The laser is unable to perform self-checking

Troubleshooting: ① The ground where the equipment is set up is too soft or has excessive vibration. ② If the equipment exceeds the automatic compensation range, it needs to be roughly leveled again. ③ Internal equipment failure requires reporting for repair.

Experience summary

Form a habit: Make "calibrate before work starts and clean after work ends" an unbreakable rule.
Handle with care: Treat these precision components as you would a camera lens.
Trust but not blindly believe: Even if the equipment has automatic functions, manual verification should be carried out regularly.
Record file: Make simple records of the calibration records of the equipment and the problems that occur, which is convenient for tracking and analysis.
Professional matters should be handled professionally: When encountering internal faults that cannot be resolved, do not disassemble them by yourself. Instead, contact professional maintenance personnel promptly.
Through meticulous daily maintenance and meticulous precise calibration, your concrete laser leveling will surely become your most reliable "divine weapon" on the battlefield, creating an impeccable premium floor for you.



Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.
