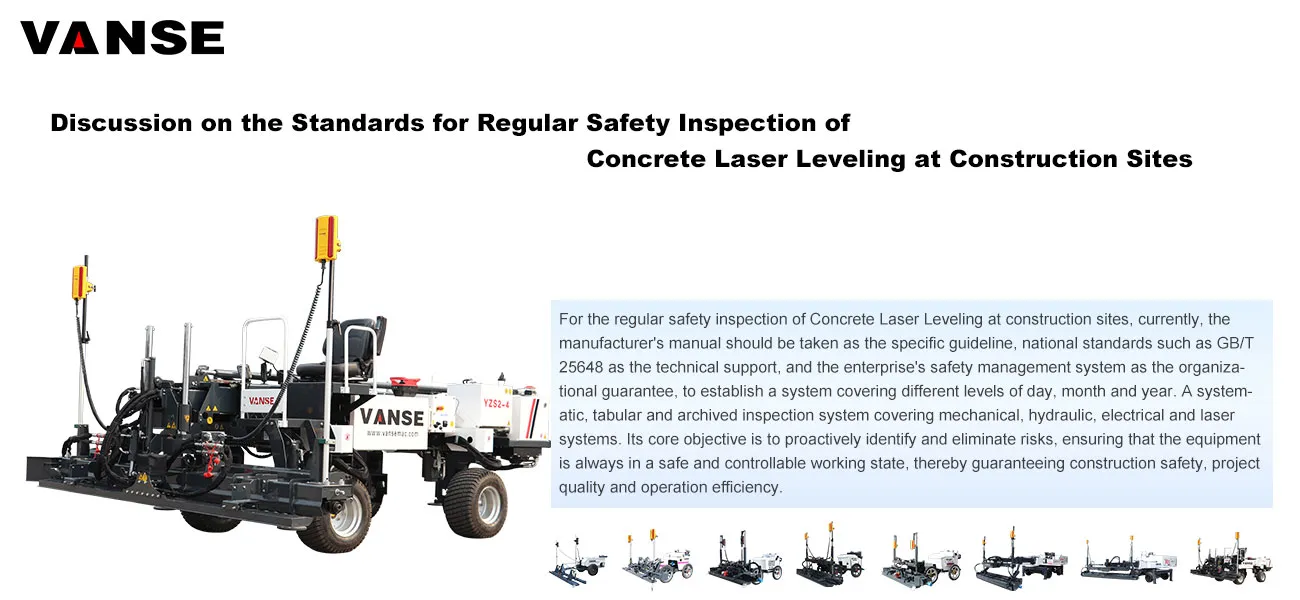

Discussion on the Standards for Regular Safety Inspection of Concrete Laser Leveling at Construction Sites

Regular safety inspections of Concrete Laser Leveling are crucial for preventing accidents and ensuring the safety of personnel and the integrity of equipment. At present, China does not have a national mandatory independent inspection standard for the specific equipment of Concrete Laser Leveling machines. However, its safety inspection must follow a composite standard system composed of general regulations, relevant standards, industry best practices and requirements of equipment manufacturers.

The following is a systematic discussion on the regular safety inspection standards for Concrete Laser Leveling at construction sites:

Ⅰ. Core Basis Framework of Inspection Standards

National General Safety Regulations and Standards (Mandatory Bottom Line)

The "Work Safety Law of the People's Republic of China" stipulates the responsibility of production and business operation entities for ensuring the safety of equipment.
Regulations on Safety Supervision of Special Equipment and related procedures: Although Concrete Laser Leveling machines are generally not included in the "Special Equipment" directory, the lifting components (if any), hydraulic systems, and electrical systems on them need to refer to relevant safety concepts.
GB/T 25648-2010 "Laser Motor Graders for Road Construction and Maintenance Machinery" : This is the most direct relevant recommended national standard, covering safety requirements, performance test methods, etc., and is an important technical reference for inspection.
GB 5226.1-2019 "Mechanical and Electrical Safety - Mechanical and electrical equipment - Part 1: General Technical Conditions" : Applicable to the safety inspection of the electrical system of equipment.
GB/T 15706-2012 "General Principles for Mechanical Safety Design - Risk Assessment and Risk Reduction" : It provides methodological guidance for safety risk assessment.

Manufacturer's technical documents (primary basis)

Equipment Operation and Maintenance Manual: This is the most specific and important standard. The manual clearly stipulates the items, cycles, methods and safety warnings for daily inspections and regular maintenance.
Safety Operation Manual: It indicates the location, function and inspection methods of the safety devices of the equipment.

Industry best practices and construction site management systems

The "Safety Management Measures for Large Equipment" and "Inspection Standards for Mechanical Equipment at Construction Sites" formulated internally by large construction groups (such as China State Construction Engineering Corporation and China Railway Group, etc.) usually include specific inspection requirements for Concrete Laser Leveling.
The industry-wide principle of "management, utilization, maintenance and repair" and the "three determinations" system of fixed personnel, fixed machines and fixed positions.

Ⅱ. Core Contents and Standards of Regular Safety Inspection (Practical Checklist)

Regular inspections should be divided into three levels: daily inspection, monthly inspection and annual inspection. The key points are as follows:

A. Daily inspection (conducted by the operator or A designated person before each day's operation)

Appearance and structure: Inspect the main frame, scraper, and vibrator housing for any cracks, severe deformations, or loose bolts.
Safety device

Emergency stop switch: Whether the function is effective.
Warning signs and lights: Are they clear and in good condition?
Protective cover: Whether the protective covers of the moving parts (hydraulic rods, belts, drive shafts) are firm.
Laser system: Check whether the receiver and sensor are clean, firmly connected, and whether the self-check upon startup is normal.
Walking and lifting: Conduct a trial run to check whether the walking, turning, and lifting of the scraper are smooth and free from jamming.
Leakage inspection: Visually inspect for obvious leakage of hydraulic oil, fuel oil and lubricating oil.
Tires/tracks: Check if the air pressure is normal, if the tracks are neither too tight nor too loose, and if there is any damage.

B. Monthly/Quarterly inspection (conducted by equipment administrators or professional mechanics)

On the basis of the daily inspection, add:
Hydraulic system

Oil level and quality: Check the oil level of the hydraulic oil and observe whether the oil has emulsified or deteriorated.
Pipelines and joints: Systematically inspect all high-pressure hoses for wear, bulging, aging, and for leakage at joints.
Pumps and valves: Check the hydraulic pump and control valve blocks for any abnormal noise or overheating.
Electrical system

Insulation and fixation of the circuit: Check whether the main wire harnesses are damaged or aged, and whether the fixation is reliable to prevent them from being crushed.
Battery: Check if the battery terminals are corroded and if the connections are firm.
Control unit: Check whether the control panel, remote control (if any) buttons, and joystick functions are normal and reliable.
Transmission and Vibration system

Vibrator: Check whether the temperature and sound of the vibrator bearing are abnormal and whether the fastening bolts are secure.
Reducer/transmission shaft: Check for any abnormal sounds, oil leakage, and whether the lubrication is good.
Key parts of structural components: Use tools to recheck the torque of bolts at critical force-bearing parts (such as the hinge points of the lifting arm and the welding points of the frame).

C. Annual major inspection or post-overhaul inspection (conducted by professional engineers or manufacturer service personnel)

This is the most comprehensive inspection, approaching the performance and safety assessment of the equipment at the factory.
Systematic performance testing

Laser system accuracy calibration: Use professional tools to recheck and calibrate the elevation and slope control accuracy of the Leveling on a standard test site.
Hydraulic system pressure test: Check whether the working pressure of the system is within the rated range and whether there is any internal leakage.
Comprehensive engine inspection (if any) : including oil analysis, emission testing, power testing, etc.
Non-destructive testing of key components: For welds and stressed parts of major structural components, magnetic particle or ultrasonic testing can be adopted to check for internal cracks.
Brake system test: Test the effectiveness of parking brake and emergency brake.
Comprehensive safety function verification: The system tests all functions such as emergency stop, limit, and overload protection.
Document review and update: Check previous maintenance records and update equipment safety files.

Ⅲ. Standards for Inspection Records and Archives Management

Inspections must be "recorded and traceable". The records should at least include:

Inspection date, equipment number, model.
Inspection type (day/month/year).
Inspection items, standard requirements, and actual measurement conditions.
Problems identified and handling measures (immediate rectification, rectification within a specified time limit, suspension of use).
The inspectors and the reviewers sign.

Ⅳ. Discussion and Suggestions

Standard gap: It is urgently necessary for industry associations or leading enterprises to take the lead in formulating more detailed group or industry standards for the "Safety Inspection Regulations for Concrete Laser Leveling Machines in Construction", unifying inspection items, methods and cycles.
Technological upgrade: Encourage the application of Internet of Things (iot) technology to achieve remote monitoring and early warning of equipment operation data (oil pressure, temperature, vibration frequency), transforming "regular inspection" into "condition-based inspection".
Personnel qualifications: Inspection personnel, especially those conducting monthly and annual inspections, should receive training from equipment manufacturers or professional institutions and possess the corresponding capabilities.

Conclusion

For the regular safety inspection of Concrete Laser Leveling at construction sites, currently, the manufacturer's manual should be taken as the specific guideline, national standards such as GB/T 25648 as the technical support, and the enterprise's safety management system as the organizational guarantee, to establish a system covering different levels of day, month and year. A systematic, tabular and archived inspection system covering mechanical, hydraulic, electrical and laser systems. Its core objective is to proactively identify and eliminate risks, ensuring that the equipment is always in a safe and controllable working state, thereby guaranteeing construction safety, project quality and operation efficiency.



Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.
