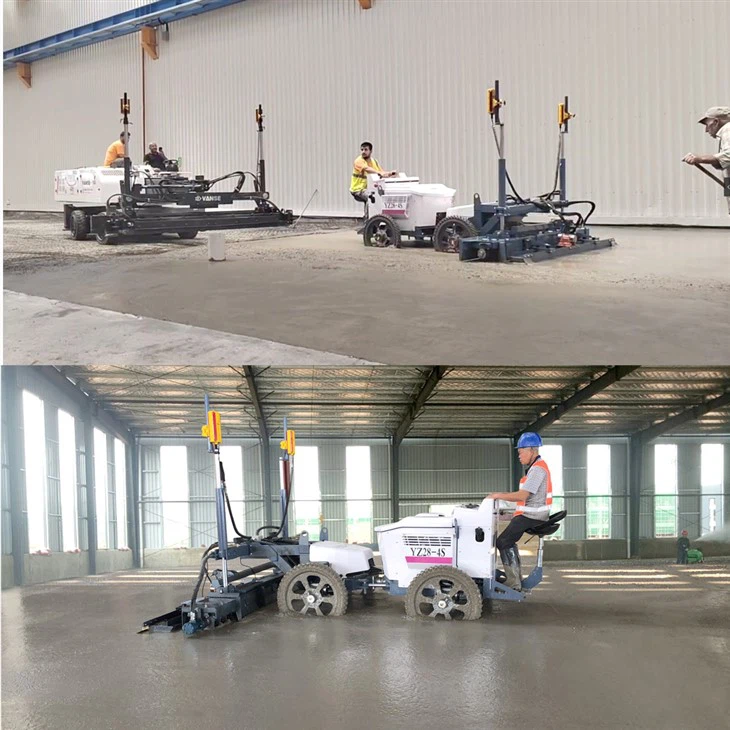

Vanse 2.8 Meters Laser Leveling Head Width Self-Leveling Concrete Laser Leveling Machine
🌻1. Honda engine, reliable and fuel-efficient.
🌻2. Walking at a constant speed not only makes it more precise, but also reduces the operator's labor force.
🌻3. Standard anti slip system.
🌻4. Quick elevation and rapid detection device.
🌻5. Equipped with two types of tires, suitable for different working conditions.



product details
Shandong Vanse Machinery Technology Co.,Ltd

Digital construction management: The construction report is generated through the built-in sensor of the equipment, including flatness curve, fuel consumption statistics, etc., to help refine cost control.
Tool-free filter replacement: The air filter and oil filter support manual disassembly and assembly, and the maintenance time is shortened by 50%.

Long service life: Key structural parts are treated with hot-dip galvanizing to prevent corrosion and rust, and the service life can reach 8-10 years under normal working conditions.
Low energy consumption design: The engine speed automatically drops to 1200rpm at idle speed, and with the load-sensitive pump, the comprehensive fuel consumption is 12% lower than similar products.

Electrical safety protection: The circuit system is equipped with overload protection, leakage circuit breaker and waterproof connector to prevent the risk of short circuit fire.
Operation authority management: Double certification of key switch and password lock to prevent untrained personnel from misoperation.

Construction Plan Support: Provide full-process technical guidance from base treatment to seam cutting and maintenance to help projects land efficiently.
Environmental compliance: The fuel system adopts a closed design to prevent oil leakage pollution, and the waste oil recovery rate is more than 95%, which meets the requirements of environmental protection regulations.
product parameters
| Model | YZ28-4S | Vibration system | Electric motor |
| Engine model | HONDA GX690 | Tire | Solid non-slip tires(with inflatable wide tires) |
| Power | 18.4kW/ 25HP | Exciting force | 2000N |
| Fuel | Gasoline | Net weight | 950kgs/ 2094lbs |
| Fuel tank capacity | 20L | Dimensions | 3700*3000*1300mm/ 12.14*9.84*4.27ft |
| Leveling width | 2.5m/ 8.20ft | Paving mode | Hydraulic spiral conveyor paving |
