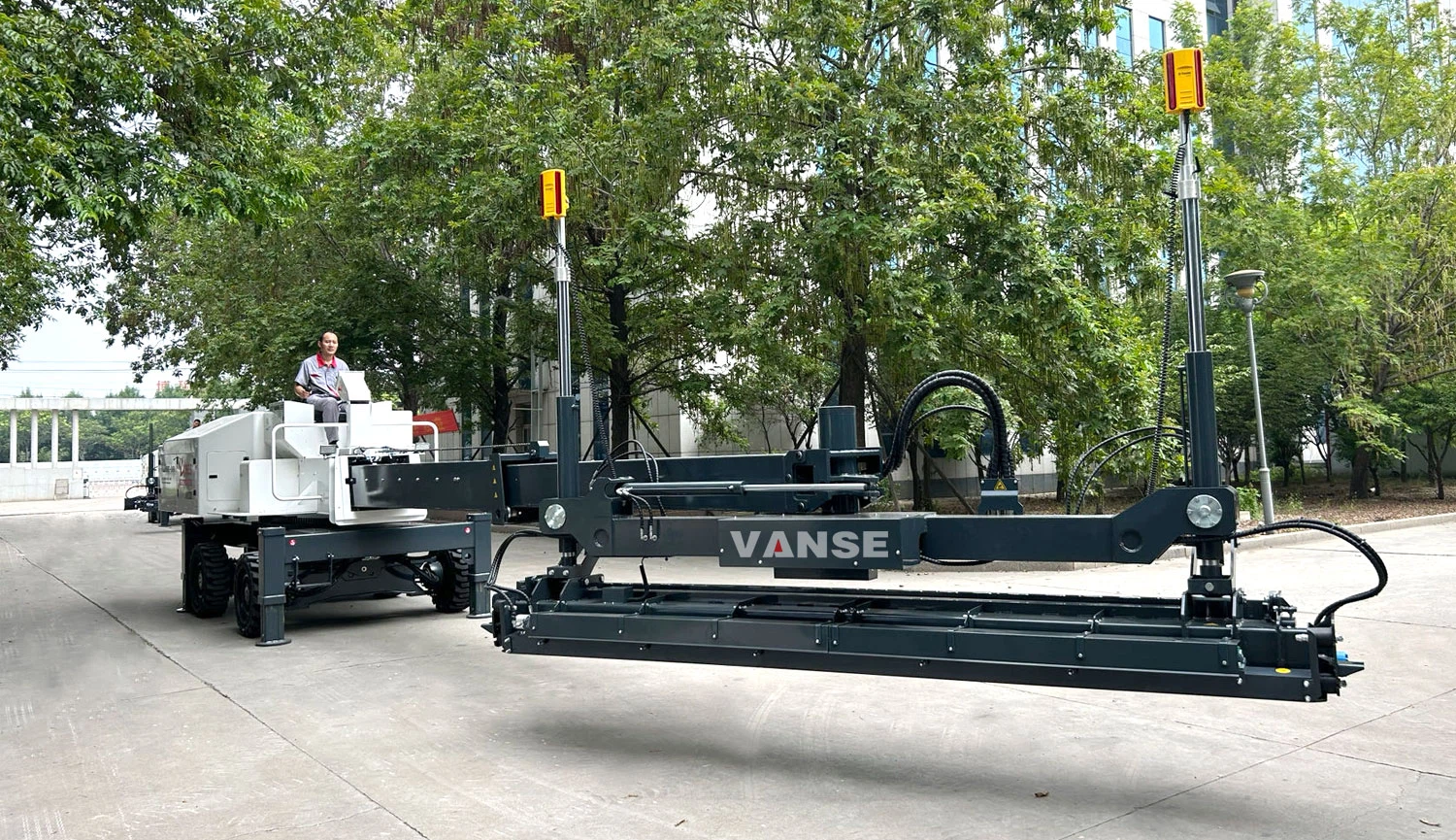

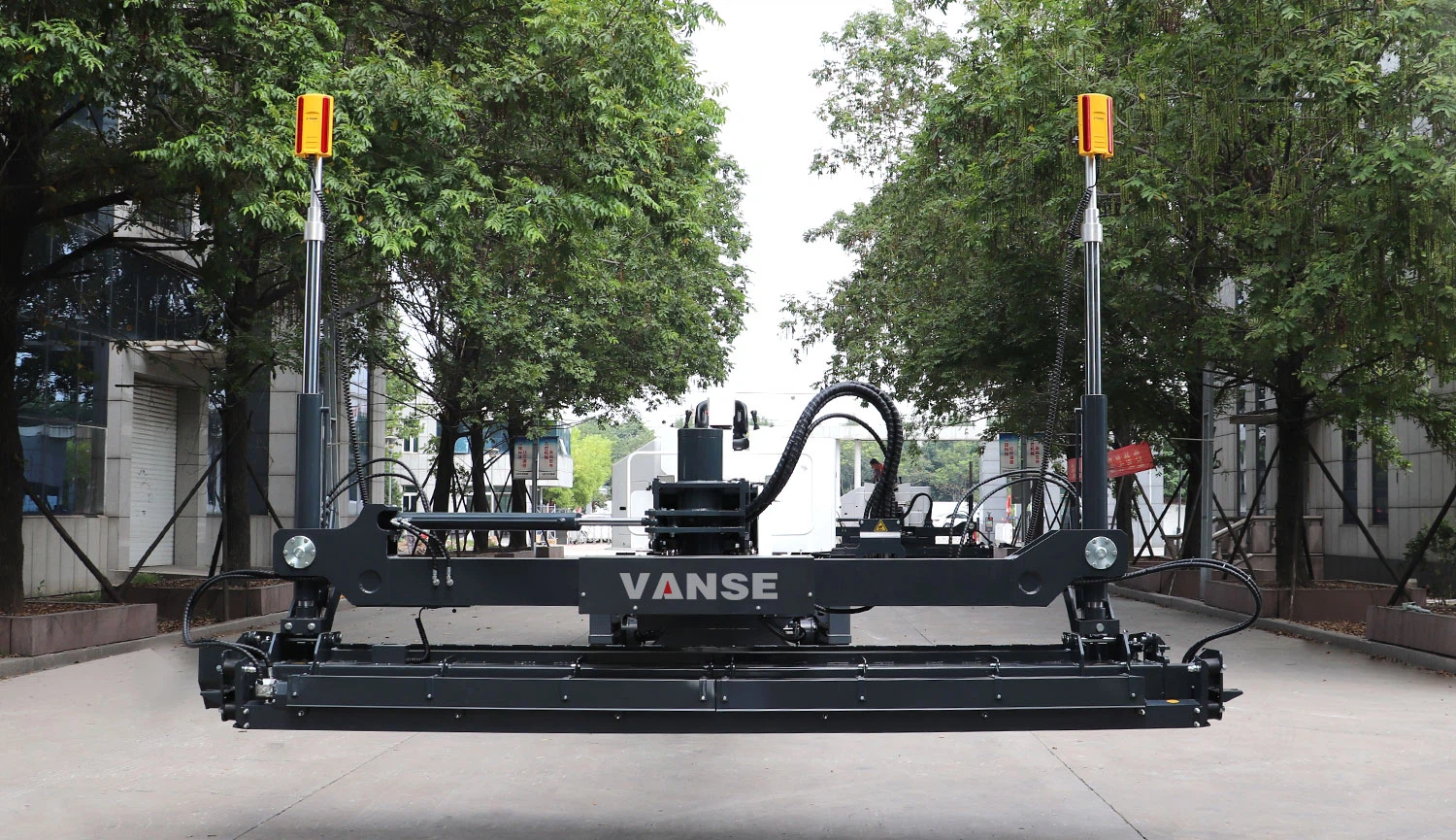

VANSE YZ40-4E Construction Building Use Concrete Pavement Laser Leveling Machine
⚽2. One click leveling of the body allows for easy handling of various complex road surfaces.
⚽3. The automatic leveling system is not only more precise, but also reduces the operator's labor force.
⚽4. Standard cleaning system with a maximum cleaning pressure of 150Bar, large capacity water tank, convenient and fast flushing.
⚽5. Solid rubber tire with process grooves, resistant to punctures and more comfortable.
⚽6. Optional inflatable wide tires.
⚽7. More comprehensive and automated random accessories to meet diverse needs and more convenient machine maintenance.
⚽8. The head comes standard with soft landing function.
⚽9. High-power engine from an internationally renowned brand, highly efficient and energy-saving.
⚽10. The hydraulic system uses the internationally renowned brand Danfoss, with excellent performance.
⚽11. Internationally renowned brand laser system, accurate and fast.
Send Inquiry
Product Details ofVANSE YZ40-4E Construction Building Use Concrete Pavement Laser Leveling Machine
product details
Shandong Vanse Machinery Technology Co.,Ltd
Intelligent electronic control console
The parameter display monitors 12 data such as engine speed and hydraulic pressure in real time, supports one-button setting of laser parameters (left/right lasers are adjusted independently), and the handle controls the telescopic arm and steering with stepless speed change, and the operation error rate is < 3%.
Hydraulic spiral paving + vibration compaction
3000N excitation force combined with 60Hz high-frequency vibration, combined with the forward and reverse bidirectional feeding of the spiral conveyor, to achieve paving, leveling, and vibration forming in one step, with a construction efficiency of 24㎡/min, which shortens the construction period by 50% compared with traditional processes.
Imported engine drive
Equipped with Yanmar 4TNV98T diesel engine, rated power 63.9kW (87HP), suitable for working conditions below 3000 meters above sea level, power attenuation rate is 20% lower than the industry average, and plateau operation stability is outstanding.
Four-wheel drive + three-mode steering
Hydraulic four-wheel drive system with two-wheel/four-wheel/crab steering mode, minimum turning radius of 2.9 meters, flexible turning in narrow space; excellent off-road performance, can adapt to 15° slope and soft foundation construction.
product parameters
| Engine model | YANMAR 4TNV98T | Telescopic arm | 6m/ 19.69ft long, 360°turn |
| Power | 57kW /78HP | Tire | Solid non-slip tires (optional inflatable tires) |
| Fuel | Diesel | Leveling head swing | Left swing: 45°; Right swing: 75° |
| Fuel tank capacity | 140L | Paving mode | Hydraulic spiral conveyor paving |
| Exciting force | 5600N (MAX) | Steering mode | Two wheel, four wheel, crab steering |
