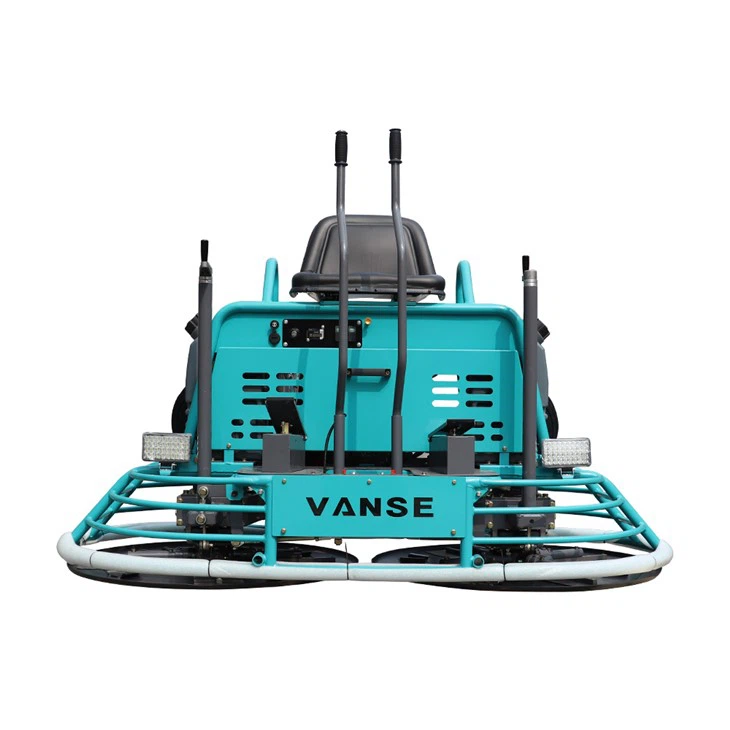

VS836 Ride-on Type Concrete Trowel Mechanical Power Troweling

Introducing the ride on concrete power trowel machine, a state-of-the-art solution for superior concrete finishing. This machine is equipped with a twin stick, multi-directional steering system that offers precision control and full maneuverability, making it easy to navigate through any construction site.

The dual mode non-overlapping blades ensure a consistently smooth finish, while the option to attach clip-on float discs or disc pan floats allows for superior float operations, catering to a variety of finishing needs. Precision-machined, tight tolerance spider plate assemblies are designed to provide exceptional balance and extend the machine's lifespan.

Built for high-speed performance, this ride on concrete power trowel machine is ideal for superior finishing in less time. Its heavy-duty gearboxes are engineered for long life and low maintenance, ensuring reliability and durability on the job. An adjustable operator's seat offers greater comfort during extended use, and a standard light kit is included to improve visibility in poorly lit conditions.

Experience the efficiency and control of the ride on concrete power trowel machine, designed to meet the demands of professional contractors and deliver a high-quality finish every time.

The dual-disc system significantly enhances operational productivity. This mechanism allows for the simultaneous installation of a pair of pulping discs, facilitating expedited pulping. Compared to standard trowels, the efficiency in construction is increased by a magnitude of 5 to 8 times, with the singular operation diminishing labor expenses.

Furnished with a 19-liter water reservoir and fuel container, the machine is capable of sustained operation over extended periods.

The foot-activated safety feature enables a swift engine shutdown, enhancing safety measures. Additionally, the foot-controlled throttle offers agile and swift responsiveness.

A lamp with high luminosity is capable of functioning effectively in low-light conditions.

Featuring a Honda GX690 high-horsepower electric start engine, this equipment boasts robust and dependable performance. The copper-crafted sprinkler joint and valve are designed to efficiently prevent rusting within the sprinkler system.

Enhanced with increased weight, the machine delivers superior ground compaction, significantly boosting the density of the concrete surface. This results in improved construction efficiency that surpasses handheld trowel machines. The mechanical steering system offers stability and reliability, along with a responsive and comfortable user experience.

profile



Shandong Vanse Machinery Technology Co., Ltd. was founded in 2013, specializing in the production of concrete laser leveling machines, power trowels, and emery spreaders for more than ten years.
We have more than 50 inventions and 200 patents.
It has successfully reached project cooperation with many partners, such as Jingdong Logistics, Ningde Times,Great Wall Motor Company Limited,and Luqiao China Construction.
Our products are sold to 31 provinces, cities and autonomous regions in China, exported to more than 30 countries and regions such as USA, UK, Russia, Germany, Indonesia, Australia,etc.
In 2018, we reached technical cooperation with British experts. Introduce international high-end technology, humanized mechanical design and use performance. Make the matching of laser system reach international standard. We also establish an in-depth cooperation relationship with Shandong University and Chang'an University for the integration of production, research and use.

Once the operator assumes the correct stance, depress the flameout pedal with the left foot followed by a gentle press on the accelerator with the right. Initiate the engine, grasp the joystick firmly, and let it idle at a slow pace before advancing the throttle for regular operation. To advance, push the joystick away; to retreat, pull it towards you. For a clockwise rotation, use the right hand to pull and the left to push simultaneously. Conversely, for a counterclockwise turn, switch the hand positions. Steering right is achieved by moving the joystick rightward with both hands, and leftward by moving it leftward. To cease blade rotation and idle the machine, release the right foot pedal; to power down the machine, release the left. Finally, switch off the engine to conclude operations.

When utilizing the machine with a disc attachment and encountering suction, avoid prolonging accelerator pressure, which could damage the clutch. Instead, while applying the accelerator, manipulate the handle to alleviate chassis friction or adjust the rear frame to disengage from the suction point.

Routine checks of the belt tension are essential to ensure proper machine function.

Prior to operation, ensure the engine throttle cable has reset to the minimum idle speed and verify that the engine speed peaks when the accelerator is fully engaged.
