Concrete Asphalt Road Saw Cutting Machine Concrete Saw Cutting Machine Of Concrete Floor Construction For Sale
🔨2. Power system: Equipped with Honda GX390 engine, it has strong power and stable performance. Compared with some similar products on the market, its power output is more abundant, which can easily cope with the cutting task of high-hardness concrete, ensure the smooth and efficient cutting process, and greatly improve the construction efficiency.
🔨3. Cutting depth adjustment: The manual screw adjustment method is adopted, and the cutting depth can be flexibly adjusted within the range of 50mm-170mm to meet the diverse needs of cutting depth for different projects. The precise depth adjustment function ensures the accuracy of cutting, which is obviously superior to some concrete cutting saws that are inconvenient to adjust.
🔨4. Guide design: Equipped with folding guide wheels, it can effectively guide the cutting direction during the cutting process, ensure that the cutting path is straight, and greatly improve the cutting accuracy. This design is difficult to be found in hand held concrete cutting machines, making the VS-HM501 perform better in large-area and long-distance cutting operations.
Send Inquiry
Product Details ofConcrete Asphalt Road Saw Cutting Machine Concrete Saw Cutting Machine Of Concrete Floor Construction For Sale

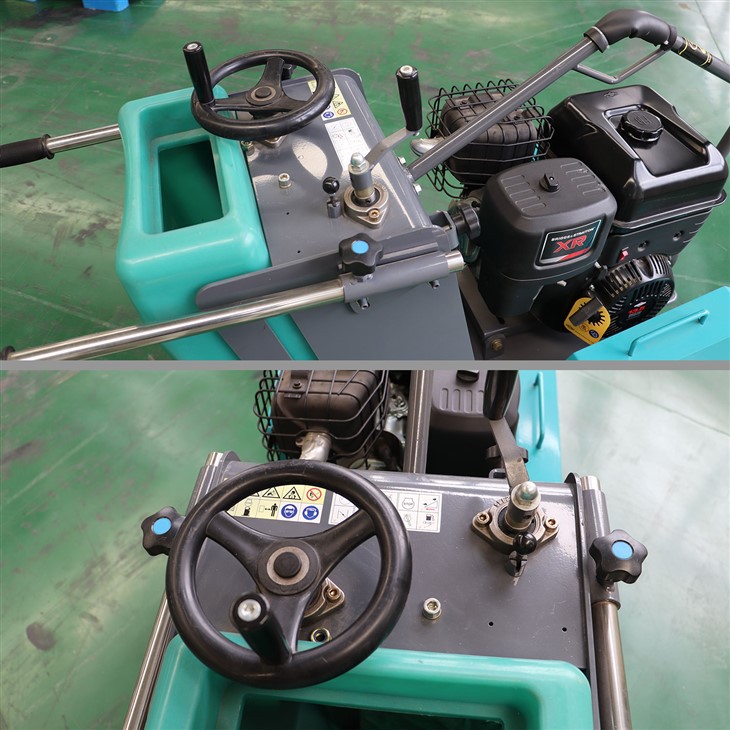

VANSE VS-HM501 is a high-performance concrete cutting machine. It comes with a Honda GX390 engine that provides stable and strong power. The blade shaft diameter of 50mm ensures smooth operation. The cutting depth can be adjusted from 50mm to 170mm with a manual screw, making it adaptable to different projects. The semi-automatic walking mode allows for easy control. The 46L water tank offers excellent blade cooling, and the folding guide wheel helps in achieving straight and accurate cuts. The safety handrail enhances operator stability during use.
| Model | VS-HM501 | Walking mode | Semi-automatic |
| Blade size | 245 (10') mm-500(20')mm | Blade shaft diameter | 50mm |
| Maximum cutting depth | 50mm-170mm | Water tank capacity(L) | 46L |
| Cutting depth adjustment method | Manual screw | Dimensions | 1050mm×530mm×910mm / 41.34inch×20.87inch×35.83inch |
| Engine(maximum power) | Honda GX390 | Weight | 136kgs / 299.83lbs |
Powerful Cutting Solution:
The VANSE VS-HM501, a concrete saw cutting machine, is designed to handle tough cutting tasks. Its Honda GX390 engine provides the necessary power to cut through concrete slabs, floors, and pavements with ease.
Adjustable and Precise:
The cutting depth of this machine can be adjusted between 50mm and 170mm using a manual screw, allowing for precise cutting according to project needs. The folding guide wheel further enhances the accuracy of the cutting process.
Efficient Cooling:
The 46L large-capacity water tank continuously supplies cooling water to the blade, maintaining its performance and extending its lifespan. This is a key feature for long-term and high-intensity cutting operations among concrete cutting machines.
Safety and Ease of Use:
Safety handrails are installed for better stability during operation, and the protective mask reduces noise and debris splash. The semi-automatic walking mode makes it a user-friendly push concrete cutting machine, suitable for both experienced and novice operators.
