What are the construction characteristics of laser leveling machine?

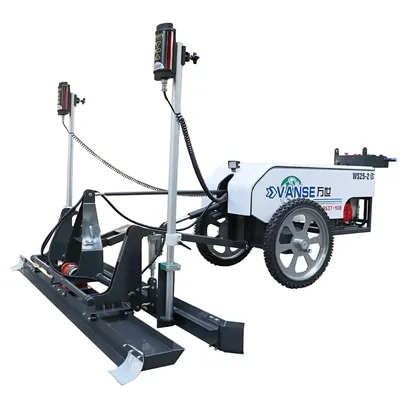

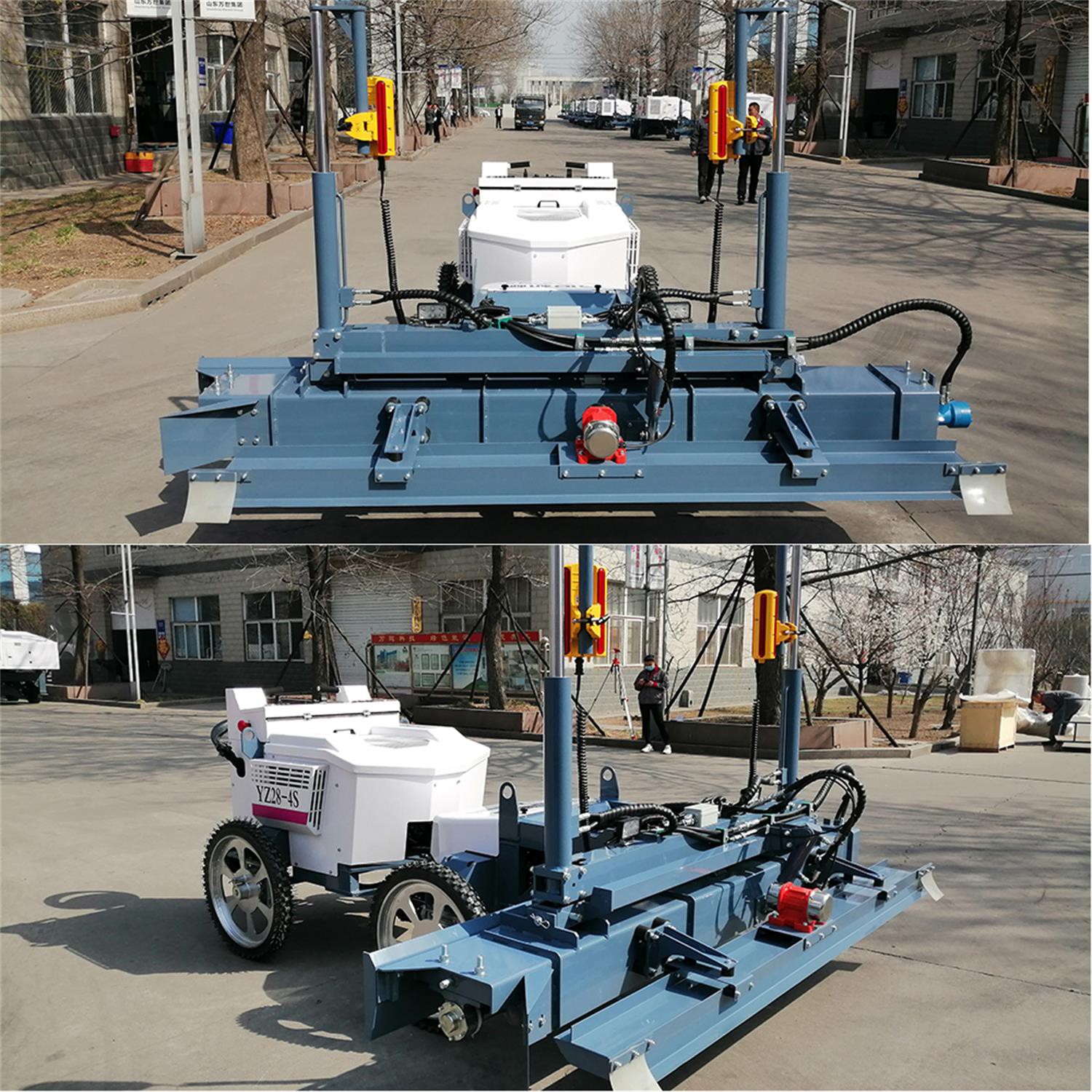

The precision laser leveling machine is developed according to the increasing demand for ground quality such as strength, flatness, levelness, etc. of modern industrial plants, large shopping malls, warehouses and other large-area cement concrete floors. The leveled cement concrete floor is paved with the VANSE precision laser leveling machine, and the quality of the ground paved by conventional methods is much better - the flatness and levelness of the ground are increased by more than 3 times, and the compactness and strength are increased by 20% above.
At the same time, it can also improve work efficiency by more than 50%, and save about 35% of labor. In addition, it can easily place high-strength concrete, low-slump concrete and fiber cement concrete. Its laser system is equipped with a variety of automatic control components to monitor the elevation of the leveling head in real time at a frequency of 10 times per second to ensure that the flatness and levelness of the ground for paving are effectively controlled. At the same time, the vibrating frequency of its powerful vibrator reaches 3000 times/min, which ensures that the concrete is vibrated and compacted, so that the entire paved concrete matrix is homogeneous and dense.
Laser leveling machine features:
The leveling principle of the laser leveling machine is realized under the automatic control of the computer by using precision laser technology, closed-loop control technology and highly precise hydraulic system. This is the most prominent difference between it and other floor construction processes. specialty.
The leveling principle of the precision laser leveling machine is to rely on the leveling head driven by hydraulic power, cooperate with the laser system and the computer control system to complete the leveling work while automatically leveling. The leveling head is equipped with an integrated scraper, vibrator and leveling plate, which integrates all leveling, leveling, vibration and compaction work, and completes it at one time. The computer control system automatically adjusts the elevation 10 times per second in real time, and the vibration frequency of the vibrator with a balanced design reaches 3000 times per minute. The leveling accuracy is 40 extension meters and the control is below 3mm
The laser transmitter used to control the ground level is arranged independently, so that the level of the ground is not controlled by the template, and no cumulative error will occur.
The laser leveling machine can also automatically control the longitudinal and transverse slopes, which is also completed by the laser system, computer system, hydraulic system, and mechanical system. For complex-shaped ground with high requirements such as drainage, a three-dimensional special-shaped ground treatment system can also be selected to achieve it.
The above was introduced by VANSE Machinery, I hope it can help you understand, if you have any questions, you can browse our website more, and you can also communicate with our technical staff.
