DZ20-2 Concrete Laser Screed - Electric Concrete Laser Leveling Machine

DZ20-2 Concrete Laser Screed - Electric Concrete Laser Leveling Machine

DZ20-2 Concrete laser screed High quality and efficiency concrete equipment with automatic laser system control. DZ20-2 is a manual type Concrete Laser Screed, which could not only move more quickly and more efficiently on complex work sites, but also be used on the floor and on single and...

Product Details

DZ20-2 Concrete laser screed

High quality and efficiency concrete equipment with automatic laser system control.



DZ20-2 is a manual type Concrete Laser Screed, which could not only move more quickly and more efficiently on complex work sites, but also be used on the floor and on single and double deck steel bars. Equipped with a new generation of laser systems, the flatness of the ground can reach the laser level accuracy. The utility model can realize large area integral pouring of concrete floors saves formwork and improves work efficiency. The machine operates with an intelligent handle, flexible handling, single person can operate it. The laser transmitter is arranged independently; make sure the ground level is consistent. The integration of the whole crew, the integration of multiple processes, improves efficiency, save labor. The construction area of 350 square meters or more per hour, it could finish above 3500 square meters every day, greatly improve the operation efficiency.


DZ20-2 Concrete Laser Screed Parameter:

Product type

Name

DZ20-2

Type

Two wheel electric concrete laser leveling machine

Engine

Mode

Honda GX200

Type

Electric 220V-50Hz

Power

2.8

Lubrication oil level

0.6-0.8

Fuel tank volume

18

Leveling system

Working mode of screed head

Rocking type

Screed width

2000

Paving mode

Vibrating plate spreading

Paving thickness

50-200

Screw conveyor power



Control mode of vibrating system

Vibration motor

Excitation force



Vibration frequency

50

Laser system

Control mode of laser system

Microcomputer laser scanning

Control effect of laser system

Flat surface、Slope、Double slope(three-dimensional)

Driving system

Drive type

Reducer+Motor

Wheel

Solid puncture proof tyre/Special use wide tire

Speed

0-40

Operation modes

Seat position



Forward,back away

Manual control

Turning

Manual control

Clearning system

Power

Alternator

Theoretical flow

20

Rated pressure

7

Size and weight

Outline dimension

3220*2780*1180

Net weight

400


Concrete Laser Screed Applications:

Indoor Floors such as workshop, plants and warehouses; clean workshop for electronics and appliance, food material warehouses, Medicine factories and warehouses and bulk supermarkets, logistics centers, conference and exhibition centers and etc.

Outdoor Ground such as docks, container yards, storage yards; Airfield runway, landing fields and parking lots; and squares, residential area squares and municipal roads.

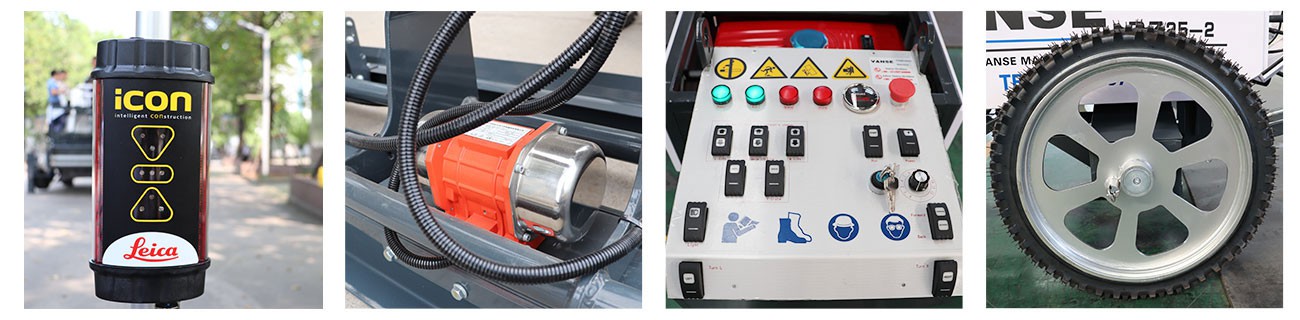

A. High quality

a. Our machine working width has 2m, 2.5m and 3m

b. The laser transmitter brand is Leica from Switzerland. It is the best brand in this industry

c. The walking motor is from Germany

d. The electric elements are all Mitsubishi from Japan

e. The gasoline is Honda brand from Japan

f. The wheels are solid wheels

g. The plug are air plug.

h. The screed is independently suspended. It has automatic induction system, can always keep screed to be flat.

i. Can use gasoline or electric, 2 kinds power source.

j. High accuracy, can reach 300 in 3m.

B. High efficient

It is suitable for large area. Every working team needs 8 workers. They can finish 300㎡ /h.

C. Reduce cost

It has high degree of automation. So it can reduce the cost of plywood, steel frame and workers. Also with high quality of the finished surface, the cost of maintenance is very little.
